delicate 2.4G wireless doorphone for with lock control

Specifications

wireless
photo record
night vision
water proof

doorphone monitor
-Super anti-interference
-Photo-taken and video record
-Remote distance about 300m
-CE/FCC/ROHS

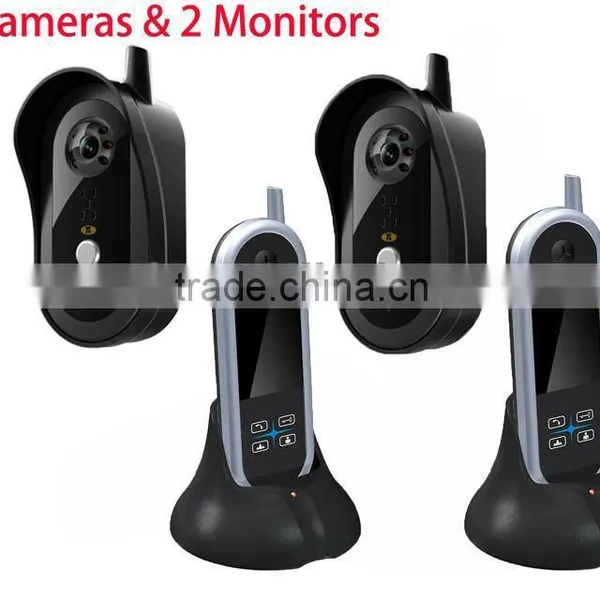

Wireless digital video door phone













1. Auto take photo&recorded



When you are out and someone put the doorbell button without answer, the outdoor unit would take photo and save visitor images in the indoor unit automatically.

When coming back, you can check the handset to see who the visitor is.




2. Auto night vision detection



This point :when the outdoor light is less ,outdoor equipment would open night vision automatic and adjust by itself.





3. Waterproof ,Fashion design



Waterproof function,meet IP44 standard waterproof design .




4. Li-ion battery power supply



Three pieces 1440ma Lithium for use, can be replace to recharge (one for outdoor equipemnt, one for indoor equipment ,the third battery for backup use.)





5.  Unique installing design with patent



Unique installing design for the outdoor unit, you would not worry about to the installing problem. You can install the device by yourself without the professional official.





6. Prevent dismantled setting with alarm



There is an alarm system between the door phone to protect the outdoor unit being dismantled. When someone broken the safety catch from the outdoor, both of the outdoor and the indoor unit will alarm.















-Color box Packing:33*26*10CM ;



-Carton size :67*52*32CM ;



-Unit set Weight :1.85KG/SET;



-Carton Total weight:21.5KG/CTN;



-12 SETS/ctn













Most Feature as follow :















Technology parameter

	Indoor monitor		Outdoor camera		Recharge base
Item	External power	Li-ion battery power	External power	Li-ion battery power	External power
Input power	5V/1000MA	3.7V/1400MA	5V/1000MA	3.7V/1400MA	USB 5V
Shutdown current	200UA		0 MA
Average working current	260MA		340MA
Standby current	4-8MA		15-18MA	0MA
Working voltage	USB 5V	3.7V-4.2V	DC 5V	3.7V-4.2V
Transmission power	18-20dBm		18-20dBm
Receive sensitivity	-100dBm		-100dBm
Charging current	600MA		600MA		200MA
Charging time	3H		3H
Operating temperature	-20°C-70°C		-20°C-70°C		-20°C-70°C
Transmission distance	Audio	Open land about 500M
	Video and audio	Open land about 300M
