3.7v 502030mm 210mah Smallest Lithium Built in Polymer Battery With Connector

3.7v 502030mm 210mah Smallest Lithium Built in Polymer Battery With Connector thumbnail-1
3.7v 502030mm 210mah Smallest Lithium Built in Polymer Battery With Connector photo-1
US$ 0.82 - 2.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
QS
Model Number:
polymer battery
Rechargeable:
Yes
Contact Supplier Request Quote Chat Now
Shenzhen Qi Sheng Xie Neng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QS
Model Number polymer battery
Rechargeable Yes
Use Mobile Phone
Type Standard Battery
Place of Origin Guangdong, China

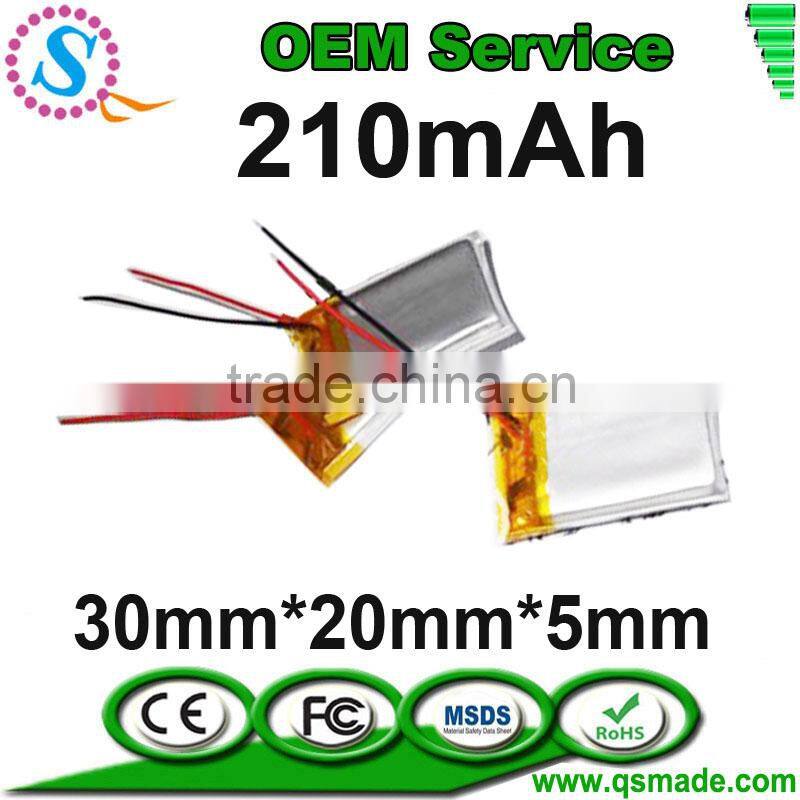

3.7v 502030mm 210mah smallest Lithium built in polymer battery with connector

 MORE MODELS AND WE CAN CUSTOMIZE THE SIZE FOR YOU

Model 502030
Nominal voltage 3.7V
Nominal capacity 210mAh
Size thickness × width × length (mm)
5.0±0.2×20.0±0.5×30.0±0.5mm
Advantage
  • High energy density
  • Safety and reliable(with PCM)
  • Long cycle life
  • no memory
  • Never explosion,stable performance,environment friendly
  • capacity and size could be customized
Max charge current 1C
Charging method charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C
Max discharge current 2C
Discharge cut-off voltage 3v, the over-discharge detection voltage of PCM
Operating environment Charging, 0°C ~ 45°C ; 65±20%RH
Discharging, -20°C~60°C ; 65±20%RH
Storage environment -20°C~45°C
65±20%RH
storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife
(100% Prime Capacity) : 		>500times
Charging Attention Charging current and charging voltage should be less than specified in the Product Specification.
The charger shall be designed to comply with Specification.
It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.





101723-300 301027-45 332532-240 401018-45 402227G-180
101834-550 301027G-45 332532-250 401020-50 402248-400
102033-600 301029-60 333448-500 401020G-50 402332-240
102033H-610 301030-50 334561G-900 401030-90 402425-170
102040-850 301033-70 340923-40 401039-120 402438-350
102055-1150 301215-25 341024P-40 401124-80 402628-240
102143-950 301225-50 341028-60 401132P-100 402730-300
102525-550 301317-40 341028G-55 401135G-100 402742-400
102570-1900 301320-50 341028G-60 401135G-110 402745-480
102573-2000 301421-50 341132-90 401215-35 402827-240
102723-300 301426-75 342834-310 401220-65 402827-250
103045-1400 301520-40 3447109N-1750 401221-70 402844-500
103048-1500 301524-70 351013P-15 401225-85 402844-510
103233-1020 301525-70 351020-35 401225-90 403035-280
103233N-950 301525-75 351020-40 401230-105 403035-380
103434-1050 301533G-100 351020H-45 401230H-105 403035PG-280
103434-1150 301550-185 351039-110 401235H-130 403040-420
103434H-1150 301643-175 351218G-40 401425-100 403048-580
103441-1450 302020-80 351220-52 401425-90 403254-780
103448-1500 302023-80 351230-75 401429-130 403438-470
103450-1800 302222-100 351230G-75 401430-130 404069-1200





 They are parts of our models, if other size. welcome to inquiry

Battery Advantage 3.7v 502030mm 210mah smallest Lithium built in polymer battery with connector


Company Information

Shenzhen Qi Sheng Xie Neng Electronics Co., Ltd   is professional mobile phone battery manufacturer

1.First-class Workshops and Equipments

2.Have our own R&D team and production lines, Hundreds of skilled workers.

3.Products have been exported to Europe, North and South America, Middle East, Africa and so on.

4.10,000 per day of production is sufficient to deal with any orders

We always offer OEM/ODM services with the most flexible customization to meet the demand of each customer,welcome to contact us for Your OEM service.

3.7v 502030mm 210mah smallest Lithium built in polymer battery with connector3.7v 502030mm 210mah smallest Lithium built in polymer battery with connector
