Specifications
30 years professional manufacturing condenser/evaporator experienceROHS,ISO9001.LFGB certificate
Good supplier for Midea
1.30 years professional manufacturing condenser/evaporator experience
2.ROHS,ISO9001.LFGB certificate
3.Good supplier for Midea Refrigerator
4.OEM
Specifications:

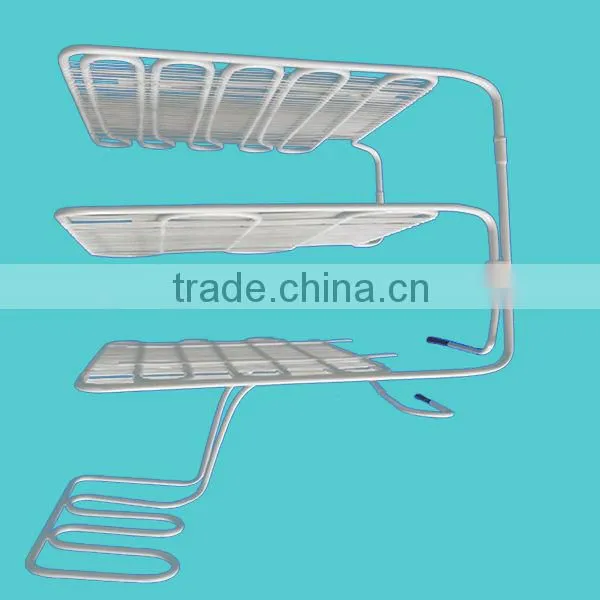

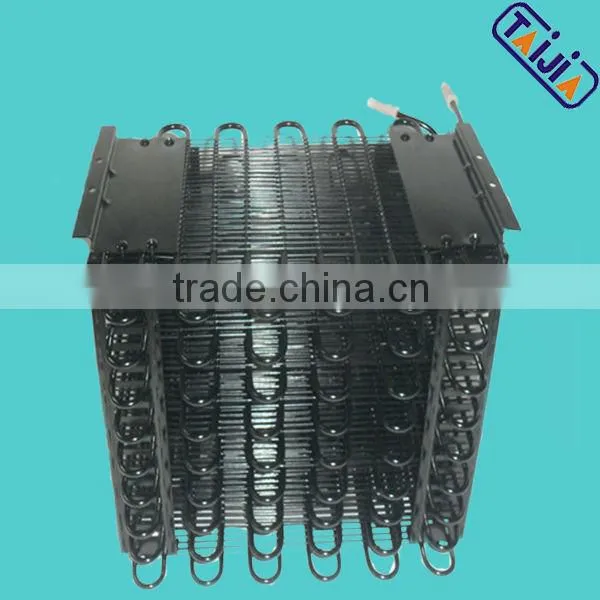

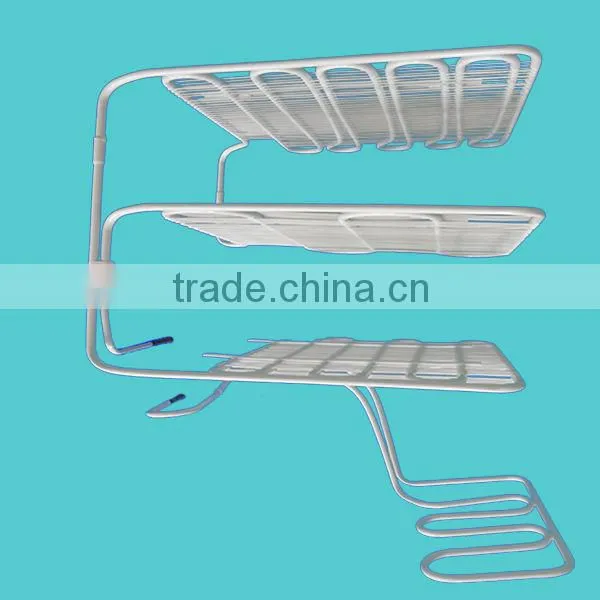

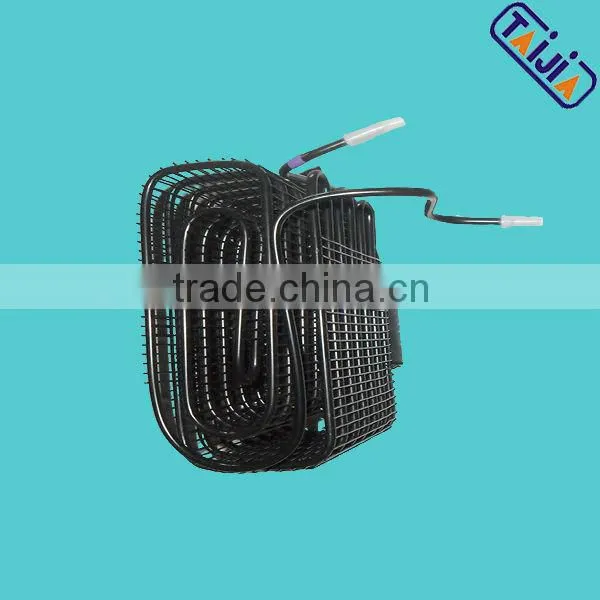

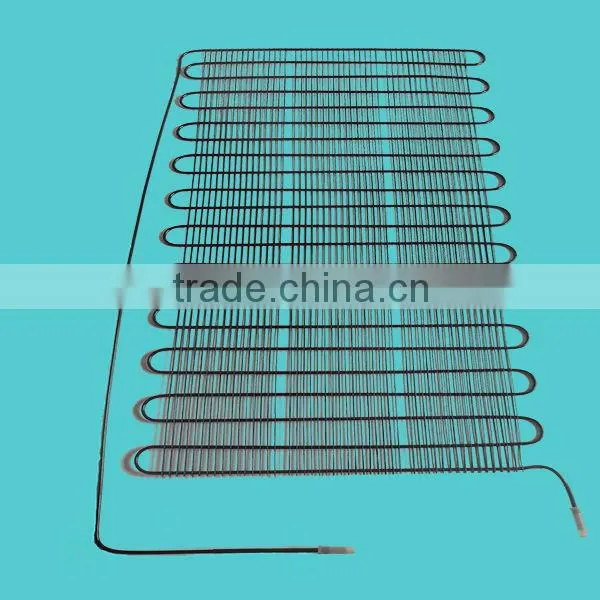

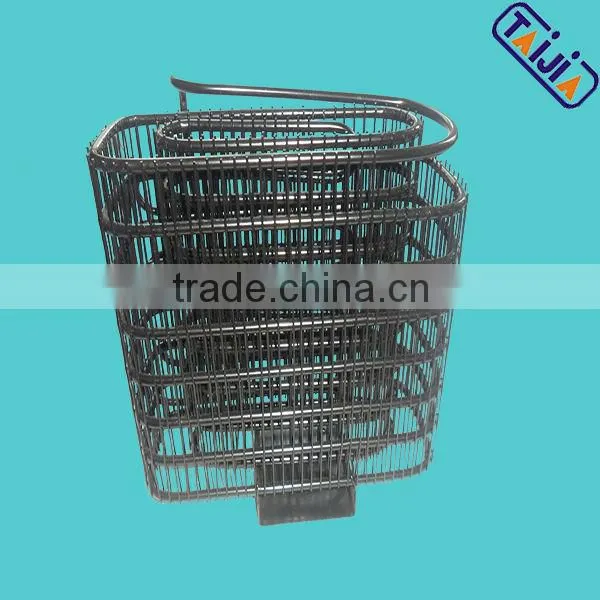

Horizontal Refrigerator Spare Part Wire Tube Evporator
material:Rolling welded steel tube
Surface:Steel wire with copper coated
APPLICATION:Refrigerator /Freezer/Chest freezer/Wine refrigerator/Wine cooler Parts
description as below:
Raw material |
Rolling welded steel tube : Out Diameter 4.76/6/8mm , Wall Thickness 0.6-0.71mm; |
Technical Ablity |
1)The distance of steel wire ≥6mm; 2)Produce according to the drawing or sample supplied by clients; |
performance |
1)Surface treated with powder painting or dip coating to prevent the corrosion 2)Inner cleanness can meet the requirement of R134a &CFC cooling system; 3)Can satisfy the cooling capability requirements; |
R134a Cooling System Tube Inside Standards
Residual Moisture |
≤20 mg/m2 |
Residual Impurity |
≤30 mg/m2 |
Residual Mineral Oil |
≤7 mg/m2 |
Residual Chlorine |
≤0.3 mg/m2 |
Residual Paraffin |
≤0.2 mg/m2 |
Specification of Coating
Coating Thickness |
Thickness of coating 30-100um |
Harness of Coating |
≥2H |
Impact of Coating |
50 kg/cm impact, no crack |
Adhesion of coating |
≥two grade |
Flexibility of Coating |
Around R=3D bend 180, no crack or no fall off |
Color tolerance of Power Painting |
E≤1.5 |
Other informations
Main products |
Category |
Wire tube condenser |
A.Flat type: 1. 6U/7U/8U/11U/12U/14U wire tube condenser 2. 7rows,21rows,23rows wire tube condenser |
B. Monolayer flat wire tube condenser | |
C. Double layer flat wire tube condenser | |
D. Winding type wire tube condenser | |
Wire tube evaporator |
A. Two layer/sheet wire tube condenser |
B.Three layer wire tube condenser | |
C.Four layer wire tube condenser | |
D.Seven layer wire tube condenser | |
Fin Aluminum evaporator |
/ |
Fin Aluminum Condenser |
/ |
Tube plate evaporator |
/ |
Recommended products:
1/4HP WIRE TUBE CONDENSER(1/3HP,1/6HP WIRE TUBE CONDENSER ARE ALSO AVAILABLE )
12U FLAT TYPE WIRE TUBE CONDENSER(11U,23ROWS/8U,17ROWS/10U,21ROWS ARE ALSO AVAILABLE)
WINDING TYPE WIRE TUBE CONDENSER FOR LARGE CAPACITY REFRIGERATOR
REFRIGRATOR PARTS CONDENSER COIL
If you are interested in any type of product, pls contact me without hesitation, I will send you more details.
About us: Taijia--Professional manufacturer for evaporator and condenser
Professional factory: |
Specialized in the production of refrigerator condenser and evaporator in 1984 .We have about 30 years experience in development and practical experience. |
Technology: |
It owns over 50 sets of equipment imported from Italy & Switzerland and more than 10 sets of specialized testing and detecting equipment. |
OEM: |
operate with Aucma, Little Swan, Midea, LG, TCL and other well-know domestic and foreign enterprises. |
Advantages: |
Freon-free, high efficiency and energy saving. |
Production capacity: |
Relying on the advanced equipments and our staff effort, the production capacity has reached 3.5 million sets a year. |
We can produce according to drawings or samples supplied by clients.
Pls feel free to contact us!
