Specifications
ISO9001, ROHS ,LFGB approvedSuperior supplier of Midea
30 years professional manufacturing condenser/evaporator
experience

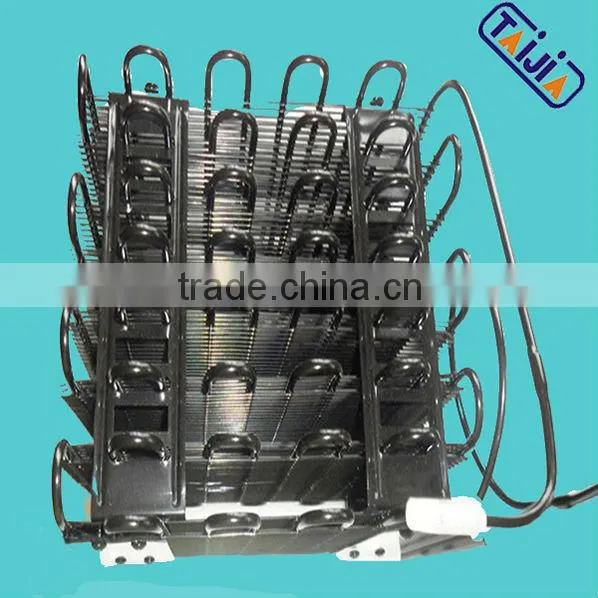

R134a Domestic Refrigerator Parts Condenser
Raw material | Rolling welded steel tube : Out Diameter 8mm , Wall Thickness 0.6-0.71mm; |
Technical Ability | 1)The distance of steel wire ≥6mm; 2)Produce according to the drawing or sample supplied by clients; |
performance | 1)Surface treated with powder painting or dip coating to prevent the corrosion 2)Inner cleanness can meet the requirement of R134a &CFC cooling system; 3)Can satisfy the cooling capability requirements; 4)Producing Capacity: 3000 pieces/Day; |
Production capacity: | Relying on the advanced imported equipment and the unremitting effort of all the staff of the company, the production capacity has reached 3.5 million sets or pieces a year. |
Residual Moisture | ≤20 mg/m2 |
Residual Impurity | ≤30 mg/m2 |
Residual Mineral Oil | ≤7 mg/m2 |
Residual Chlorine | ≤0.3 mg/m2 |
Residual Paraffin | ≤0.2 mg/m2 |
Coating Thickness | Thickness of coating 30-100um |
Harness of Coating | ≥2H |
Impact of Coating | 50 kg/cm impact, no crack |
Adhesion of coating | ≥two grade |
Flexibility of Coating | Around R=3D bend 180, no crack or no fall off |
Color tolerance of Power Painting | E≤1.5 |
Wire tube condenser | A.Flat type: 1. 6U/7U/8U/11U/12U/14U wire tube condenser 2. 17rows,21rows,23rows wire tube condenser |
B. Monolayer flat wire tube condenser | |
C. Double layer flat wire tube condenser | |
D. Winding type wire tube condenser | |
Wire tube evaporator | A. Two layer/sheet wire tube condenser |
B.Three layer wire tube condenser | |
C.Four layer wire tube condenser | |
D.Seven layer wire tube condenser | |
Fin Aluminum evaporator | / |
Fin Aluminum Condenser | / |
Tube plate evaporator | / |
Professional factory: | Specialized in the production of refrigerator condenser and evaporator in 1984 . We have about 30 years experience in development and practical experience. |
Technology: | It owns over 50 sets of equipment imported from Italy and Switzerland and more than 10 sets of specialized testing and detecting equipment. |
OEM: | operate with Aucma, Little Swan, Midea, LG, TCL and other well-know domestic and foreign enterprises. |
Advantages: | Freon-free, high efficiency and energy saving. |
Certificates:
CANTACT:
TEL:+86-716-8390039
MOB:+86-15090741821
SKYPE:Leanne201188
WEB:http://jztaijia.en.china.cn/
PLS feel free to cantact us, we will send you details ASAP. We also can produce according to your samples or drawings.
.
