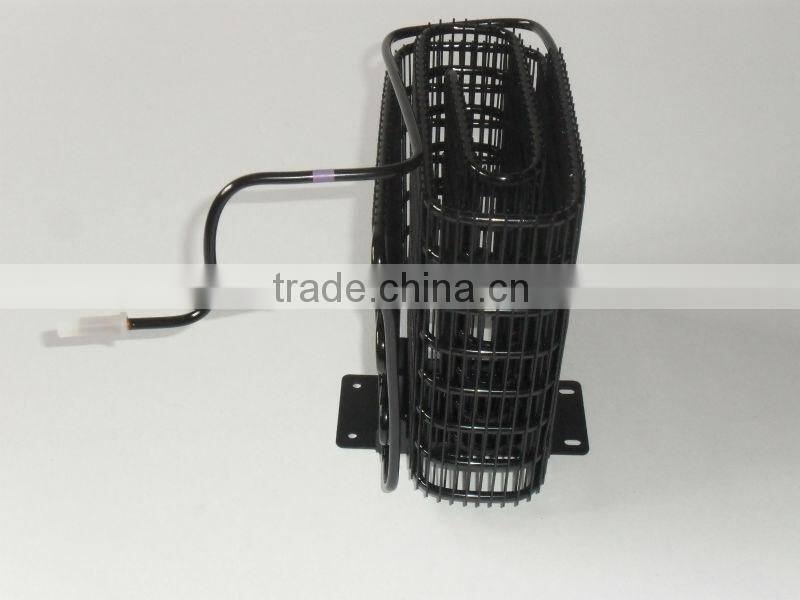

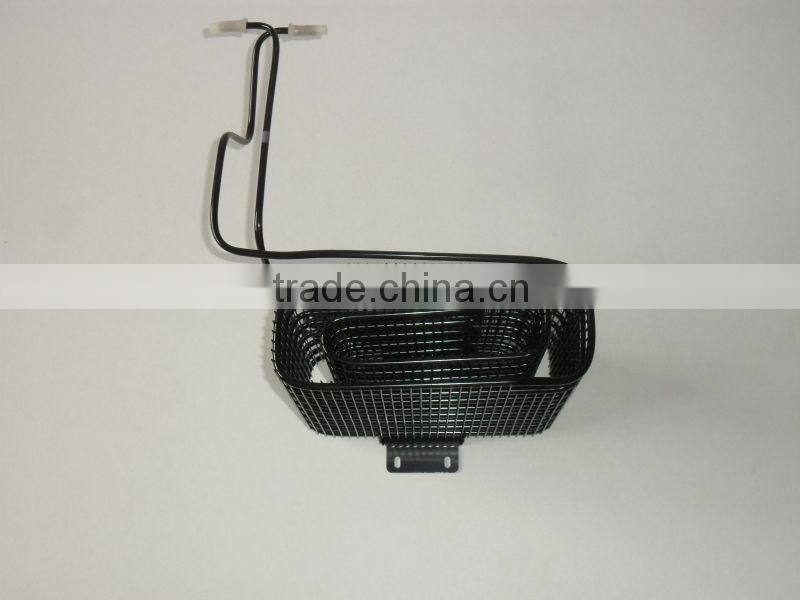

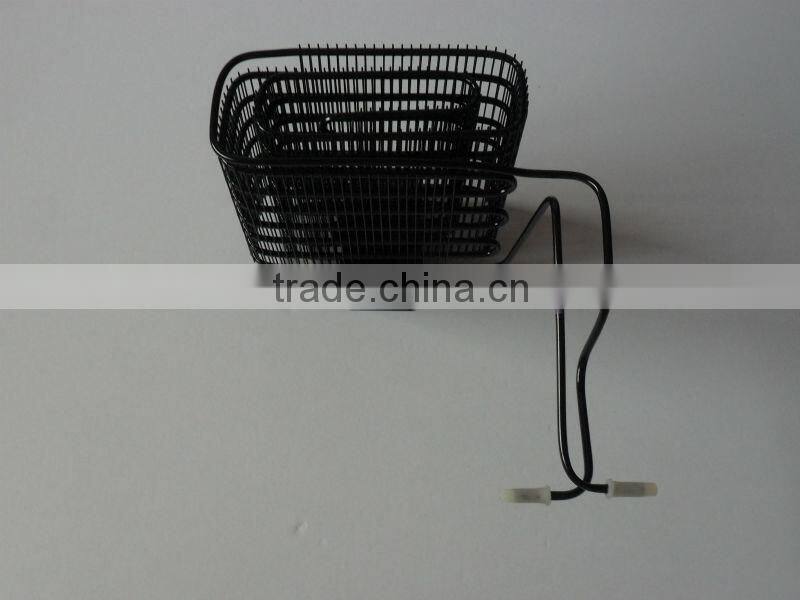

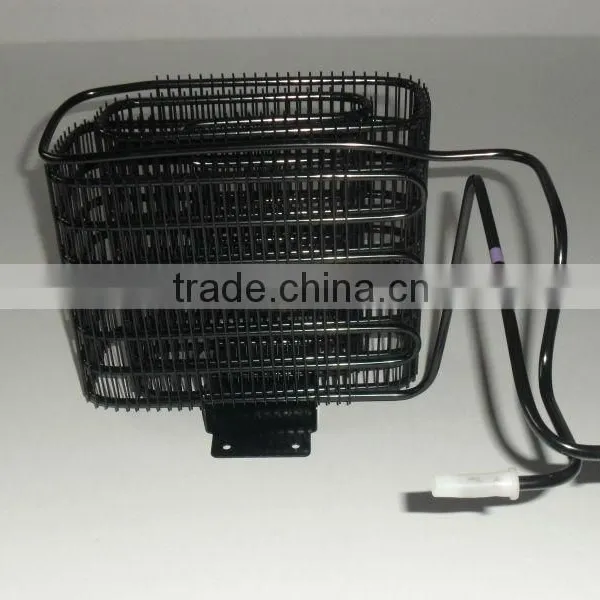

Heat Exchanger wire Condenser

10 or 12pcs to a carton, plastic paper between each product.

Specifications

Galvanized plate

ISO9001, ROHS approved

For refrigerators, freezers, fridges, water dispensers , ice boxes, ice makers.

Efficient cooling

Many types available

Superior supplier of Midea, Aucma, Haier, Little Swan, LG, TCL

We have been specialized in condenser &evaporator for 30 year.

Rich experience and excellent skills.

Heat Exchanger Finned Condenser

Material:

a) Bundy tube (steel tube coated with copper): 4.76 x 0.70mm, 6 x 0.70mm, 6.35 x0.70mm, 8 x 0.70mmb)

b)Steel wire: 1.2-1.6mm (both sides can be  with steel plates and brackets; can be upon your choice)

Key Process:

Steel straightening cut---grinding head--- Coppering, welding ,blow dirty---straightening cut--coil (pipe)---chamfering- - - welding-- eventually bending--- weld tube with-----copper tube straightening and cut- - - expansion, shrinking mouth---tube bending forming---assembly welding- - - leakage check ---- pretreatment ----- electrophoresis paint-----plastic spraying----- blow dirty,blunt the pressure----packing in warehouse

Painting:

Cathode electrophoresis painting (black)

Performance:

Surface with electrophoresis coating to prevent the corrosion.

Structure: bundy tube weld with steel wire.

Delivery/Exportion:

Export standard seaworthy carton /carton+pallet /wooden boxes

Please feel free if there is anything else we can do for you.

We can supply our products according your samples /drawings.

Technical ability:

Wire pitch≥5mm

We can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different condenser. Please send us the drawings or samples, we will send our competitive prices for your reference immediately. We could produce according to drawing or samples.

Main products of Taijia:

Wire tube condensers

Wire tube evaporators

Finned condenser

Finned evaporators

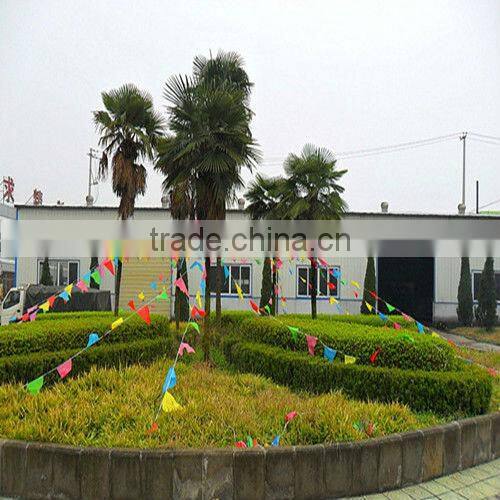

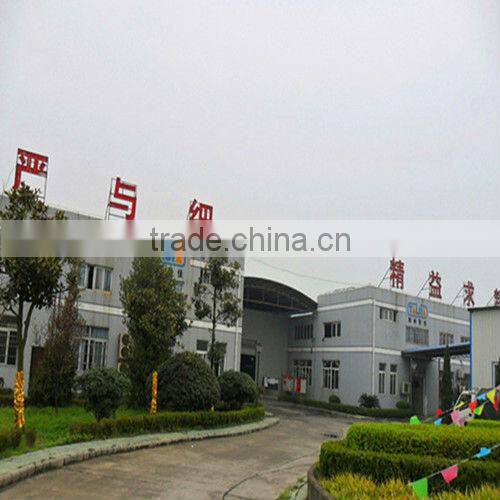

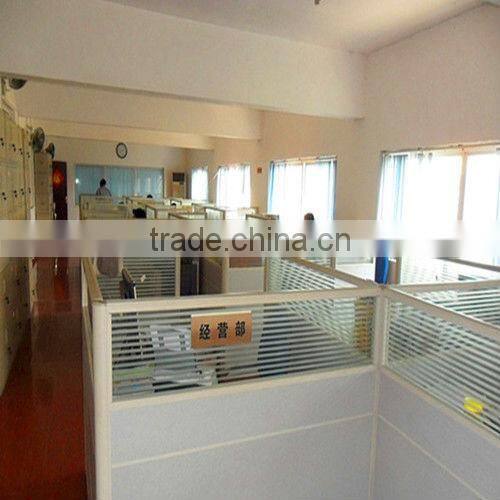

Company images:

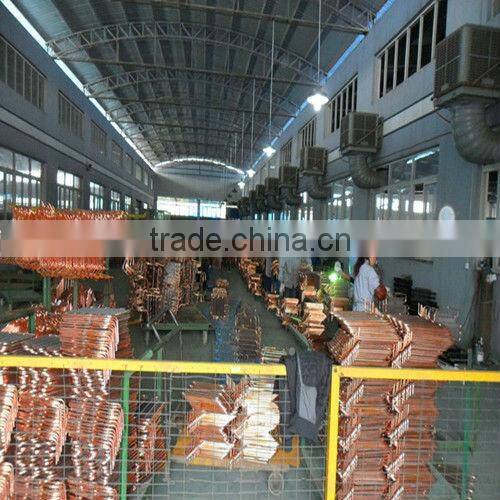

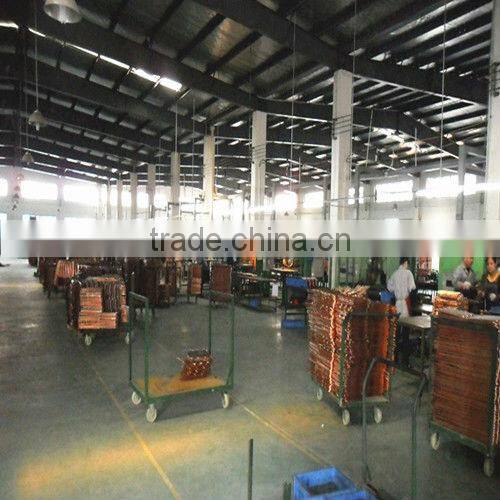

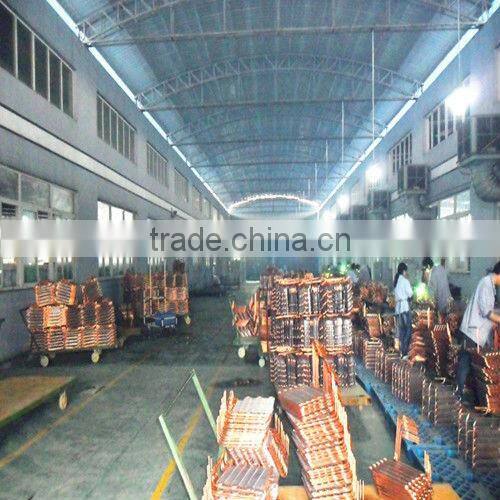

  Production line:

Main products:

Main clients:

Cooperated countries:

  Welcome to make an inquiry!
