Home > Products > C8 AC Socket > 88-18A3BOOL-P13 new style useful electric wireless receptacle
88-18A3BOOL-P13 new style useful electric wireless receptacle
- 100000 Piece / Pieces per Month
- SHENZHEN GUANGZHOU SHANGHAI NINGBO
- T/T Credit Card PayPal
-
4holes RCA jack AV socket
-
AV socket AV6 double-six-hole socket RCA jack video with metal
-
Good quality single socket RCA as AV connector
-
4 holes jack socket RCA as AV connector
-
Bluetooth 4.0 Wireless Anti lost alarm with Bluetooth Remote control for iPhone Samsung smartphone
-
KDC-A04 Power Switch 4pin
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | HUACONN | Model Number: | 88-18A3BOOL-P13 |
| Type: | Plug with Socket | Grounding: | Non-Grounding | Rated Voltage: | 250V |
| Rated Current: | 8A | Application: | Industrial |
Product Description
88-18A3BOOL-P13 new style useful electric wireless receptacle
Specification for electric wireless receptacle
Rating | 6A 250V &8A 125V(UL,cUL) 2.5A 250V(VDE KC) |
Standards | UL498,IEC60320,GB17465 |
Initial contact resistance | 30mΩ max |
Insulation resistance | 100MΩ(min)for DC 500V |
Withstand voltage | 2000VAC for terminal to terminal 1 minute |
RoHS | HF(free-halogen) |
Working temperature | ≤105℃ |
Housing | PA66,PBT,PC |
Terminals | Tin-plated brass |

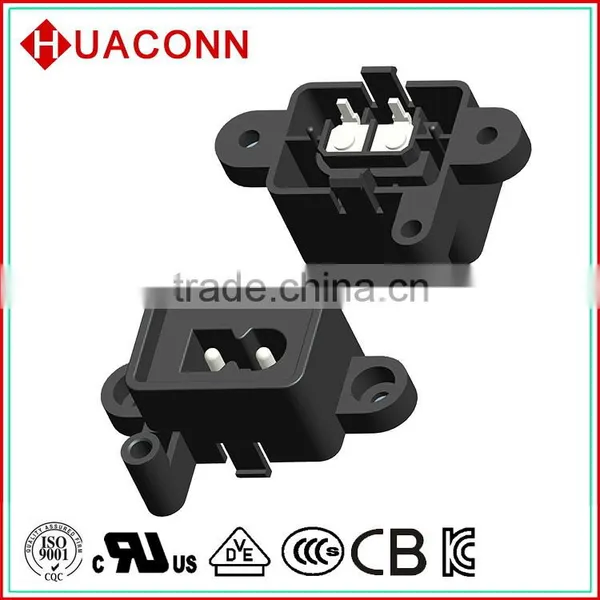

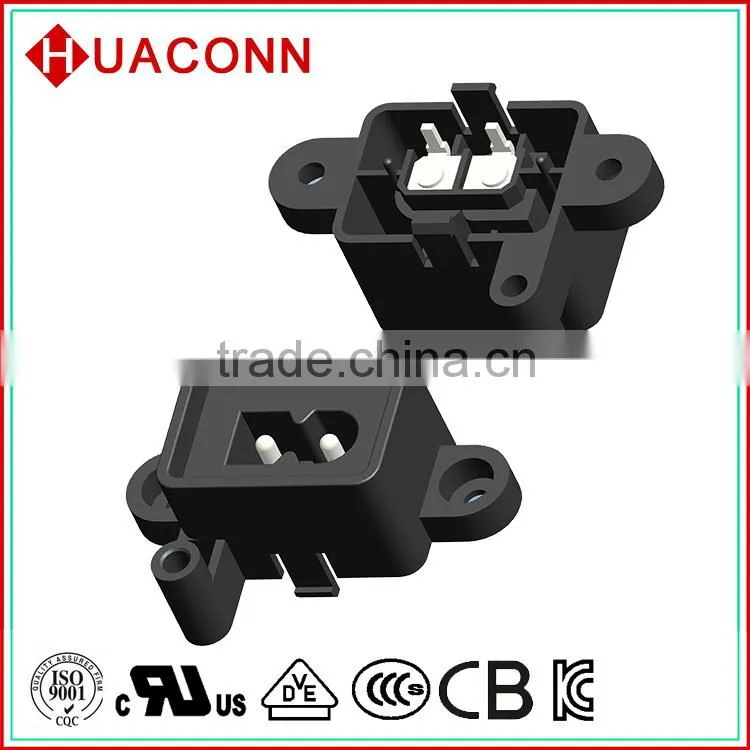

Picture of electric wireless receptacle
Certificates: UL VDE KC CB RoHS CCC
All of our products are UL VDE KC CE CB RoHS CCC approved.
As a manufacturer in the field of manufacturing AC sockets, AC Inlet, receptacles and rocker switches, we can design the items as requirements. It is available for us send samples for testing at any time.
Please contact us to get the drawing of our items by email, thanks!
electric wireless receptacle
