99-05C0B00-P04P11 Customized Manufacture Iec C14 ac Inlet Socket
- SHENZHEN GUANGZHOU SHANGHAI NINGBO
- T/T Credit Card PayPal
You May Like
-
99-01A0BIO-S02S02(1) Quality New Arrival ac Power Plug Sockets Film Warehouse
-
99-05C0B00-PO1PO8 Super Quality Most Popular Electrical Receptacle Socket
-
99-05C0B00-P04P08 Contemporary Durable Receptacle for European
-
99-07B0B00-P07P07 Cheap Cheapest Din Receptacle Connector
-
99-07B0B00-P07P07 Bottom Price Durable Standard Duplex Receptacle
-
99-01A0BIO-S01PO8 Contemporary Hot-sale ac Socket Line Choke Filter
Product Details
| Place of Origin | Guangdong, China | Brand Name | HUACONN | |
| Model Number | 99-05C0B00-P04P11 | Type | Plug with Socket | |
| Grounding | Standard Grounding | Rated Voltage | 250V | |
| Rated Current | 16A | Application | Industrial |
Product Description
99-05C0B00-P04P11 customized manufacture iec c14 ac inlet socket
Specification for iec c14 ac inlet socket
Rating | 16A 250V &16A 125V( UL ) 10A 250V(VDE KC) |
Standards | UL498,IEC60320,GB17465 |
Initial contact resistance | 30mΩ max |
Insulation resistance | 100MΩ(min)for DC 500V |
Withstand voltage | 2000VAC for terminal to terminal 1 minute |
RoHS | HF(free-halogen) |
Working temperature | ≤105℃ |
Housing | PA66,PBT,PC |
Terminals | Tin-plated brass |

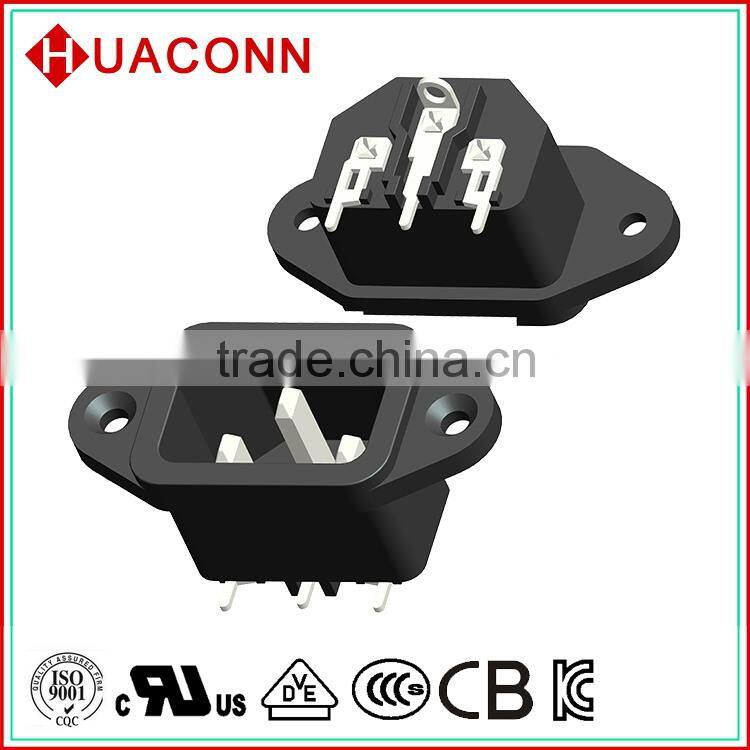

Picture of iec c14 ac inlet socket
Certificates: UL VDE KC CB RoHS CCC
All of our products are UL VDE KC CE CB RoHS CCC approved.
As a manufacturer in the field of manufacturing AC sockets, AC Inlet, receptacles and rocker switches, we can design the items as requirements. It is available for us send samples for testing at any time.
Please contact us to get the drawing of our items by email, thanks!
iec c14 ac inlet socket
