RoHs PC Type Toggle Switch Name Plate

Specifications

Packing & Delivery

Packing: standard exporting packaging  or  according to customer's request

Delivery detail: 7 days after payment or it depands on the quantity

You can contact our sale department for more details.

Description

Toggle Switch

High capacity, long life, feel comfortable advantages.

Charactors

1.Enriched specifications rated current

   Current specification: 3 - 15 A

   Max on off capacity:15A 250VAC

2.Long life

   Mechanical life: ≥ 500,000 times.

   Electrical life: ≥ 1,000,000 times.

3.Convenient operation

   Operation handle only 4.2Nm torque.

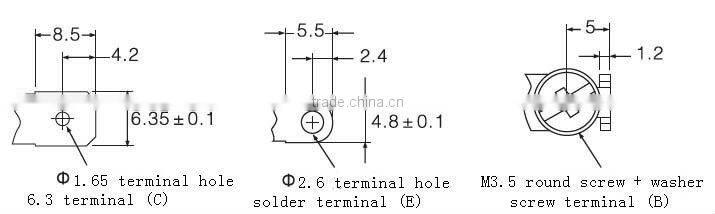

4.Terminal specification complete

5.Operation and contact type

    (for example 15A)

Diagram
