Help CenterRotary Switch 2 or 3 Position Selector Switch XB2-BD
Related Products
-
Push Button Switch 22MM Green XB7NegotiableMOQ: 10 Pieces -
Push Button Switch 22MM Green XB7 Flat With Lock ButtonNegotiableMOQ: 10 Pieces
-
Push Button Switch 22MM Green XB7with LEDNegotiableMOQ: 10 Pieces
-
Turn to Release Switch Waterproof Head White XB2-BA1CNegotiableMOQ: 10 Pieces
-
Momentary Push Button Switch Waterproof Head Black XB2-BA2CNegotiableMOQ: 10 Pieces
Packing & Delivery
Packing: standard exporting packaging or according to customer's request
Delivery detail: 7 days after payment or it depands on the quantity
You can contact our sale department for more details.
Description
Technical Parameters
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 |
|||
Environment Features
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
Contact Features
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
Elucidation
| Elucidation | Contact Type | Reference | ||
| 2 choice | |
1NO | B2-BD21 | |
| button switch | 1NO+1NC | B2-BD25 | ||
|
|
1NO | B2-BD41 | ||
| 1NO+1NC | B2-BD45 | |||
| 2NO | B2-BD33 | |||
| 3 choice | 2NO | B2-BD53 | ||
| button switch | 2NO | B2-BD73 | ||

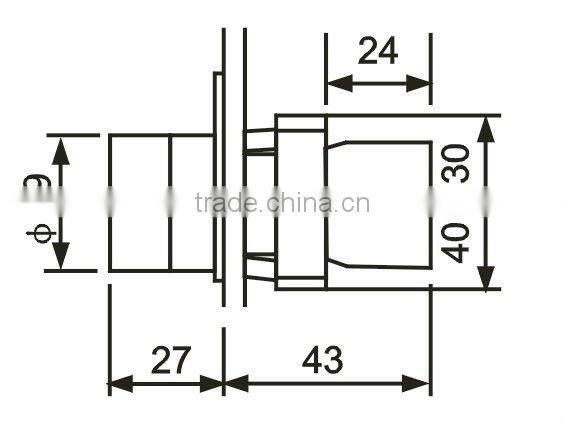

Diagram
Trait
|
1 The finger of comfort press to press | |||||
| position and switch to turn peration | ||||||
| 2 The function identify | ||||||
| 3 The auto aonnect ground | ||||||
| 4 Defend the finger get an electric | ||||||
| shock a design | ||||||
| Plate chrome metals a head and install a base | ||||||
| The quakeproof bolt carry son | ||||||
| Hard ,credibility ,as long as | ||||||
| 3000000time machine life span | ||||||
| As long as 50000 hours of the service life | ||||||
| of the LED indicator | ||||||
|
||||||
| Button head -touch some base a construction | ||||||
| The button head hold antomatic is in open the | ||||||
| bore | ||||||
| The button head revolve certain angle,card go | ||||||
| into touch some base | ||||||
| 2metal bolt fix quake proof | ||||||
| The anto connect ground | ||||||
| The open type connect line to carry and have | ||||||
| never need to prepare loose bolt | ||||||
| Electricity function | ||||||
| Most can pack 1-6 pay to touch some mold piece | ||||||
