high quality pricision spring probe pogo pin manufacturer
- 99999 Piece / Pieces per Month
- Shenzhen HK
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM pogo pin | Model Number: | JHX |
Type: | MMCX | Application: | Power | Gender: | Male |
Product Description
Shenzhen JIA HUA XiNG METAL MANUDACTORY (HK)Co, TLD
is specialized in manufacturing many kinds of POGO PINS PCB connectors, including pogo pin connector,probe pin,female and male headers, cables, IC socket and other components such as piston rings, stamping die/parts, mold/mould/die/progressive die, turning parts/lathe parts since we founded in 2002.
"High standards of quality, competitive price, accurate and timely delivery, warm and thoughtful service" is our business objective!
We can also customize pogo pin to different specifications that our customers requirement.
We are able to produce spring probe pogo pin with high quality,low price, prompt delivery and excellent service.
We will ensure the product warranty for our customers
Our pogo pin connector have a good reputation in USA market.
10 year manufacturing experience and high technology protect your interest !!!
Material | |
Barrel: | Brass C3604 |
Plunger: | Brass C3604 |
Spring: | SWP |
Plating | |
Barrel: | 5u’’AU over 50-80u’’Ni |
Plunger: | 5u’’AU over 50-80u’’Ni |
Spring: | 5u’’AU over 50-80u’’Ni |
Electrical | |
Rated Voltage & Current: | DC 12V;1-5A |
Contact Resistance: | 50 mohm Max.at working height |
Mechanical | |
Force: | 110g±20% at working stroke |
Full stroke: | 3.50mm |
Durability: | 10000 cycles(min) |
| |
Shape: | As your drawing |
Diameter: | 0.5-3.6mm |
Length: | 3.5-18.0mm |
Finish: | Au over nickel |
Tolerance: | ± 0.01mm |
Certificates: | TS16949,ISO1400,ISO9000,ISO2008 |
high quality pricision spring probe pogo pin manufacturer,below is the date for reference
1, Products pictures

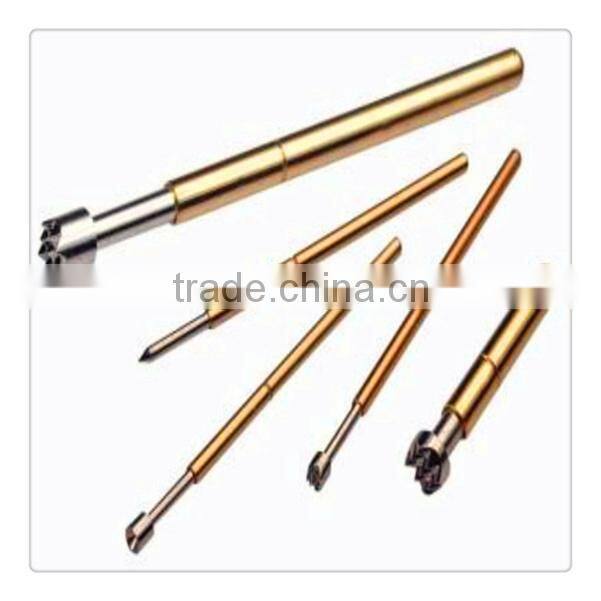

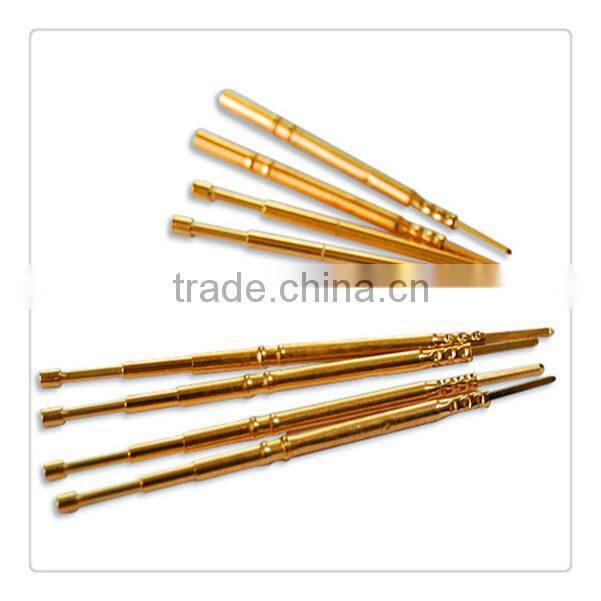

probe pin:

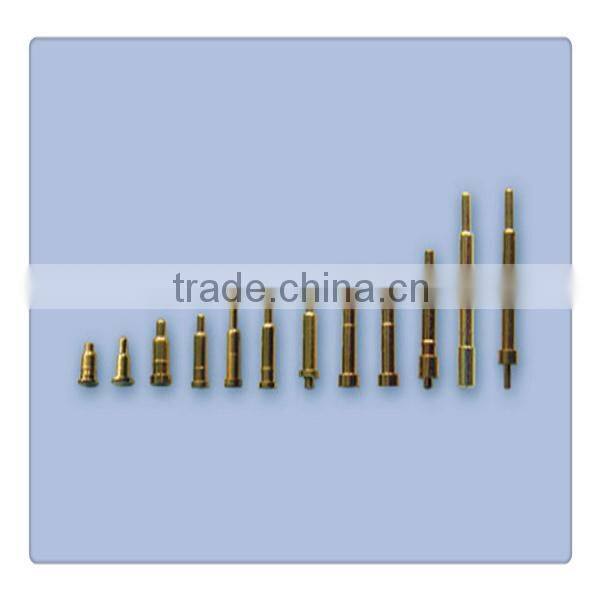

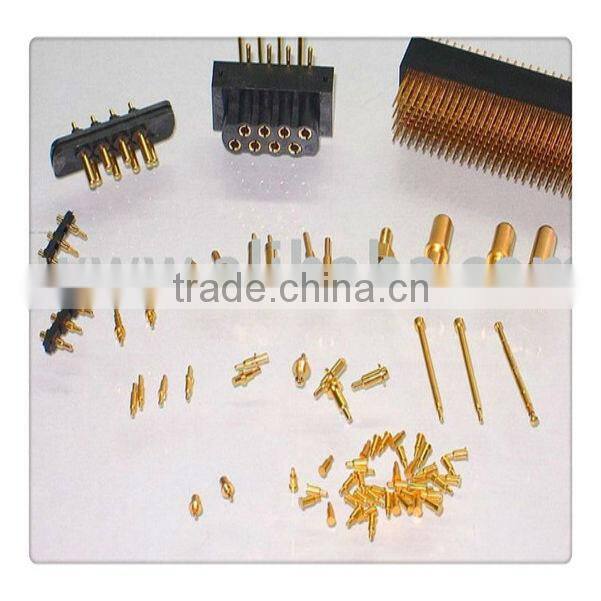

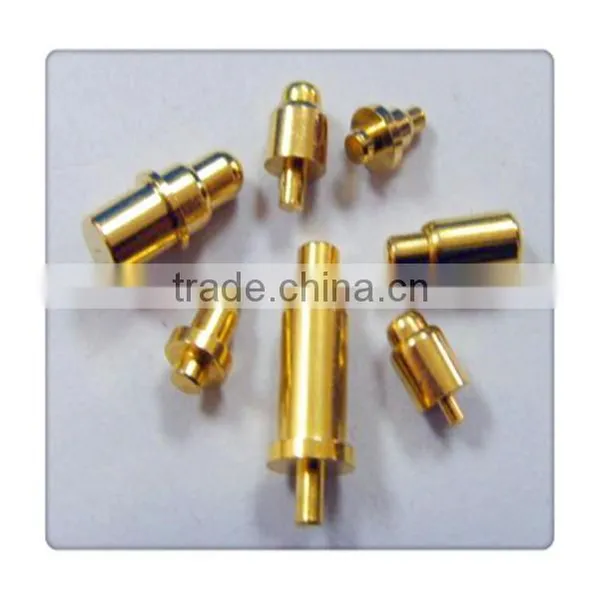

pogo pin:
2, Factory
3, Certificates
2013 high quality pricision spring probe pogo pin manufacturer
Production Name: spring probe pogo pin
1). Our company is able to producing most kinds of pogo pins
2). We provide engineer assistance to help your spring probe pogo pin more perfect .
3). The raw material will be tested its heavy element per batch by authority testing company, we can offer the test report to you depending on your requirement.
4). Surface coating of spring probe pogo pin : nickel, silver, gold etc.
5). We can offer test report of heavy element for our product per batch to you depend on your requirement.
6). we stick to the sincerity first and client is the most important. Please feel free to contact us. Let's begin a wonderful cooperation and common development with each other.
Our services: | |
1. | Your inquiry related to our products or prices will be replied in 24hours. |
2. | Well-trained and experienced staffs to answer all your enquires in fluent English. |
3. | OEM & ODM are welcomed, OEM brand is available. |
4. | some our current sample can be free offered. |
5. | Protection of your sales area, ideas of design and all your private informaton |
contact way :
1, Skype: garywei3206
2, TEL: 086 0755-84067789
3, FAX: 0755-84067779
gary is on the service for you for 24 hours
