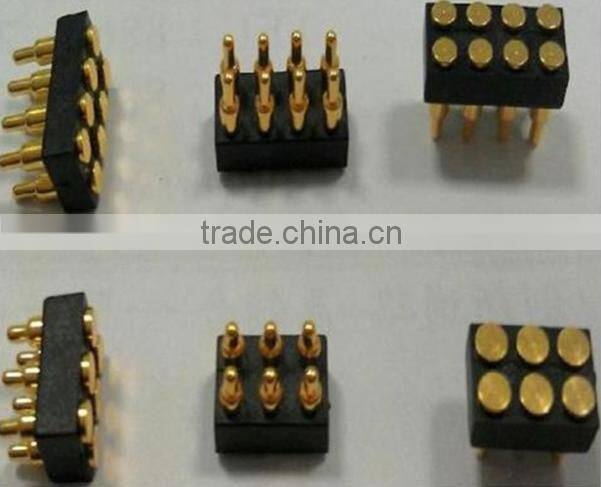

Custom5mm length spring loaded pogo pin with gold plated
Shenzhen JIA HUA XiNG METAL MANUDACTORY (HK)Co, TLD is specialized in manufacturing many kinds of pogo pin connectors, including 6 pin pogo/8 pin pogo(2 rows,4 each row),probe pin,female and male headers, cables, IC socket and other components such as stamping die/mold/mould,stamping part,turning parts/lathe parts since we founded in 2002.
1. Function of the spring loaded pogo pin :
Our products can be used for battery connector,pcb,power,audio,automotive.
2.Feature of the spring loaded pogo pin:
Can afford high spring force and 3 mm length min.
3.Quality of the spring loaded pogo pin :
It's gold plated over nickel,12 V voltage and Current flows up to 5 A, 50 Mohm max resistance and 10000 cycles life time.
4.Advantage of the spring loaded pogo pin:
We own two factories with roughly 300 staffs so we can also customize pogo pin connector according to different specifications that our customers requirement.
We are able to produce new spring loaded pogo pin with high quality,low price, prompt delivery and excellent service.
Our products have an excellent reputation in USA and Europ markets
10 years' experiences and high technology protect your interest !!!
Please see the form below:
Material | |
Barrel: |
Brass C3604 |
Plunger: |
Brass C3604 |
Spring: |
SWP |
Plating | |
Barrel: |
5u’’AU over 50-80u’’Ni |
Plunger: |
5u’’AU over 50-80u’’Ni |
Spring: |
5u’’AU over 50-80u’’Ni |
Electrical | |
Rated Voltage & Current: |
DC 12V;1-5A |
Contact Resistance: |
50 mohm Max.at working height |
Mechanical | |
Force: |
110g±20% at working stroke |
Full stroke: |
3.50mm |
Durability: |
10000 cycles(min) |
| |
Shape: |
As your drawing |
Diameter: |
0.5-2.6mm |
Length: |
3.5-20.0mm |
Finish: |
Au over nickel |
Tolerance: |
± 0.01mm |
Certificates: |
TS16949,ISO1400,ISO9000,ISO2008 |
1.products

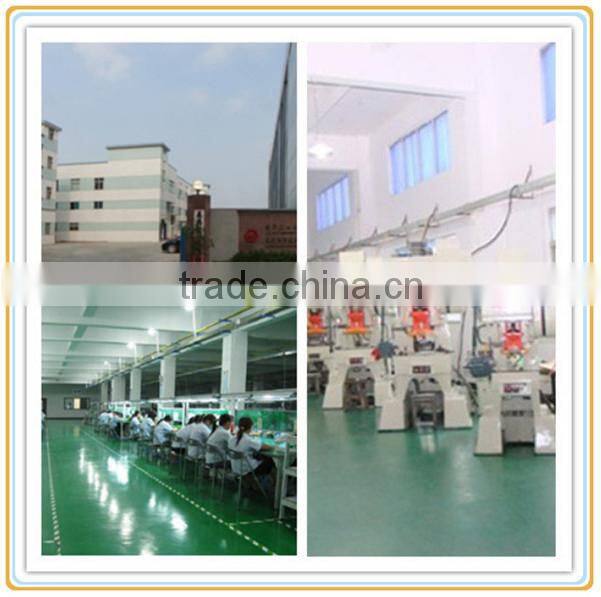

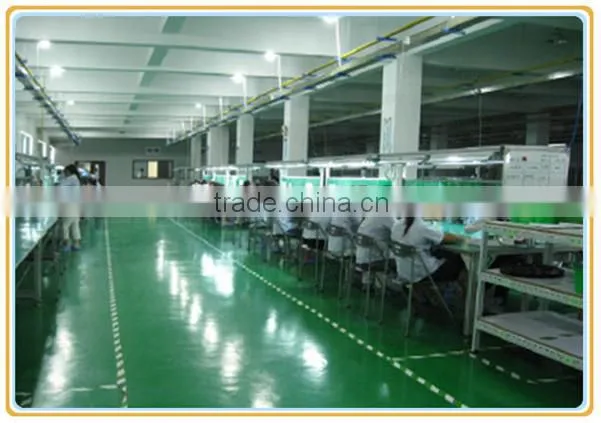

2, Factory
3, Certificates
4.Cooperate partner:
We would like to produce the 5mm length spring loaded pogo pin with gold plated,welcom to visit our plant.
Why choose us: | |
1. |
Certificate: ISO9001:2008, ROHS,BV,reach |
2. |
Packing: standard export package or negotiate |
3. |
We can allow you a discount if you want a bulk order. |
4. |
we can design and manufacture the products according to the specification, drawing or samples. |
5. |
We are able to produce products with high quality, low price, prompt delivery and excellent service. |
6. |
we are a company who is professional in trading and manufacturing products |
Ways to contact us:
1, Skype: garywei3206
2, TEL: 86 0755-84067789
3, FAX: 0755-89711769
gary is on the service for you for 24 hours ````
