Home > Products > pogo pin connector > JHX high Precision gold plated brass connector pogo Pin

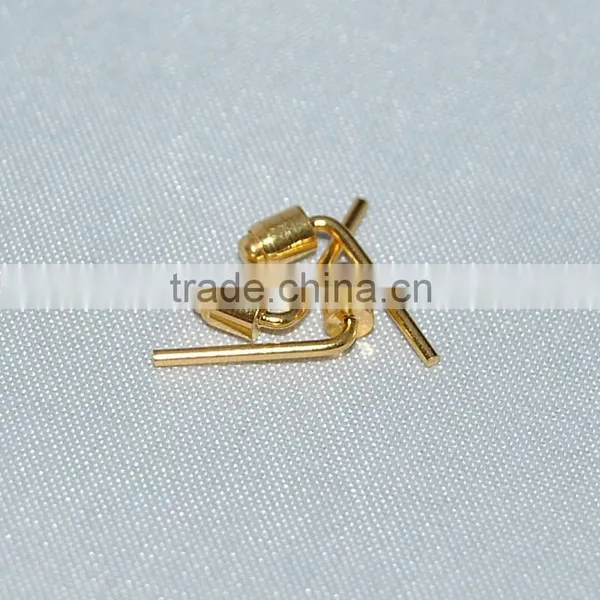

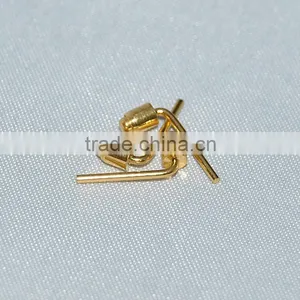

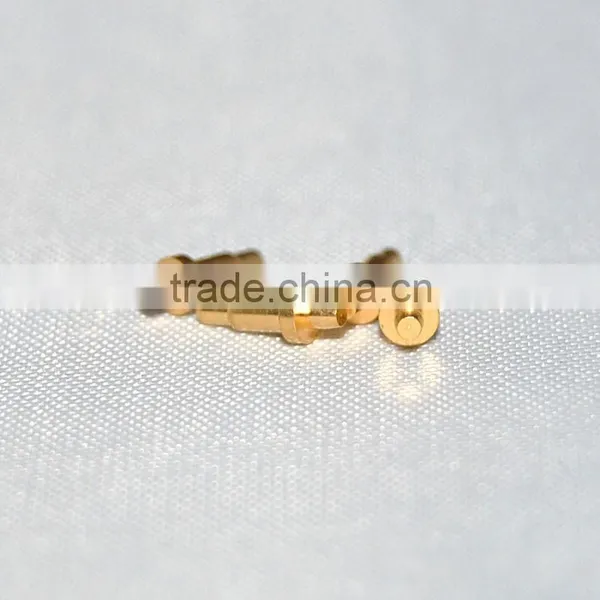

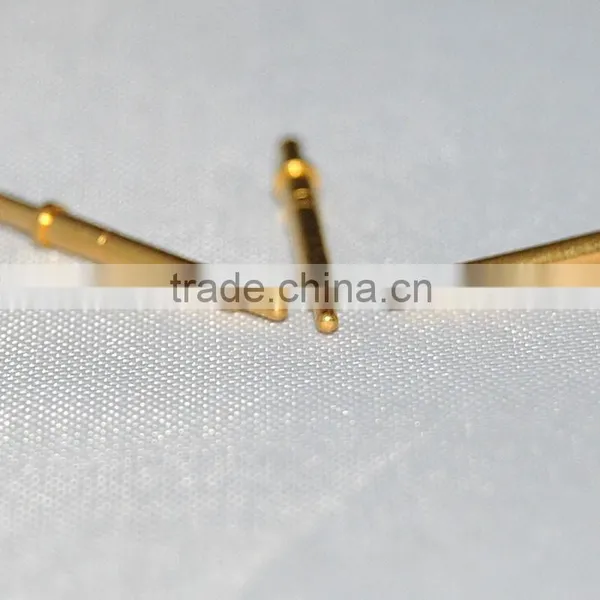

JHX high Precision gold plated brass connector pogo Pin
- 10000 Piece / Pieces per Month
- shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JHX | Model Number: | JHX262 |
Type: | DIN | Application: | Other, phone,computer,audio,other electrical products | Gender: | Other, pogo pin connector |
Product Description
Material/Gold | |
Barrel | Brass C3604 |
Plunger | Brass C3604 |
Spring | SUS304 |
Plating | |
Barrel | 5u’’AU over 50-80 u’’Ni |
Plunger | 5u’’AU over 50-80 u’’Ni |
Spring | 5u’’AU over 50-80 u’’Ni |
Electrical | |
Rated voltage & current | DC 5V-12V,5A-10A |
Contact resistance | 50mohm max.at working height |
Mechanical | |
Force | 110g±20% at working stroke |
Full stroke | 3.50mm |
Durability | 10,000 cycles(min) |
1.Material for plugger and body: Brass Alloy C36000 ,
Spring material: Stainless Steel Wire
2.Surface Plating: Gold plated 3mirco inch over Nickle
3.Produce by: CNC Auto Lathe Machine
4.Sample leadtime: 5~8days
5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge
6.Package: 5k~10k per bag or tape package with cover
Electronic:
a. Current rating: 1A-10A
b.Spring force:80~150g,can make according client requirement
c. Life cycles: 10000 max
d.Contact Resistance:30m Ohm
Professional company in developing, production and sales in
- Receptacle Pins
- Printed Circuit Pins
- Knurled Pins
- Spring loaded Pins
- Machined pins
Flat SMT Type:Stable quality. The bottom of barrel is designed as flat shape,
1.Jia Hua Xing Metal Manufactory Co.,Ltd.is a company of professional design,manufacturing,sales of electronic products and assembly,testing equipment in one high-tech enterprises.With professional production of stamping part,precision springs pogo pin, and a variety of computer hardware,auto parts,our products are widely used in various types of audio,headset,camera,home appliance airplane cars photocopiers and other electrical products.
2. Jia Hua Xing Metal Manufactory Co.,Ltd. is professional technical team and rich experience in the operation of the staff,to ensure quality stability and reliability of products,the accuracy of the product in between 0.01-0.02mm,which has won us a number of world famous enterprises(such as:apple,Samsung,Lenovo,ABB,Microsoft FOSTER MEERY FOXLINK ) satisfaction and trust.
Clients
3.Jia Hua Xing Metal Manufactory Co.,Ltd'factory
With 12 years experience in production high precision metal stamping part, precision springs pogo pin, and a variety of computer hardware,auto parts.
1)We possess a whole set of CNC manufacturing and testing equipments ranging from wire tensile strength tester,shot peening machine,deburring machine,magnetic powered flaw detector,to compression tester.This enables us meet the customers' different demands.
2)We have a total of IQC and IPQC more than 20 people.That makes our produce more guaranteed product quality,to a greater degree of producing customers need products.
3)Custom can provide samples,details of requests or drawing picture,by which our engineer draft the drawing or to help customers improve the drawings picture,then do meke an order by it.
Package
»usual packing:paprer carton, pp bags
» depends on your quantity
»as your requirement
Shipping
«We often use UPS/DHL/TNT,of course,you can choose your favorite express delivery ways.
« Shipping freight are quoted under your requires
Q:In which areas are the Jia Hua Xing products widely used?
A:Our products are widely used in various types of audio,headset,camera,home appliance airplane cars photocopiers and other electrical products.
Q:Can I customized products from your company?
A: We have to determine whether the production according to your drawings provided.
Q:Could you give me a delivery?
A:Since your order confirmation,under the condition of without mould,it usually takes 12 working days of production or based on confirmed quantity.
Q:Why is the final confirmation price different from the product quote
A:Send your drawing or requirements to us,in order to accurate quote
Notice:
1.Difference specifications have difference prices,please feel free to contact with us if you have any requirement
2.Any import fees or charges are the buyer's responsibility
Any sample fee and import and export fees are the buyer's responsibility
3.We are not responsible for the accidents,delays or other issues which belong to the shipping service.
4.All parts are not in stock,customization only——send your drawing, basic material description,use,and provide the exact dimensions for better evaluation
contact method:
Skype:jack,zhi
tel:86-0755-84067789
phone number:13802704662
email:sales 01@
