Specifications

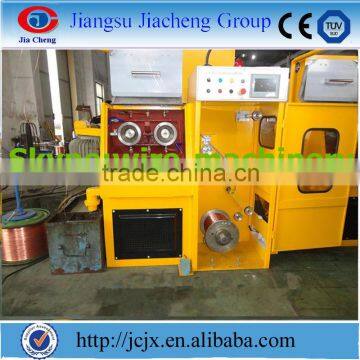

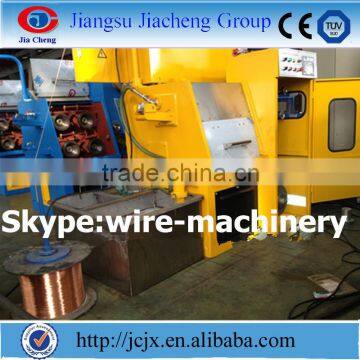

CCA wire drawing machine1,double inverter control
2, making wire from 1.17 to 0.1-0.4 mm
3, with CE ISO TUV
aluminum wire drawing machine is used for drawing fine copper wire from 0.6-1.2mm to 0.10-0.40mm.
Technical parameter:
Machine type | JCJX-28D |
Control system | Traditional analog type |
Inverter control | Dual Inverter control |
Drawing dies No./Max. | 28 |
Inlet diameter | Ø 0.60- Ø 1.20mm |
Outlet diameter | Ø 0.10- Ø 0.40mm |
Drawing line speed | 2500m/min |
Slip ratio of m/c | 13% |
Fix speed capstan slip ratio | 8% |
Frame | Ironed cast |

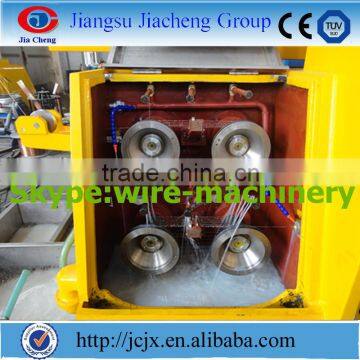

Capstan | Ceramic plasma capstan |
Main motor | 7.5KW |
Spooler motor | 2.2KW |

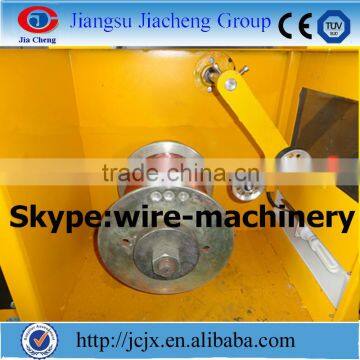

Spool bobbin size | Φ300mm or according to customers requirements |
Max .loading capacity | 50KG |
Lubrication type | Spray |
Brake | Magnetic brake |
Power source | 380V 50 HZ or others |
Machine dimension (mm) | 2000×1600×1900 |
Machine weight | 2300KG |
Advantage:
1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2). Machine’s body and other key components and parts are produced by our own factory, quality is reliable
3).High tension durably flat belt gain convenient replacement and low noise in operating.
4).we only use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,France Schneider electric and Shenzhen Inovance inverter.
5).we have gotten ISO 9001:2008,CE and TUV certificate.
4.After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.
About our company
Jiangsu Jiacheng Machinery Co,.Ltd,was founded in 1990,owing a technical team formed by many experts and engineers,our company is concentrated on making the best products in China.we are professional manufacturer in making all kinds of high speed wire drawing machine,rigid frame standing machine,annealing and tinning machine,bunching machine,extruder and so on. And our products have exported to India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt and so on.
