wire drawing equipment
| We are the professional manufacturer have more than 20 years of experience in making all kinds of wire and cable machinery,realize the wire from drawing to extruding. | |
| we are the factory not the trade company,Machine’s body and other key components and parts are produced by our own factory, quality is reliable.,and we can control .the price;.the quality and .the delivery time; | |
| Drawing wire as you want | Cu,Al,Al-alloy,S.S,etc. |
| We have | Single /multi wire drawing machine(2 wires, 4 wires,16 wires, 20 wires) |
| After drawing | We have annealing,stranding,extruding machine |
| our company address |
near to shanghai: Juqiao Economic Development Zone, Tangqiao Town,Zhangjiagang City, Jiangsu Province, China. |
| to see more products | https://img13.fr-trading.com |

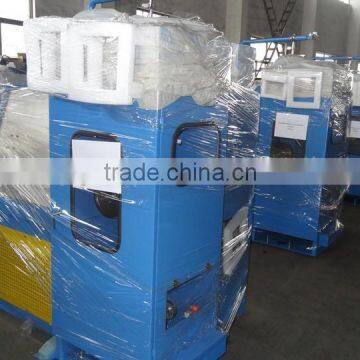

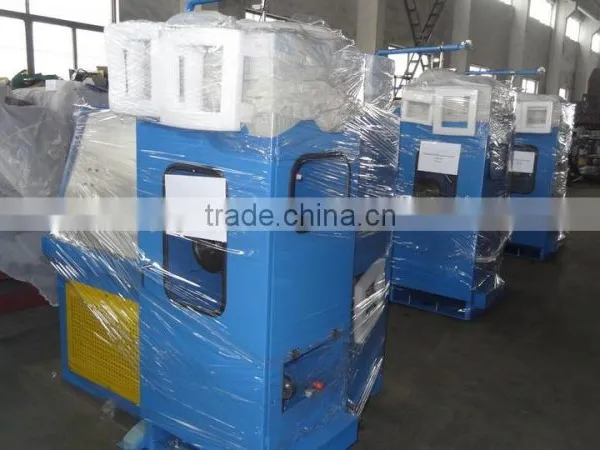

Bare copper wire drawing pulling equipment or machinery

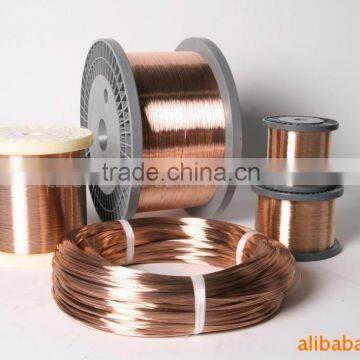

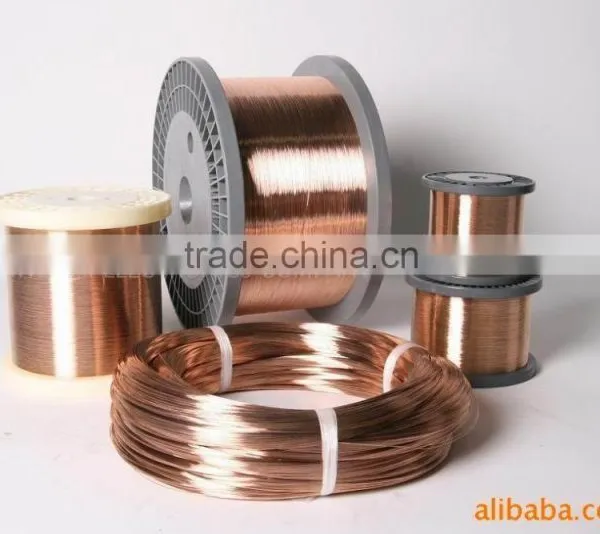

Main usage: It is used for drawing copper wire from 0.5-1.2mm to 0.08-0.32mm, HS CODE 84633000
Main feature:
1:Double motor inverter ,small slip high quality
2: Tension auto control system
3: High tension durably flat belt gain convenient replacement and low nosie in operating
Technical parameter:

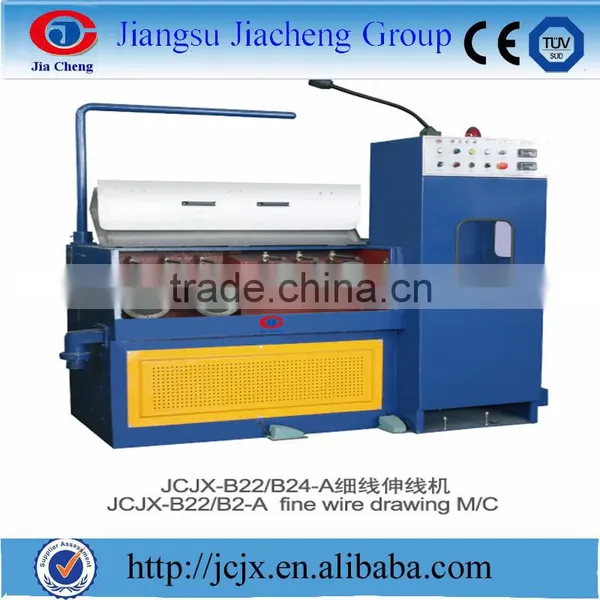

JCJXB24(B24/A)Technical parameter: | |
Inverter Control |
Double inverter control |
main machine structure |
four cones in horizontal |
Inlet Dia |
0.5~1.2mm |
Outlet Dia |
0.08~0.32mm |
Max Dia |
No:24 |
Max line speed(m/min) |
2000(2500)m/min |
Body structure |
Ironed cast |
Drawing Capstan |
ceramic plasma capstan |
Slip ratio of m/c |
13% |
Main motor power(k w) |
11(15)k w |
take-up motor |
4kw |
Fix speed capstan Dia(mm) |
160(206)mm |
Transmission type |
flat belt |
Take-up bobbin size(mm) |
300mm |
Traversing type |
synchronous motor +flat belt |
Tension control |
weight balance type |
Lubrication type |
spray |
Brake |
magnetic brake |
Weight |
2300kg |
Construction features
name |
brand |
origin |
bearing |
NSK |
Japan |
inverter |
Siemens |
Germany |
motor |
Wannan orSiemens |
Anhui,china/Germany |
DC controller |
ETD |
U.S |
PLC |
Siemens |
Germany |
Electric part |
Schneider |
France |
Take care of your products:
Our advantage:
we have our own factory and we can custom the machine according to you requirements ,we also
can control :
1.the price;
2.the quality;
3.the delivery time;
Jiacheng has some world famous parts suppliers,machines have high price prefprmance ratio;Body and other key components are produced by our own factory,quality is reliable;
Jiacheng has more than 20 years of experiences in wire and cable machine;Driving to Shanghai,we only need one and a half hours;
Pre-sale training:
in order to guarantee the customers are able fully to operate the machine,if the customer need,
we can help customer training,includes:
rrect operationg mode;
rrect maintenance way;
3.remove simple problem;
our company for our machine product,since the shipment date,our company free after-sale
maintenance service guarantee period is:
1.1 year for mechanical part;
2.6 months for electrical part;
Many years service on ALIBABA, so please rest assured to us, we will give you the best machine and the best service.
TO SEE MORE PRODUCTS----------------------https://img13.fr-trading.com/
