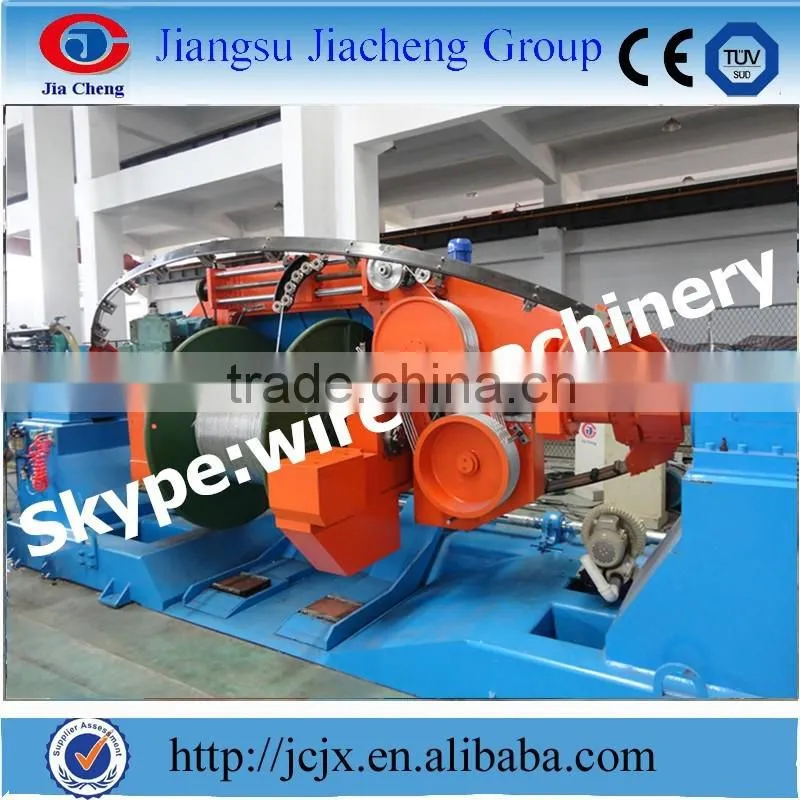

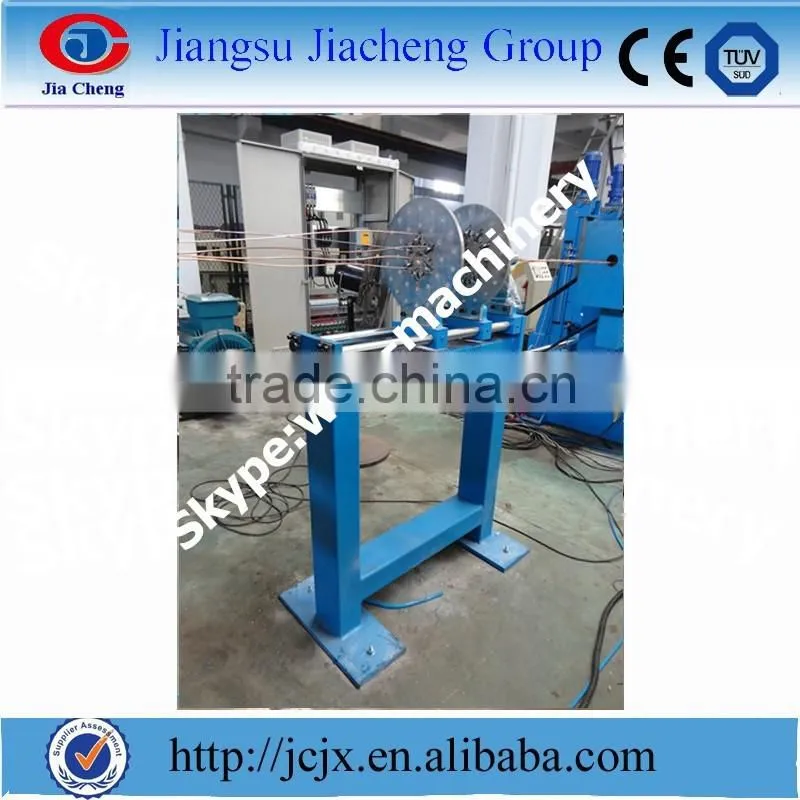

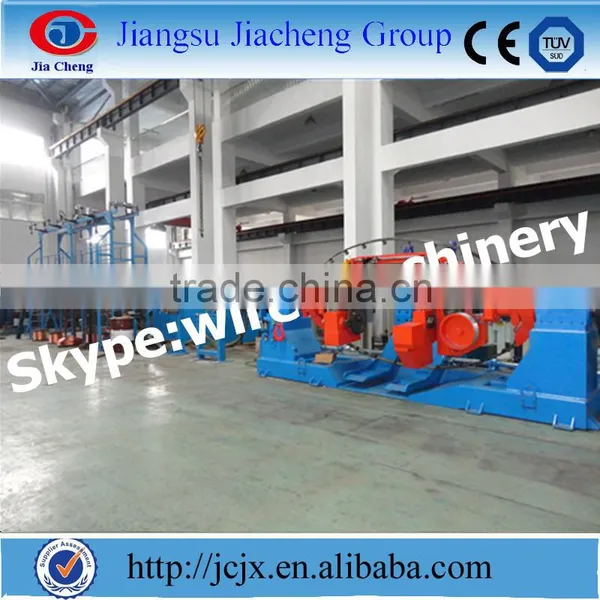

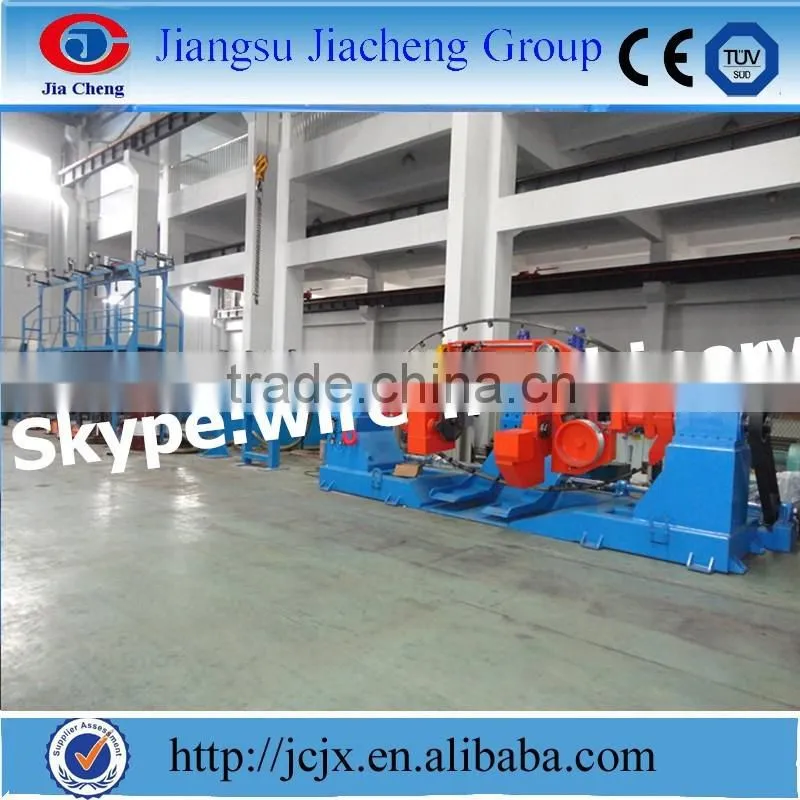

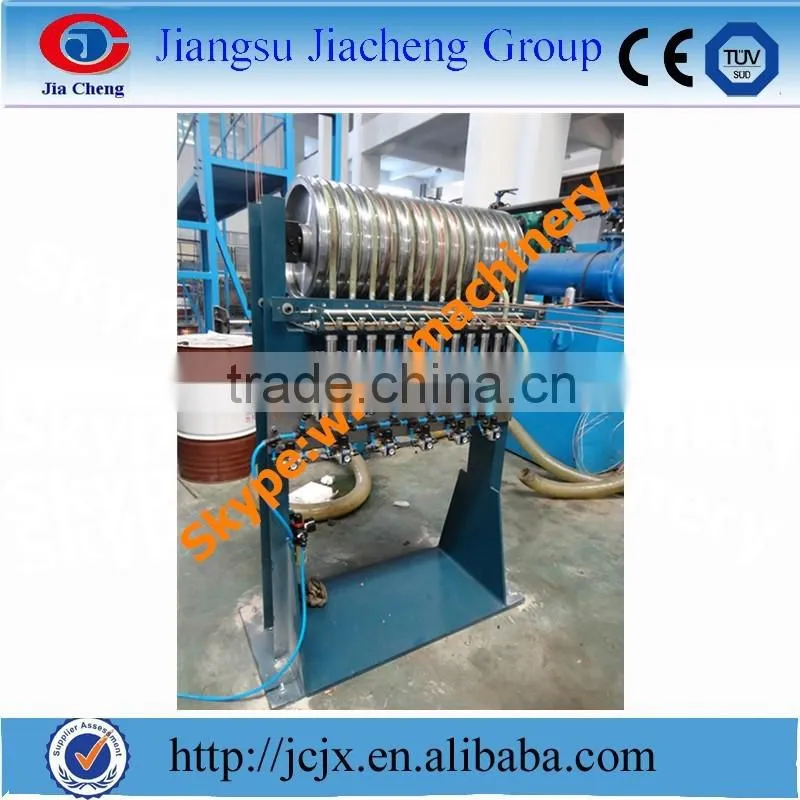

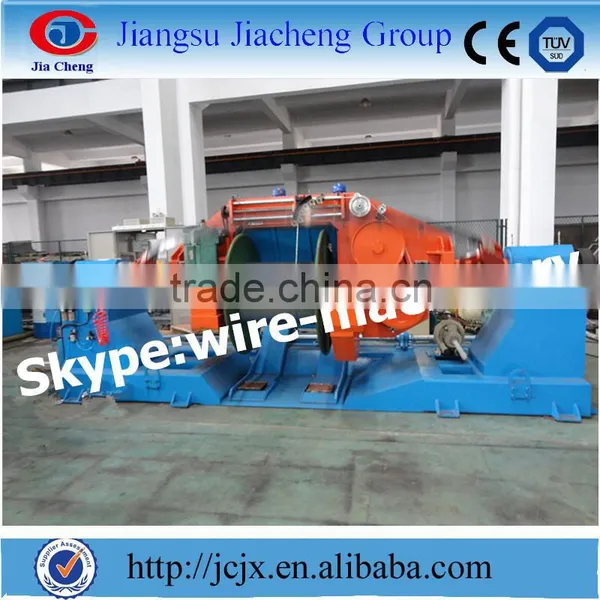

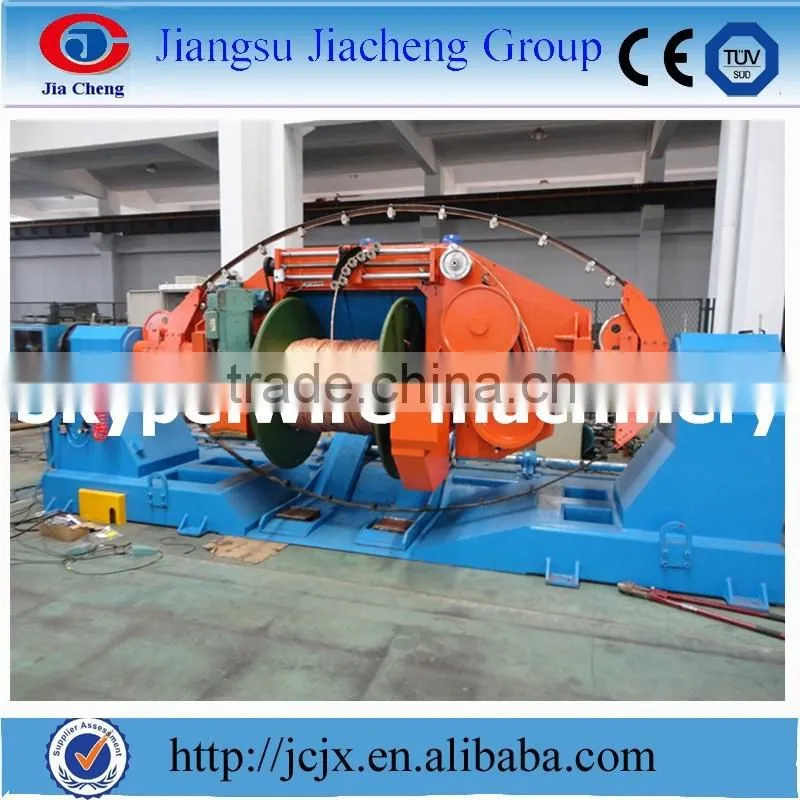

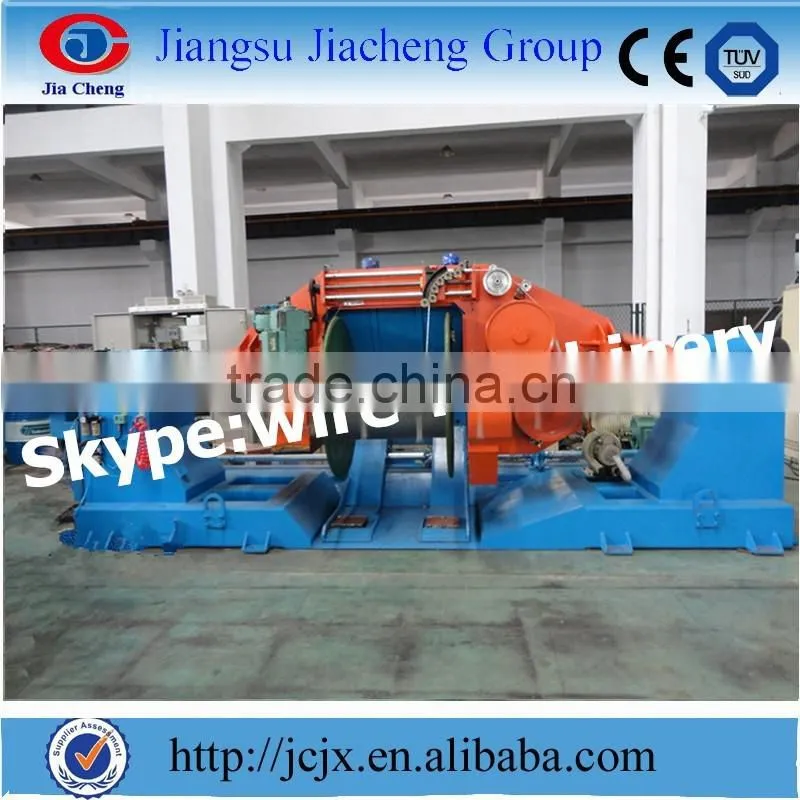

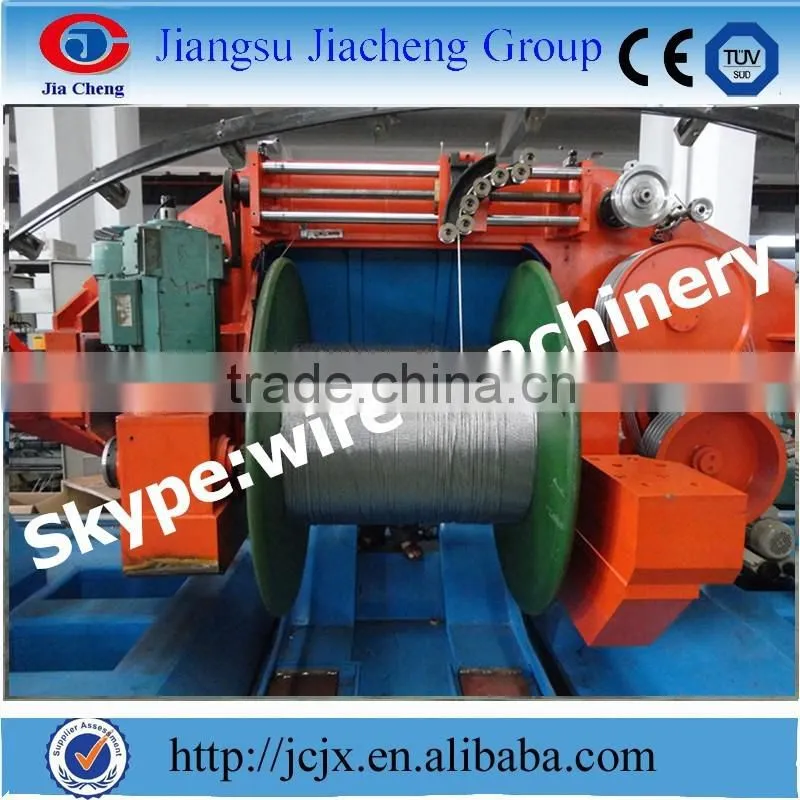

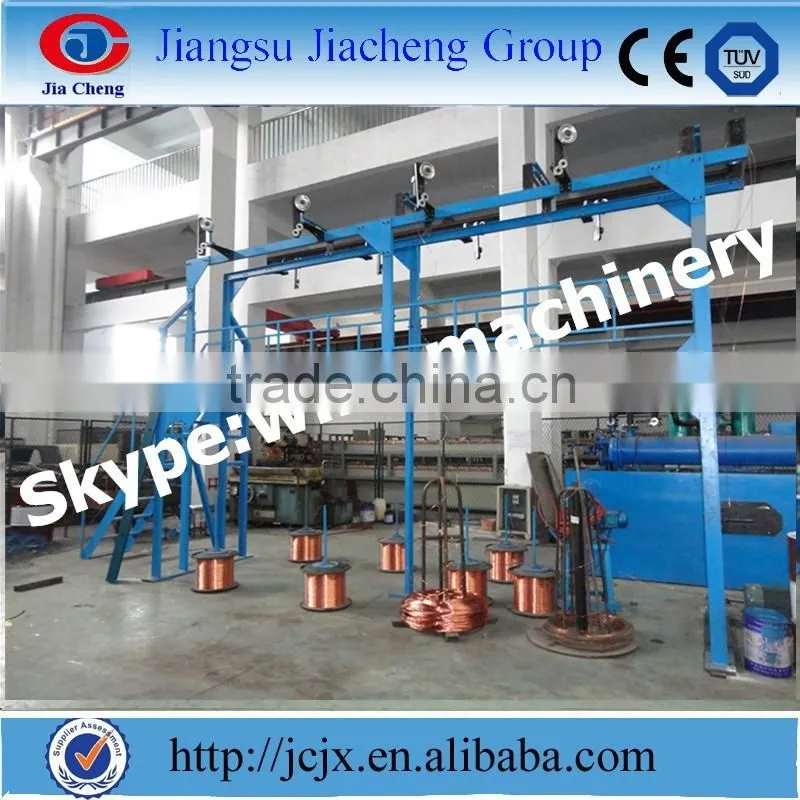

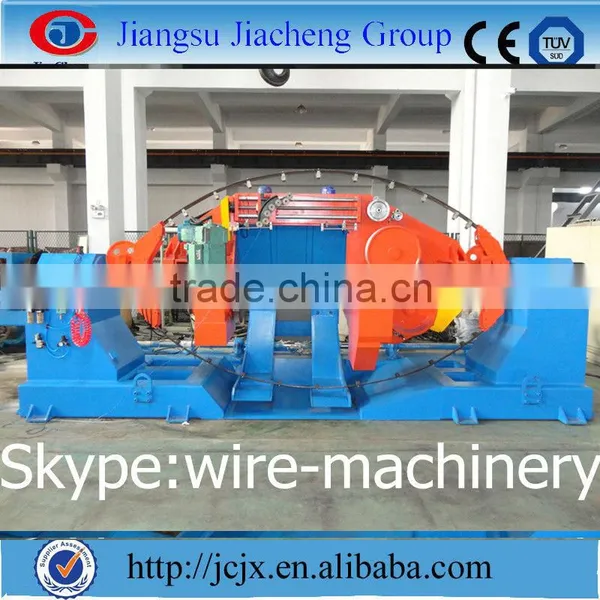

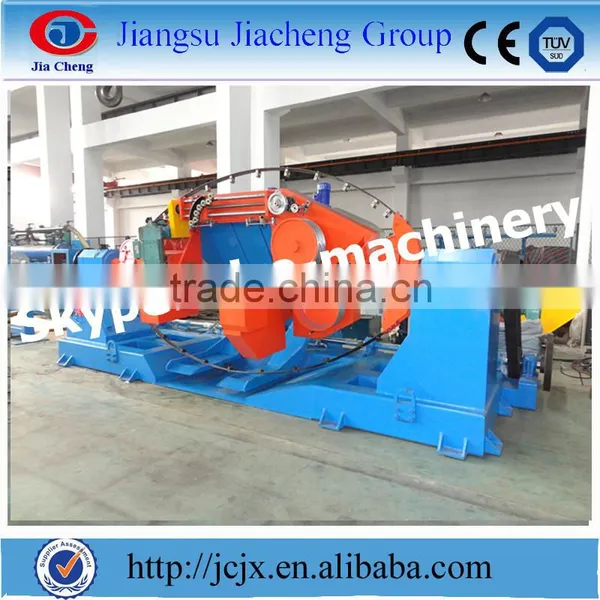

1250 type double twist bunching euipment

Machine type

JC-φ1250D

Wire product of stand

Special use twist aluminum and copper round press dowm the conductor

Cooper wire individual

Φ1.0-3.0 MM

Finish stranded wire/max.

10 mm φ/max

Finish stranded wire/Max.

15mm φ/max

Section of strand-twisting(Flexible strand)

3.5÷70mm2(6AWG÷450MCM)

Section of strand-twisting(Semi-frametwisting1+6)

3.5÷50mm2(6÷1/0AWG)

Section of compaction Cu

3.5÷50mm2(6AWG÷300MCM)

Section of compaction Al

3.5÷70mm2(6AWG÷301MCM)

Line speed/Max.

150mpm/max

Stand pitch(mm)

40-350mm

60

8000rpm/max.(1600TPM)

Load weight/Max.

3000KG

paction angle

13%

Traction pulley

2×φ600mm

Standing Direction

S,Z Direction

Main motor(DC/AC/HP)

45kw D.C. motor

Drive of Capstan(DC/AC/HP)

30kw D.C. motor

Drive of take-up unit(DC/AC/HP)

7.5kw D.C. motor

Drive of traverser

0.75kw Inverter motor

Drive of loading&unloading

1.5kw Inverter motor

Power control

Digital type DC control

Revise system

Line speed synchronous auto control

Spool bobbin size OD

OD:φ1250 mm/Max

Spooler size OW

950×800×80(mm)

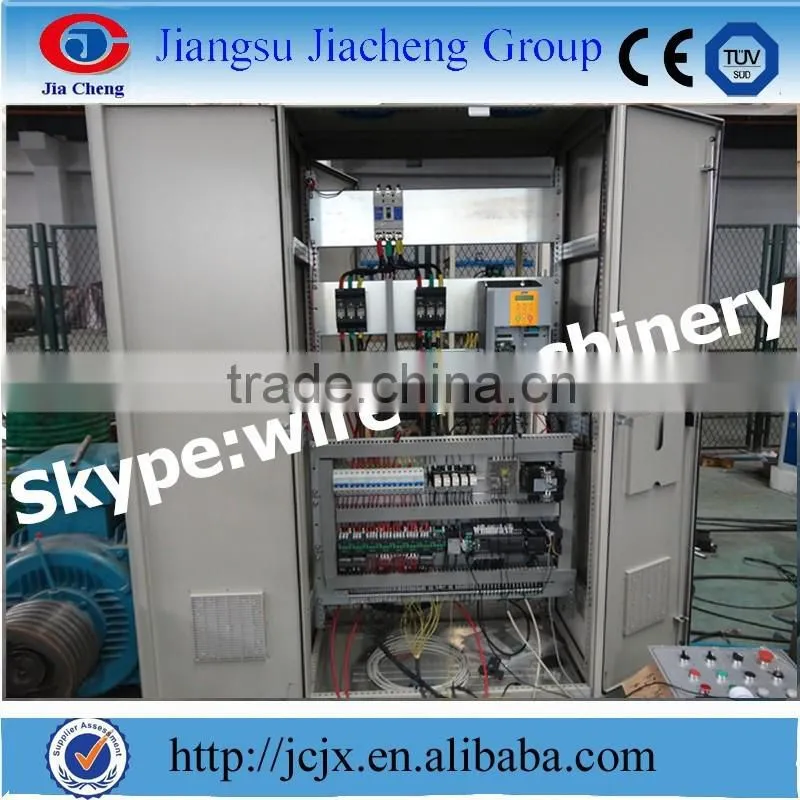

Control system

PLC man-machine interface

Tension control

Coiling motor indicates tension control

Lay stranding pitch

PLC digitization setting

Operating direction

Left/ right hand machine

Traversing width

1000mm/Max

Traversing unit

Wire diameter setting by digital type

Take-up type

Reel taken between pneumatic pintles

Reel loading & unloading

Liquefaction automatic positioning

Brake system

Disc brake

Bearing lubricative type

Oiling regularly

Air pressure

6kg/cm2

Voltage

380V 50Hz

Noise level

80db

Machine size

(L)6030×(W)2280×(H)2280mm

Weight

12500kg
