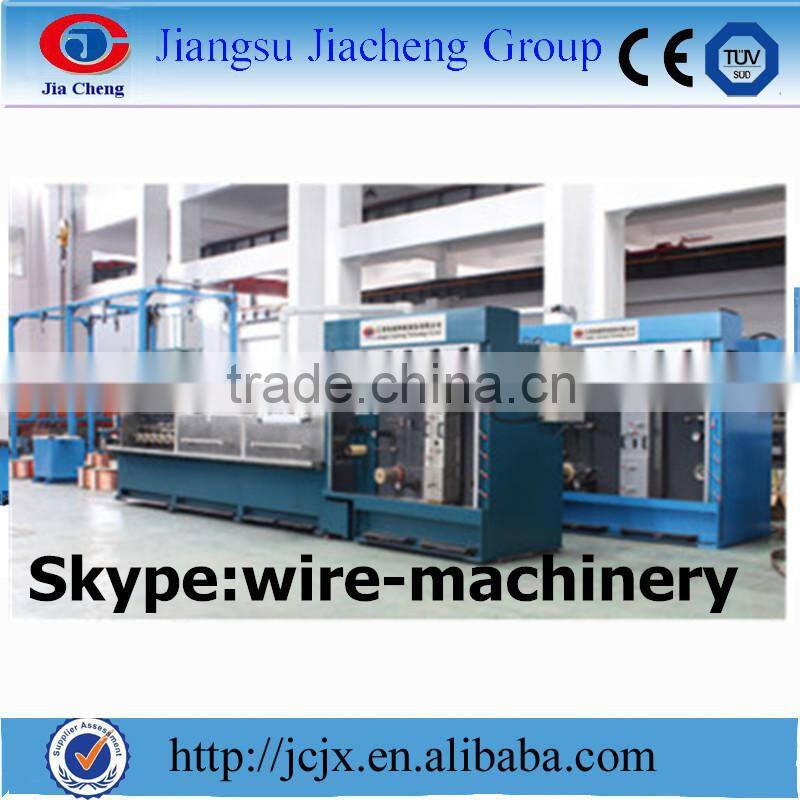

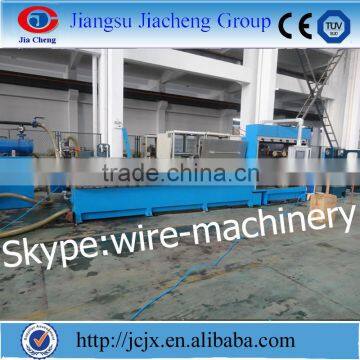

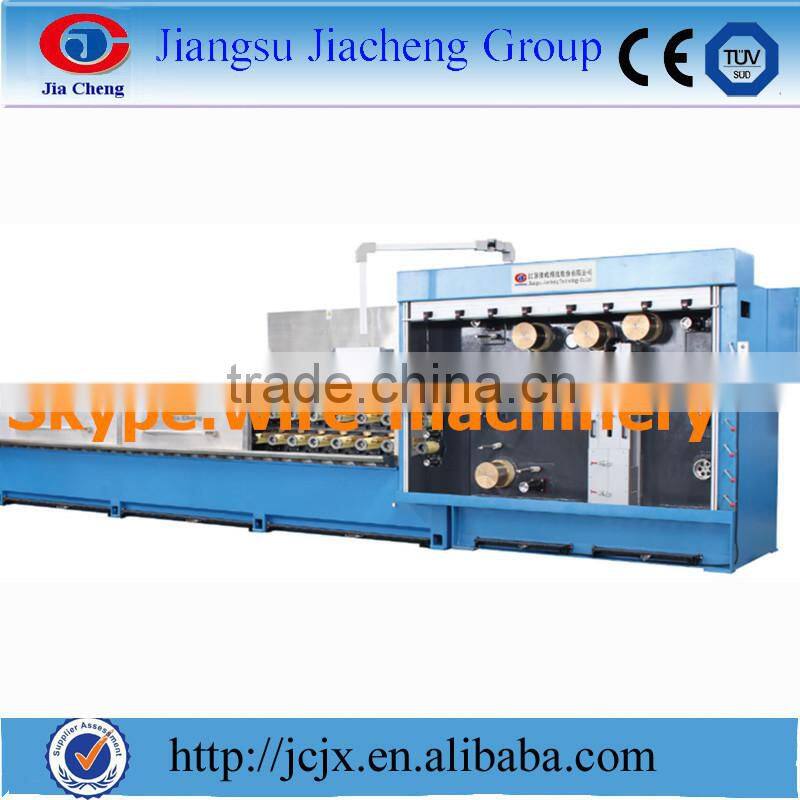

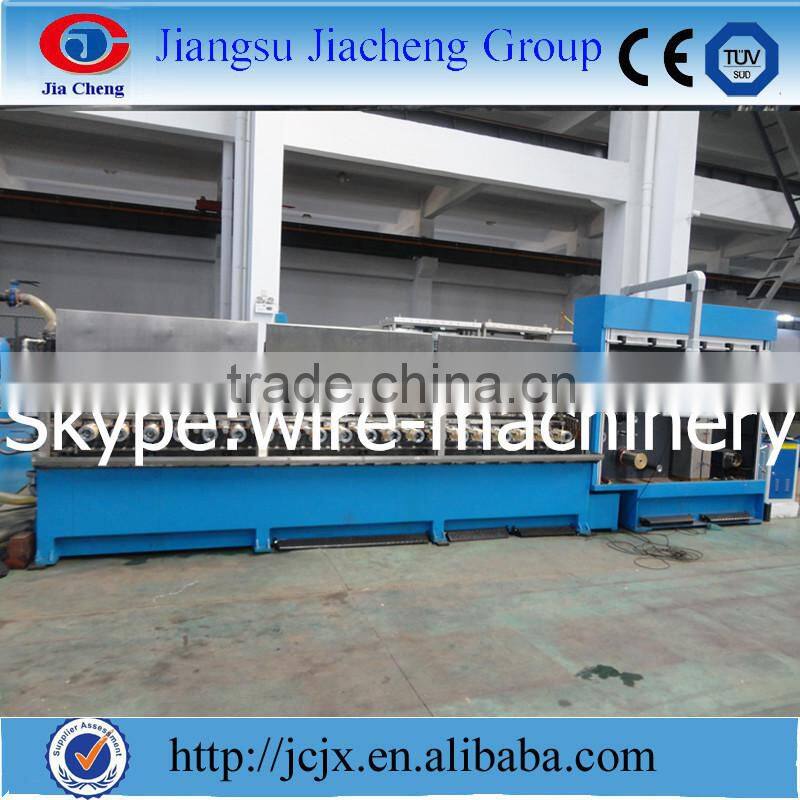

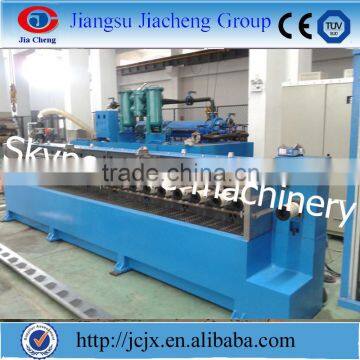

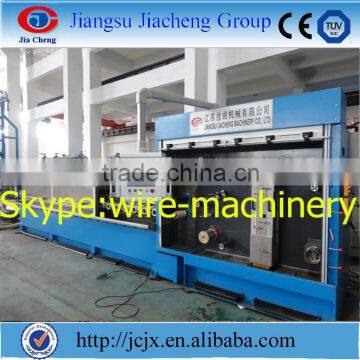

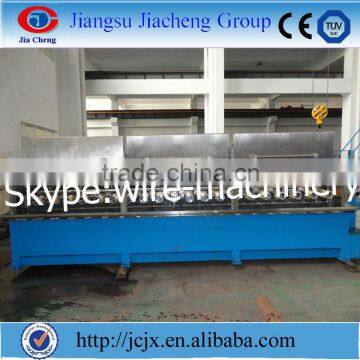

Multi- Wire Drawing Plant

Name: Multi- Wire Drawing Plant
Brand: Jiacheng
SKU: 133580879
Availability: InStock

Jiangsu Jiacheng Technology Co., Ltd.

US$ 80,000 - 90,000 MOQ: 1 Set

Key Specifications

Condition:

New

Inlet Diameter:

2.0-2.6 mm

Outlet Diameter:

0.15-0.7 mm

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Inlet Diameter 2.0-2.6 mm

Outlet Diameter 0.15-0.7 mm

Place of Origin Jiangsu, China

Brand Name Jiacheng

Model Number JCJX-8

Voltage 380-440 v

Power(W) 200 KW

Dimension(L*W*H) 20 x4 x 5M

Weight 20-28 T

Certification CE ISO TUV

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

multi-wire drawing plant
1, high speed
2, big output
3, energy saving

multi-wire drawing plant is used to draw fine copper wires with annealing system with very big capacity.

Inlet diameter	φ 2.0-φ 2.6 mm
Outlet diameter	Φ 0.15-Φ 0.70 mm
Number of produced wires	8 X copper bare i.e. copper tinned(1 Levels, with 8 wires)
Drawing speed	Max. 28 m/s
Drawing passes	Max. 22
Drawing rings	100mm with 8 grooves, For separate and parallel wire guidance Material: tungsten carbide or zirconium oxide
Wire elongation	11 x 25% / 5 x 19.44 % /3 x 9.04% three quick die change adjustable
Drawing dies	φ max. 28mm alternatively φ = max. 25.4 mm max. 12 mm thickness
Compressed air supply	6 bar overpressure (7 x 105 Pa), water- and oil free
Bobbin	DIN 630 ( Drawing will be provided by users)
Operation direction	from left to right
Noise level	< 85 dbA (Except for main motor )
Production efficiency	8 X φ 0.150mm at v = 28.0m/s 8 X φ 0.203 mm at v = 25.0m/s 8 X φ 0.250 mm at v = 23.0m/s 8 X φ 0.300 mm at v = 15.0m/s 8 X φ 0.400mm at v = 12.0m/s Production efficiency for tinned wires at production speeds reduced by about 20%.
