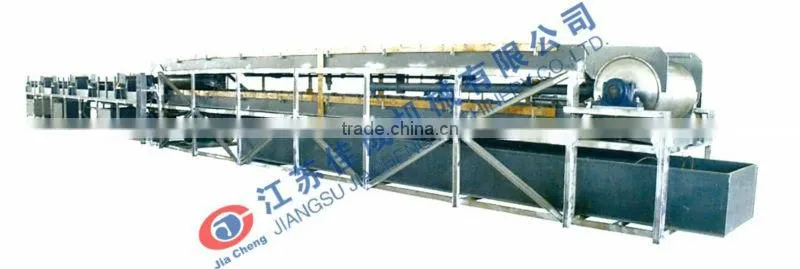

Help CenterJCJX-5000A Copper Coating Machine, Copper Plating Machine
Related Products
-
Aluminum Copper Coating (CCA , CCAM ) Machine LineUS$ 38,216.5 - 44,585.9MOQ: 1 Set -
5000A CCA Aluminum - Copper Coating Machine Line With ElectroplatingUS$ 38,216.5 - 44,585.9MOQ: 1 Set
-
JCJX-5000A CCS CCA Electroplating Copper Coating Machine Hot SalesUS$ 38,216.5 - 44,585.9MOQ: 1 Set
-
Copper /CCS CCA Coating MachineUS$ 1 - 20,000MOQ: 1 Set
-
CCA Wire MachineUS$ 55,000 - 60,000MOQ: 1 Set
Specifications
1. the roller,whole rack and framwork are made of stainless steel.2. main motor controlled by inverter
3. CU-CU production
Welcome to visit and purchase from us!
Copper coating machine feature:
1. Double floor water tank, save space.
2. Six rollers, the whole rack made of stainless steel.
3. Main motor by frequency control.
4. Take-up part controlled by torque motor, stable tension.
CU-CU production
Machine model |
JCJX-3000A |
JCJX-5000A |
JCJX-8000A |
Control system |
Button type |
||
Main power control |
Controlled by electric motor |
||
Take-up power control |
Controlled by torque motor |
||
Wire diameter |
1.0-1.2mm |
1.2-1.60mm |
1.6-3.0mm |
Main motor |
4KW |
5.5KW/7.5KW |
7.5KW/11KW |
Take-up motor |
YLJ132-16 |
YLJ132-40 |
YLJ132-40 |
Spool reel size |
300mm/ 4630mm or according to customers requirement |
||
Take-up type |
Plain shaft type |
||
Traversing type |
Triangle belt chain |
||
Line speed |
0-100m/min |
0-120m/min |
|
Rectifier |
3000A |
5000A |
8000A |
Dimension(mm) |
18000*1200*1400 |
22000*1600*1600 |
23000*1800*1600 |
Weight |
4000KG |
5000KG |
6500KG |
NO. of wire |
Single head or multi head |
||
