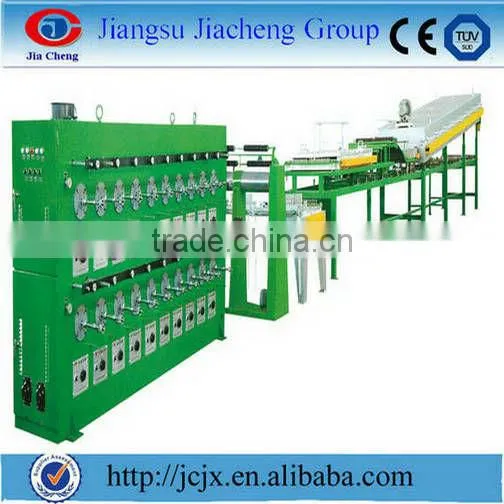

JCJX-40H/6 CCA wire annealing machine
Structure specialty:
(1) The machine able to continuously soften and tinning the line.
(2) Both tungsten and diamond dies can be used during tinning.
(3) The heat preservation device for tinning furnace and anneal furnace is researched by experts to keep even temperature and save power.
The machine build up by line release section, soften section, dry up section, distributing section, tinning section, leading section reeling section ,and electric control section.
Machine type |
JCJX40H/6 continous annealing machine |
NO.of wire |
40 |
Wire Dia.(mm) |
Φ0.10-Φ0.65 |
Pay-off Stand |
Brush or overhead |
Max.speed(m/min) |
300 |
Annealing Type |
Radiation heating |
Tinning Type |
Hot coating |
Pay off Bobbion Size(mm) |
Φ300 |
Take-up Type |
Single spooler drive by torque motor |
Traverse Type |
Motor+inverter control |
Take-up Bobbin Size |
5''10'' |
Total Power(KW) |
65 |
Advantage:
1). JIACHENG is using only helical precision gear.
2). Special lubrication system for the gears and bearings
3). Second-section-annealing system, outside electrically neutral (no current flow to other unit)
4). Machine's body and other key components and parts are produced by our own factory, quality is reliable.
8.After-sell service service:
1)pre-sale training
2)12 months for the mechanical part,and 6 months for the electrical parts
Main Product:
Cable making equipment
v Wire drawing machine (multiple wire)
v Rod breakdown machine
v Tin-coating machine Rigid frame stranding machine
v Annealing machine
v Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine
v Wire and cable production line
v Bunching machine
v CCA wire machine
Payment terms and contact ways
Escrow, T/T, L/C at sight
Contact: Lily Peng
Mobile: 0086-13506220296
Skype:lili19900510
Welcome to visit our Jiangsu Jiacheng Group
