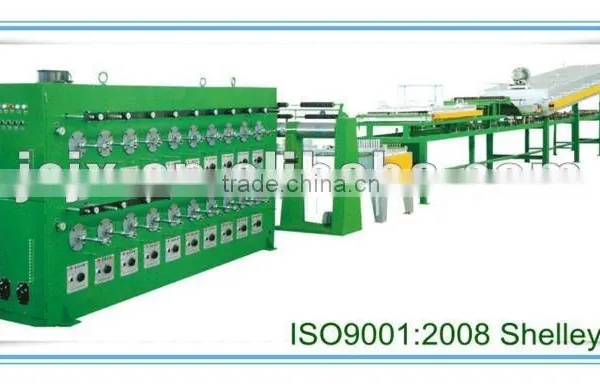

JCJX-40H/6M Tinning Machine, Offline annealing machine
1. Main usage:
This type is used for annealing and tinning copper wire from 0.1mm~0.6mm.
2. Main Spec:
Machine type |
JCJX-40H/6M |
Length of annealing tank |
6m |
Wire dia |
Φ0.10-Φ0.60mm |
Pay-off stand |
By tension wire |
Max. speed |
300m/min |
Tin-coating type |
Dual furnace by heater(optional) |
Pay-off bobbin size |
Φ300or according to customers requirements |
Spool bobbin size |
PT5-PT25 or according to customers requirements |
Take-up type |
Single spooler drive by torque motor |
Annealer |
Continuous annealing by heater |
Total power consumption |
65KW |

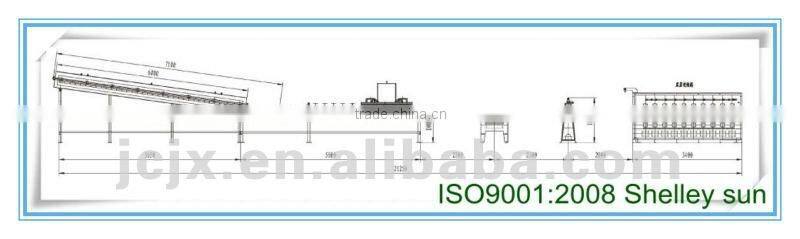

Machine dimension |
20000L×2200W×1900Hmm |
3. Advantage:
1).Add one room inside the annealing, which can make the temperature impartial distribution.
2). Dual tinning tank design, it can produce two kind of tin-coating copperwire in the same time.
3).Spooler arranged in double layer can save space.
4).It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
4. The scope of supply
5. After-sell service
5-1. Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
5-2. Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.
