Outdoor Fitness Equipment Lifting Framework for the Park

Outdoor Fitness Equipment Lifting Framework for the Park thumbnail-1
Outdoor Fitness Equipment Lifting Framework for the Park thumbnail-2
Outdoor Fitness Equipment Lifting Framework for the Park thumbnail-3
Outdoor Fitness Equipment Lifting Framework for the Park thumbnail-4
Outdoor Fitness Equipment Lifting Framework for the Park thumbnail-5
Outdoor Fitness Equipment Lifting Framework for the Park thumbnail-6
Outdoor Fitness Equipment Lifting Framework for the Park photo-1
Outdoor Fitness Equipment Lifting Framework for the Park photo-2
Outdoor Fitness Equipment Lifting Framework for the Park photo-3
Outdoor Fitness Equipment Lifting Framework for the Park photo-4
Outdoor Fitness Equipment Lifting Framework for the Park photo-5
Outdoor Fitness Equipment Lifting Framework for the Park photo-6
US$ 200 - 280 MOQ: 5 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Jingao
Model Number:
JA-6300
Contact Supplier Request Quote Chat Now
Dezhou Huangbai Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Jingao
Model Number JA-6300
Product Pescription
Model:
JA-6300
Size:
Custom size
Color:
customized color option
 Material:
glavanized steel with powder coated, and so on.
Steel pipe:
diameter of 114mm, wall thickness of 2.5 mm, customized option offered
Certification:
GS, CE
Delivery time:
about 10-20days
Packaging:
standard export packaging, POF outside, cotton inside.
Payment method:
T/T in advance, 30% for deposit
Remark :
all the colors and styles can custom-tailor to requirements
Function:
 A comprehensive exercise. Enhance coordination and flexibility of the body.
Scope of application:
Used in the park, playground, school, community, business, etc

Material Description：outdoor fitness equipment


a) Steel pipe/galvanized steel pipe: 114 mm O.D. (thickness: 2.5 mm), 60 mm O.D. (thickness 2.5 mm), 48 mm O.D. (thickness 2.5 mm), 38 mm O.D. (thickness: 2.5 mm), 32 mm O.D. (thickness: 2.5 mm)
b) Ball bearing: 25 mm I.D., 52 mm O.D.
c) Board: 8, 15 mm thickness
d) Screw: 316 stainless steel
e) Plastic part: ABS

All the metal parts are welded by Argon arc welding and carbon dioxide gas shield welding are adopted here and both conform to the requirements of GB/T8810-1995. After the integral processing and shaping, our technicians perform the hot galvanizing and slinging processing. Surface of the product is applied with DuPont outdoor polyester pearl powder coating which is friendly to the environment and solidified at high temperature. With smooth surface and excellent anti-ultraviolet property, our product has bright colors, which are difficult to fade and corrosion-resistant. As for the spraying equipment, we adopt the computer-controlled electrostatic powder coating device which is imported from South Korea. The whirly and filter elements have been applied in the powder recycling equipment, which is pollution-free with high efficient.

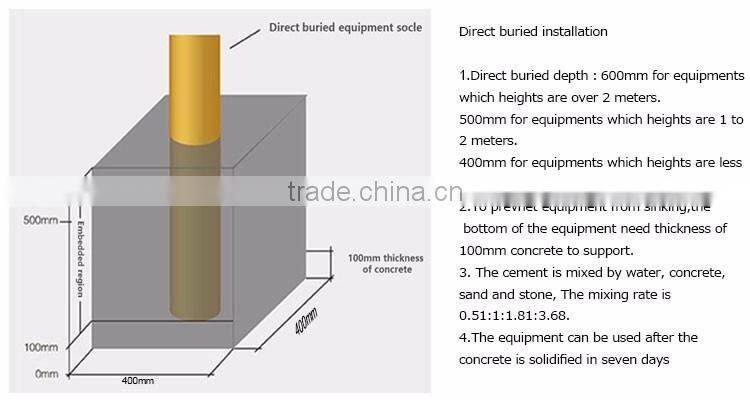

Installation method

Installation method of use: outdoor fitness equipment

production process

1. Metal Parts: exercise outdoor fitness equipment

Cutting Raw Material (Galvanized steel pipe) ——> Curving——> Welding——> Polishing ——> Sand Blasting ——> Color Powder Coating ——> Fix with post cover and foot treadle ——> Packaging

Packaging and shippi

1. Packaging-  outdoor fitness equipment

Metal and Plastic Parts: Cotton with PP Film;
Accessories: Woven Bag.
Warehouse: good stock indoor; use different colors to divide playground of different customers, much easier to examine and load cargo.


2. Shipping-  outdoor fitness equipment

According to LE.ST.016 Packing Volume (0.5 CBM) :
1*20'GP=50 Sets
1*40'HQ=130 Sets

Customer visit

Factory to visit customers：outdoor fitness equipment

Our equipment has been exported to India, Mid East, South Africa, etc. and has won high reputation from our customers.

Welcome your visit, our professional service for you!
