Specifications
Saree Laser Embroidery Machine1.embroidery,hollowing,kiss cutting
2.high speed
3.improve added value
4.Goldenlaser software

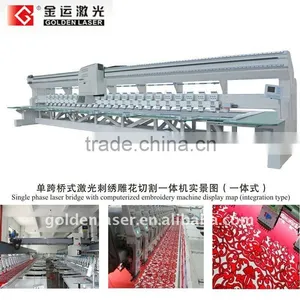

Saree Laser Embroidery Machine
Applications:
Suitable for various fabric with embroidering, edge-cutting, punching, embroidered patch, hollowing, engraving and kiss-cutting.
Suitble for clothing embroidery, fabrics, Saree, multi-layer veil embroidery, label embroidery, plush toys, embroidery applique, knitwear, leather goods, textile products and fabric decoration.
Main Features:
- Stable structure and graceful appearance with LASER BRIDGE.
- Combination of computerized embroidery and laser high-speed cutting/engraving, precise cutting, increasing efficiency.
- Process various fabric with embroidery, edge-cutting, punching, applique, hollowing, engraving and kiss-cutting.
- Enriched the embroidery technology, highly improved the products level and added-value.
- Servo motors, high-quality lenses and dynamic focusing system configuration to ensure the processing of high speed and quality.
- The series has two models of single phase and double phase, no limit on embroidered heads, share one laser system, more cost-effective.
Main Technical Parameters:
Laser power |
150W |
Power control accuracy |
0.1W |
One field cutting area |
450mm X 450mm |
Non-loading Cutting Speed |
0-300000mm/min |
Bridge maximum moving speed |
500mm/s |
Format support |
AI, BMP, PLT, DXF, DST, etc. |
Power supply |
AC220V, 50HZ |
Laser power adjustment |
0-100% following control of laser adjustment |
Motion control system |
Offline EMS memory continuous movement, 3-axis dynamic galvanometer system |
Cooling system |
Water cooling |
Control mode |
Separated computer embroidery and laser cutting system, freely switch-control |
Embroidery machine quantity selection |
1set, 2sets or 4 sets |
Auxiliary system |
Exhaust system |
Control software |
Original Golden Laser embroidery and laser cutting system software |
Ten times profit higher than traditional embroidery:
-Take this design for example, if the laser bridge is for one phase 20 heads embroidery machine, laser process 15 minutes to finish.
-The original fabric cost USD1.2/meter. After embroidery, the embroidered fabric cost USD1.6/meter. After laser bridge process, it can increase the added-value as USD10/meter for profit.
Embroidery machine STANDARD:
A. One phase laser bridge for 9.6 meter, 24embroidery heads, 6 needles, 300mm head distance, X=600mm, Y=850mm;
B. Two phases laser bridge for 20 meters, 0.8m working table between two sets machines;
C. The embroidery machine can be flat embroidery machine, sequin device, cording device, coiling device, etc.
Cooperation Mode:
A. Laser bridge supplying as whole system, provides embroidery machine and laser bridge system entirely;
B. Laser bridge installation on the existing embroidery machine in customer’s factory.
C. Laser bridge installation in domestic Chinese embroidery factory.

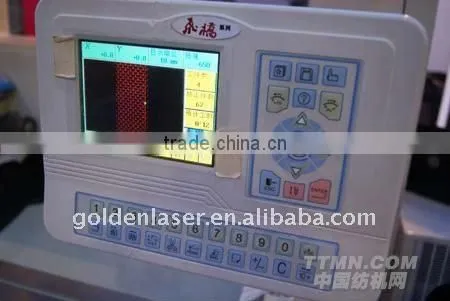

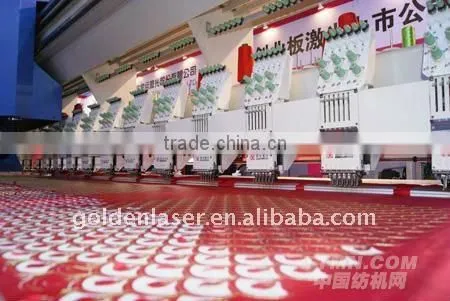

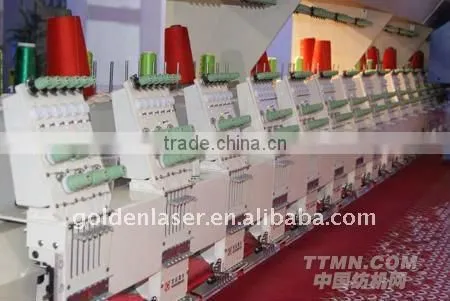

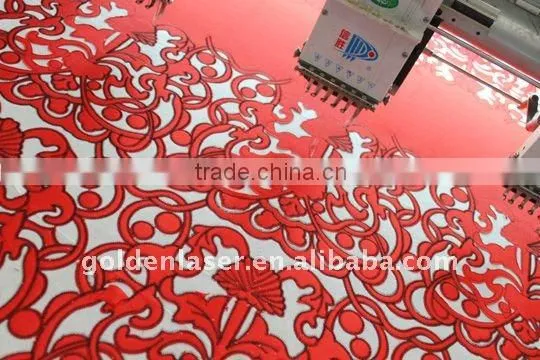

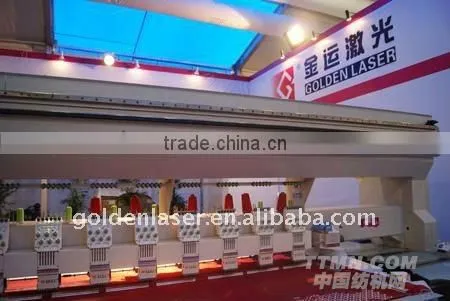

More detailed Pictures of this machine:
Samples of Laser Bridge with Computerized Embroidery:
