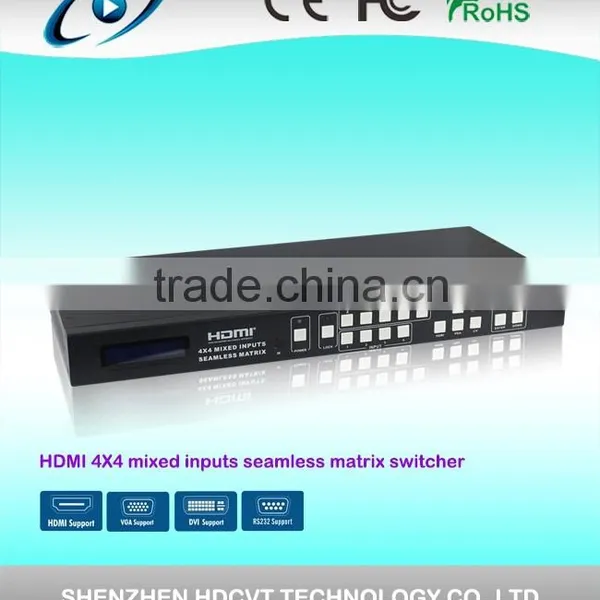

HDMI Matrix 4x4 Mixed Inputs With Video Processing Support Seamless Switcher

Name: HDMI Matrix 4x4 Mixed Inputs With Video Processing Support Seamless Switcher
Brand: playvision
SKU: 133562375

HDMI Matrix 4x4 Mixed Inputs With Video Processing Support Seamless Switcher thumbnail-1

HDMI Matrix 4x4 Mixed Inputs With Video Processing Support Seamless Switcher thumbnail-2

HDMI Matrix 4x4 Mixed Inputs With Video Processing Support Seamless Switcher photo-1

HDMI Matrix 4x4 Mixed Inputs With Video Processing Support Seamless Switcher photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

playvision

Model Number:

HDM-944F

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen HDCVT Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name playvision

Model Number HDM-944F

Place of Origin Guangdong, China

Seamless Switcher HDMI 4X4 mixed inputs( 4xHDMI/ 4xVGA/ 4xAV) with Video Processing Vedio wall displaying/POP/PIP

1.Introduction

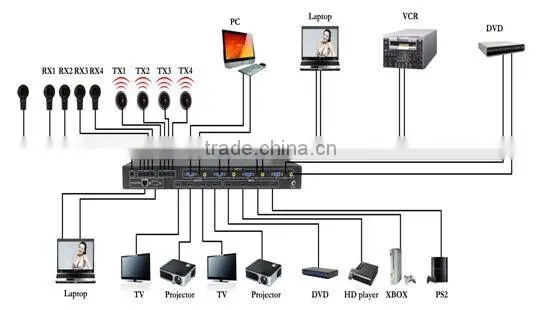

The matrix switcher is a high-performance with seamless switching output and mixed input 4x4 matrix switcher,4 mixed input to support digital video signals and analog video signal, and 4 outputs with seamless switching function, seamless switching mode: fast switching, fade in/fade out, blinds and so on; the mixing matrix switcher adopts the advanced digital technology, with scaler function, and achieve a variety of formats to achieve a unified output signal, switching seamlessly perfect visual effects. At the same time it with infrared matrix function, analog video signal input with embedded audio function. Flexible control mode diversity, through the front panel button, remote control,RS-232 and TCP/IP control.

As a video wall processor, the matrix switcher is able to zoom in one input image four times to the outputs. And as a Multi-viewer processor, the matrix switcher can mix inputs with any combos to one image, and then transfer to all the outputs.

2.Features

Compliant HDMI1.3, HDCP1.3 and DVI1.0

Input video supports HDMI, VGA and C-video

Supports input resolutions :

HDMI: 480i to 1080p

VGA:1920 x 1080P@60Hz, 1360 x 768P@60Hz,

1280 x 1024P@60Hz, 1024 x 768P@60Hz,

1280 x 720P@60Hz,1280 x 768P@60Hz, 800 x 600@60Hz,

640 x 480P@60Hz

CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats

Supports output resolutions :1920x1080P@60Hz

Supports seamless switching output,optional seamless switching mode:fast switching,fade in/fade out,blinds and so on The RS-232 for the firmware update

Supports RS-232, remote control, on-panel control and TCP/IP Control

Supports smart EDID management

Picture Adjustment Settings

Automatically adjust the VGA input video

Supports power-off memory

3.Package Contents

HDMI 4 x4 mixed inputs seamless matrixswitcher 1pcs

12V/2.5A DC power adaptor 1pcs

Operation Manual 1pcs

Wideband IR Tx cable 4pcs

Wideband IR Rx cable 5pcs

Mixed Matrix IR Remote 1pcs

Mounting ears 2pcs

RS232 cable 1pcs

4.Specifications

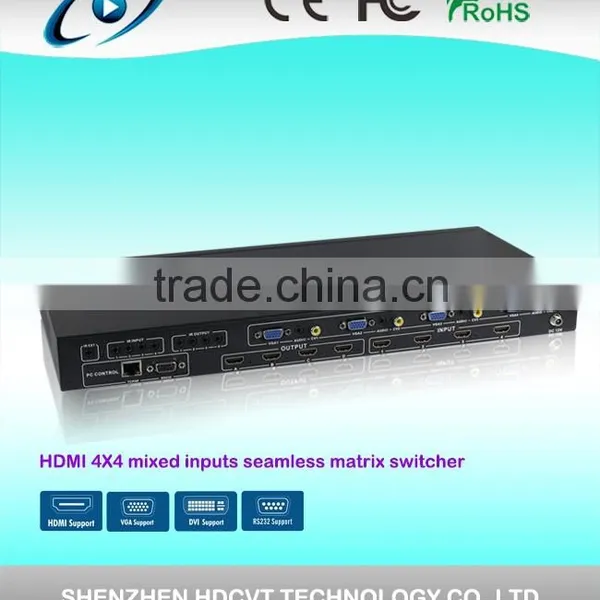

Input Ports 4×HDMI, 4xVGA, 4xRCA, 1×RS-232,

1xRJ-45(Control), 5×IR INPUT, 4xAudio

Output Ports 4×HDMI, 4xIR OUTPUT

Input Resolutions Support Up to 1920x1080P@60Hz

Output Resolutions Support Up to 1920x1080P@60Hz

Control IR , RS-232 , TCP/TP , Buttons

ESD Protection Human-body Model:

± 8kV (Air-gap discharge)

± 4kV (Contact discharge)

Power Supply 12 V/2.5 A DC (US/EU standards,

CE/FCC/UL certified)

Dimensions 440mm (W)×200mm (D)×44.5mm (H)

Weight 2380 g

Chassis Material Metal

Silkscreen Color Black

Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF

Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF

Relative Humidity 20~90 % RH (non-condensing)

Power Consumption 13.5 W(Max)/1.2W(Standby)

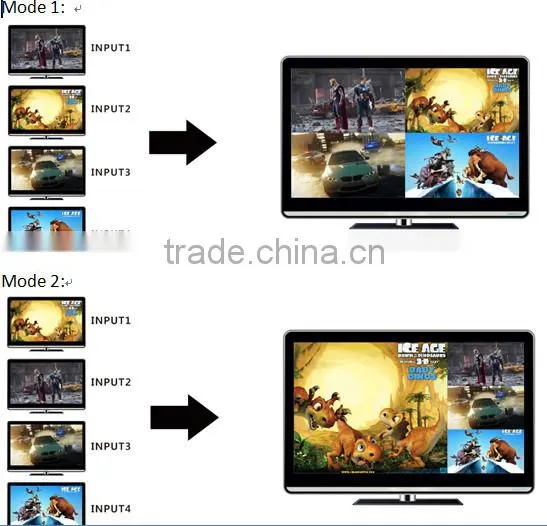

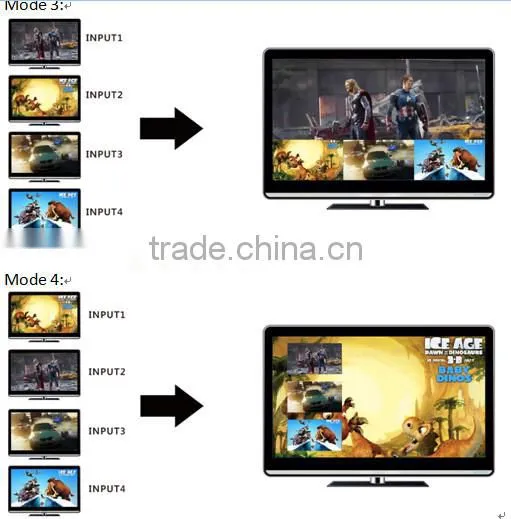

Picture outside Picture (POP) Displaying

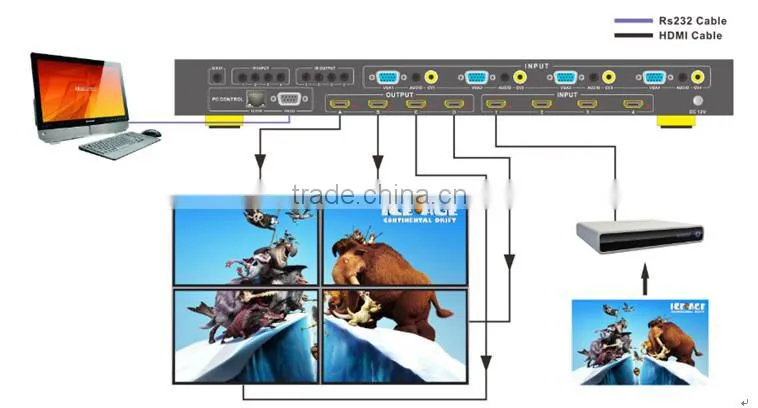

Diagram of Video Wall Displaying

4x Zoom-in: It means matrix switcher is able to zoom in the input image and spilt to 4 parts, and then full-screen display on the output displayers one to one.
