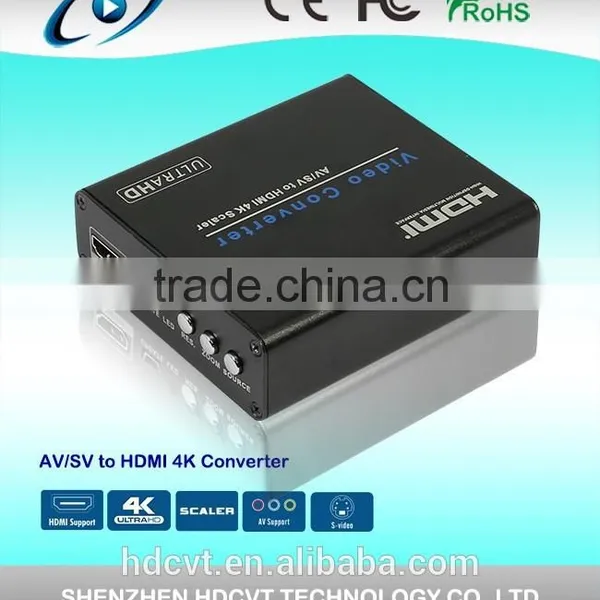

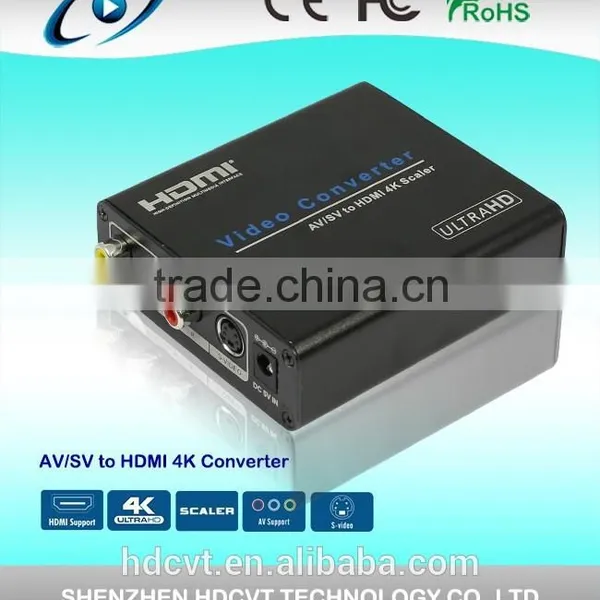

AV/SV to HDMI converte with Scaler support 4KX2K@60Hz
Introduction
The AV/SV to HDMI 4Kx2K Scaler Converter is a universal converter for analog composite input to HDMI 4Kx2K@60Hz output. The analog to digital conversion in this module employs 10 bits maximal 297MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to HDMI output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
Features
- 1. No need to install drivers, portable, flexible, plug and play.
- 2. Provide advanced signal processing with great precision, colors, resolutions, and details.
- 3. Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats input.
- 4. Support HDMI 4Kx2K@60Hz, 4Kx2K@30Hz,1080p@60Hz or 720p@60Hz output.
Package
- 1. AV/SV to HDMI 4Kx2K Scaler Converter 1 pcs
- 2. 5V1A DC Power Supply Adaptor 1 pcs
- 3. Operation Manual 1 pcs
Specification
Input ports: 1xRCA (Yellow, White, Red). 1x S-Video, 1 x Min- USB
Output ports: 1xHDMI
Dimensions(mm): 93(D)x84(W)x28(H)
Wight (g): 165g
CVBS/S-VIDEO input: PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats
HDMI output resolution: 4Kx2K@60Hz,4Kx2K@30Hz,1080P@60Hz,720P@60Hz
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 3.5W
ESD Protection Human Body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
We welcome your kind inquiry.If there is anything we do not mention above, please feel free to contact me.
