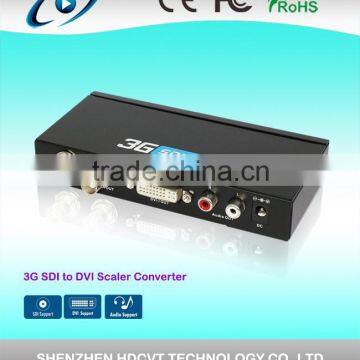

the Best Sell SDI to DVI/VGA Scaler Converter hd Sdi Converter

Name: the Best Sell SDI to DVI/VGA Scaler Converter hd Sdi Converter
Brand: playvision
SKU: 133561823
Availability: InStock

the Best Sell SDI to DVI/VGA Scaler Converter hd Sdi Converter thumbnail-1

the Best Sell SDI to DVI/VGA Scaler Converter hd Sdi Converter thumbnail-2

the Best Sell SDI to DVI/VGA Scaler Converter hd Sdi Converter photo-1

the Best Sell SDI to DVI/VGA Scaler Converter hd Sdi Converter photo-2

US$ 152 - 153 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

playvision

Model Number:

HDV-S004

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen HDCVT Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name playvision

Model Number HDV-S004

Place of Origin Guangdong, China

hd sdi converter

n Introduction

The SDI to DVI-VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on DVI/VGA displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on DVI/VGA displays thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI ,DVI and VGA at the same time.

n Features

1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Equalized and re-clocked loop output
3. Auto video mode detection (3G/HD/SD)
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
6. Simultaneous display with SDI /DVI/VGA signals
7. Alternative audio output to analog 2CH
8. Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
1. 9. Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

n Package

1. 3G SDI to DV-VGA Sclaer Converter
2. 5V DC Power Supply Adaptor
3. Operation Manual

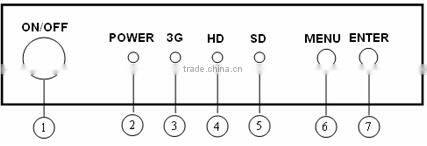

n Operation controls and Fuctions

1. ON/OFF: Power on/off switch.
2. POWER LED: This blue LED illuminate when the device is connected with power supply.
3. 3G LED: This blue LED illuminate when the input SDI signal is with 3G format.
4. HD LED: This blue LED illuminate when the input SDI signal is with HD format.
5. SD LED: This blue LED illuminate when the input SDI signal is with SD format.
6. MENU: Press this button to enter the output resolution OSD menu.
7. ENTER:Press this button to confirm your selection.

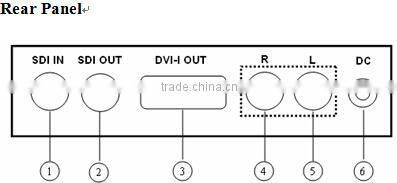

1. SDI IN: This slot is where you connect the SDI source output for SDI signal sending to be display on screen.
2. SDI OUT: This slot is where you connect the SDI display with SDI cable for input source display.
3. DVI-I OUT: This slot is where you connect the DVI/VGA display with DVI/VGA cable.
4. AUDIO R OUT: This slot is where you connect the speaker or amplifier with RCA jack for audio signal display.
5. AUDIO L OUT: This slot is where you connect the speaker or amplifier with RCA jack for audio signal display.
6. DC IN: Plug the 5V-12V DC power supply into the unit and connect the adaptor to AC wall outlet.
