Hot Sell High-end 3G SDI to VGA Scaler Converter Sdi to ip

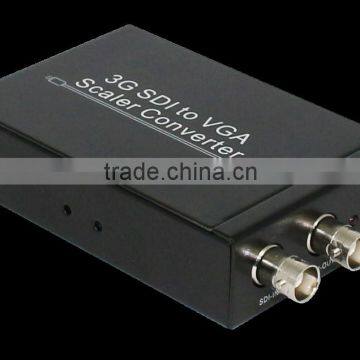

Hot Sell High-end 3G SDI to VGA Scaler Converter Sdi to ip photo-1
Hot Sell High-end 3G SDI to VGA Scaler Converter Sdi to ip photo-2
US$ 62 - 63 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
playvision
Model Number:
HDV-S006
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Brand Name playvision
Model Number HDV-S006
Place of Origin Guangdong, China

SDI to VGA Scaler



n   Introduction

The SDI to VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on VGA displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on VGA displays thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and VGA at the same time.

n   Features

  1. 1.   Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
  2. 2.   Equalized and re-clocked loop output
  3. 3.   Auto video mode detection (3G/HD/SD)
  4. 4.   Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
  5. 5.   Connect with other units to extend your signal over long distances
  6. 6.   Simultaneous display with SDI /VGA signals
  7. 7.   Alternative audio output to analog 2CH
  8. 8.   Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
    1. 9.   Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

n   Package

  1. 1.   3G SDI to VGA Sclaer Converter
  2. 2.   5V DC Power Supply Adaptor
  3. 3.   Operation Manual

n   Operation controls and Fuctions



hot sell high-end 3G SDI to VGA Scaler Converter sdi to ip







  1. 1.         SDI IN: This slot is where you connect the SDI source output for SDI signal sending to be display on screen.
  2. 2.         SDI OUT: This slot is where you connect the SDI display with SDI cable for input source display.
  3. 3.         POWER LED: This red LED will illuminate when the device is connected with power supply.
  4. 4.         DC IN: Plug the 5V-12V DC power supply into the unit and connect the adaptor to AC wall outlet.
  5. 5.         Resolution: Press this button to select the output resolution .
  6. 6.         AUDIO: This slot is where you connect the speaker or amplifier with eaphone jack for audio signal display.
  7. 7.         VGA OUT: This slot is where you connect the VGA display with VGA cable.

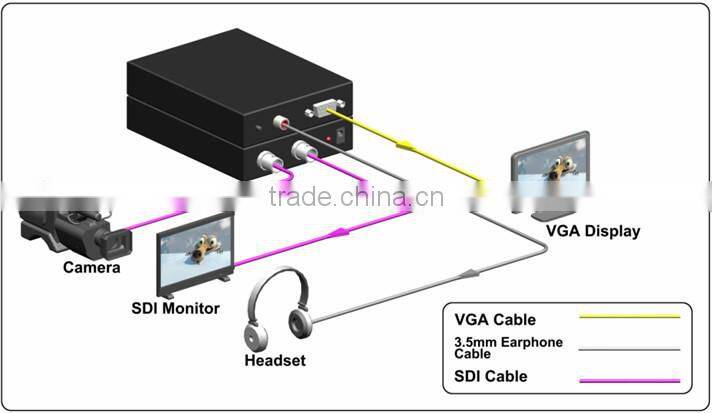

n   Application Example



hot sell high-end 3G SDI to VGA Scaler Converter sdi to ip
