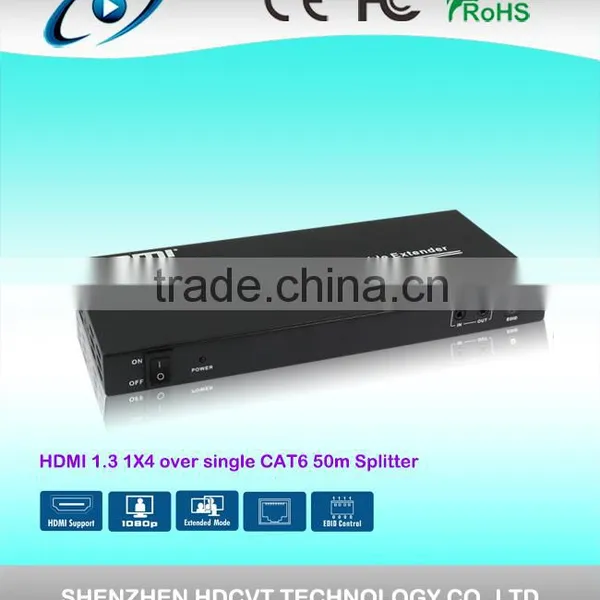

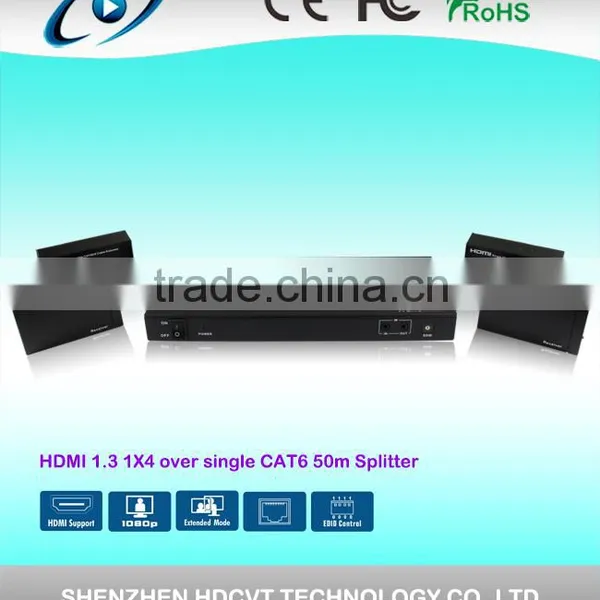

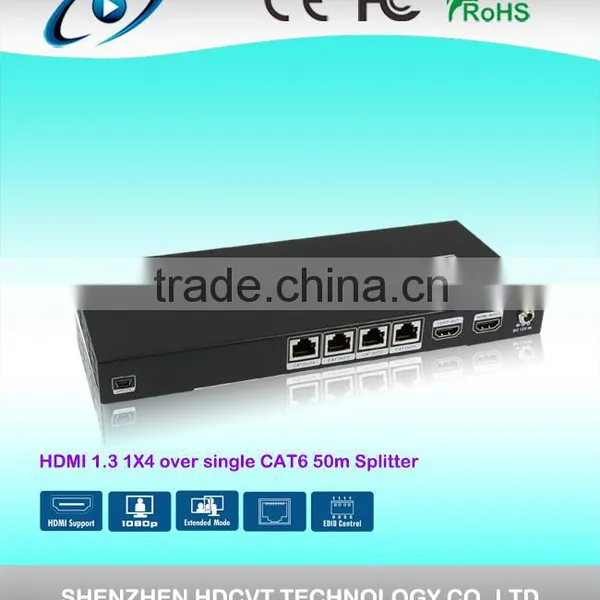

Help CenterHDMI SPLITTER EXTENDER 1x4 OVER SINGLE Cat5e/6 164ft , Smart Management
Related Products
-
Ultra High Speed HDMI Splitter 1x8, 4K*2k, Super QualityNegotiableMOQ: 1 Unit -
Ultra High Speed HDMI Splitter 1x2, 4K*2k, Hot SaleNegotiableMOQ: 1 Unit
-
New Product UHD 1x2 HDMI Splitter, 4K*2kNegotiableMOQ: 100 Units
-
HDMI 1x4 Splitter Over CAT5e/6 Extender 1080p@60Hz@24 Bit/pixelsNegotiableMOQ: 1 Unit
-
Ultra High Speed HDMI Splitter 8 Way, 4K*2k, High QualityNegotiableMOQ: 1 Unit
I. Introduction
The Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by CAT5E/6 cable. It also supports Transferring Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 50 meters outside, also you can control the Sink in the Source side which is 50 meters outside using the Splitter.
II. Features
Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.
Full HD support: 1080p@60Hz@24 bit/pixels.
HDMI local loop out for HDMI input.
Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
Operates for TMDS clock frequencies up to 165MHz.
single CAT-5E/6 cable to substitute HDMI cable to achieve long distances transmission.
UTP cable termination follows the standard of IEEE-568B.
Supports EDID control via EDID selector.
Transfer Bidirectional Infrared control signal together with theHDMI signal.
ANY CONCERNS PLEASE CONTACT :
SKYPE:stephen_hdcvt
