Introduction
The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Features
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
10bits HDR (High Dynamic Range) pass through
Supports CEC bypass
Specifications
Technical | |
HDMI Compliance |
HDMI 2.0b |
HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
Video Bandwidth |
18 Gbps |
Video Resolutions |
up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
Color Depth |
10-bit, 12-bit |
|
HDMI Audio Formats (Pass-through) |
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
Optical Audio Formats |
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
L/R Audio Formats |
Analog Stereo 2CH |
ESD Protection |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
Connections | |
Inputs |
1x HDMI Type A [19-pin female] |
Outputs |
1x HDMI Type A [19-pin female] |
Mechanical | |
Housing |
Metal Enclosure |
Color |
Black |
Dimensions |
73.5mm [W] x 60.7mm [D] x 17mm [H] |
Weight |
130g |
Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
Power Consumption |
1W (Max) |
Operation Temperature |
32 - 104°F / 0 - 40°C |
Storage temperature |
-4 - 140°F / -20 - 60°C |
Relative Humidity |
20 - 90% RH (no condensation) |
Operation Controls and Functions
Front Panel
DC 5V: Connect 5V/1A adaptor to AC wall outlet for power supply.
Power LED: System power indicator.
TV / Bit Stream / 2CH: This allows users to select audio format according to TV, Bit Stream or LPCM 2CH.
HDMI In: Connect this to HDMI source devices such as Blu-ray or PS4 player
Link LED: The LED will illuminate when detected HDMI input signal.

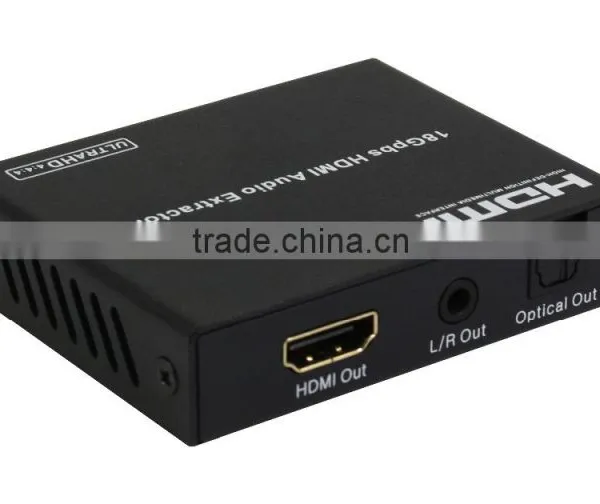

Rear Panel
HDMI Out: Connect to HDMI display devices such as TV
L/R Out: Connect to audio amplifier or TV L/R audio input port.
Optical Out: Connect to audio amplifier optical audio input port.

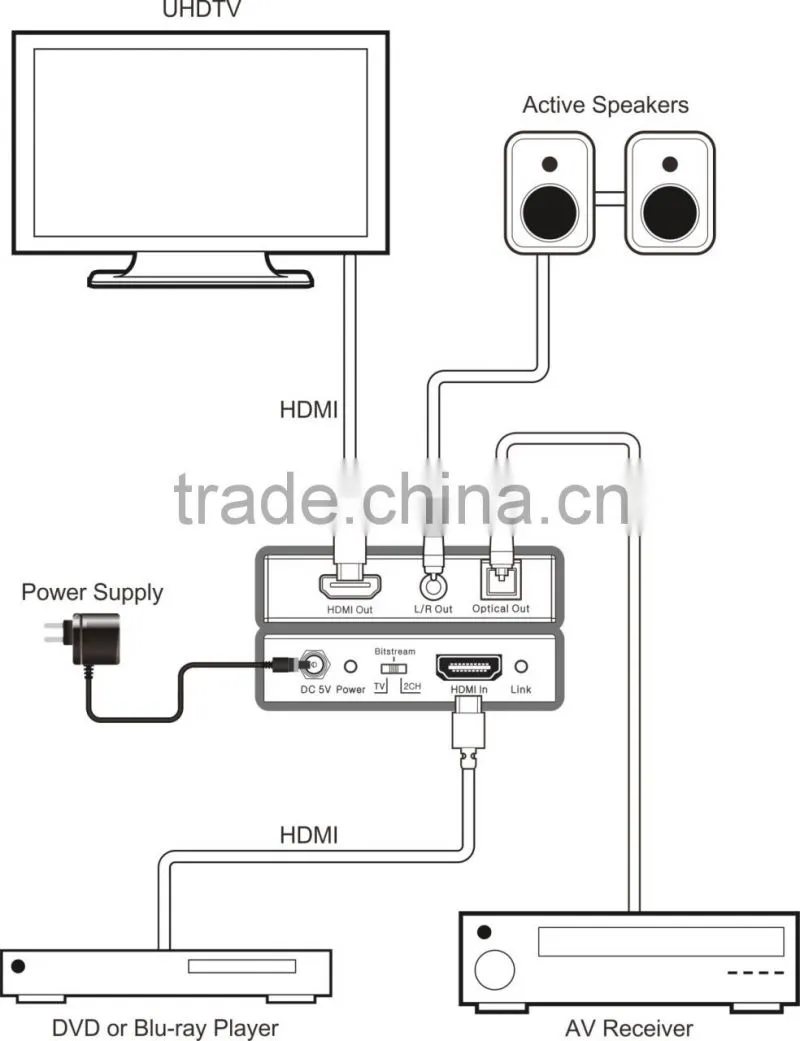

Connection Diagram
