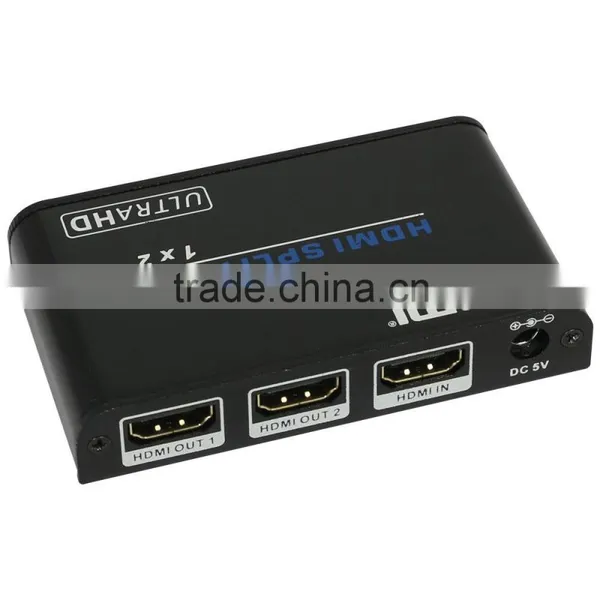

Help CenterUHD 1x2 HDMI Splitter, 4K*2k. Newest
Related Products
-
2015 HDMI Splitter 2 Port, Best PriceNegotiableMOQ: 100 Pieces -
HDMI Splitter,2ports, Factory OutletNegotiableMOQ: 100 Pieces
-
HDMI Splitter1 X 2 (2ports), Factory-outletNegotiableMOQ: 100 Pieces
-
HDMI Splitter1 X 2 (2ports), Hot SaleNegotiableMOQ: 100 Pieces
-
HDMI Splitter1 X 2 (2ports), High QualityNegotiableMOQ: 100 Pieces
Introduction
This 1 by 2 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs. It provides high performance audio and video output through HDMIcables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Package
UHD 1x2 HDMI Splitter---------------------------------1Pcs
5V/1A DC power adaptor-------------------------------1Pcs
User manual----------------------------------------------1pcs
Feature
- Ø Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
- Ø Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;
- Ø Support 3D frame sequential video format up to 1080p@60Hz;
- Ø Support high resolution VESA mode video format up to QSXGA@60Hz;
- Ø Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;
- Ø Support smart EDID control;
Specification
Video Bandwidth 300MHz/10.2 Gbps
Input Ports 1 x HDMI (Female type)
Output Ports 2 x HDMI (Female type)
Output Resolution
480i ~1080p50/60, 4Kx2K@24/30,
4k2k@60Hz with 12bit YCBCR 4:2:0,
VGA~UXGA
ESD Protection Human Body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/1A DC
Dimensions 56 mm (W) × 96 mm (D) × 17 mm (H)
Weight 100 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature
0 °C~40 °C/ 32 °F~104 °F
Storage Temperature
−20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity
20~90 % RH (non-condensing)
Power Consumption 1.5W
