UHD HDMI Splitter 2port, 4K*2k
Introduction

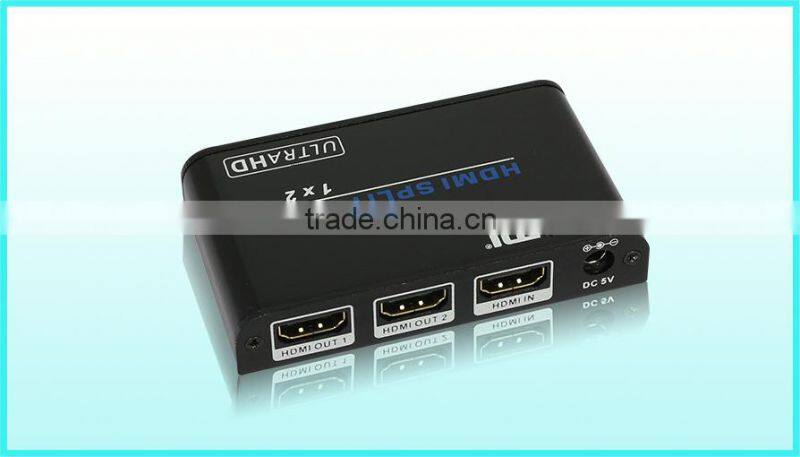

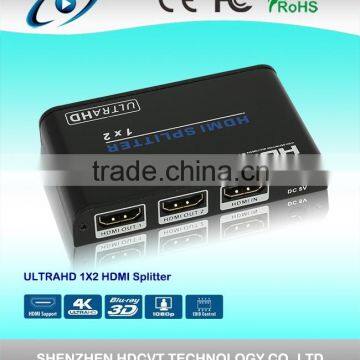

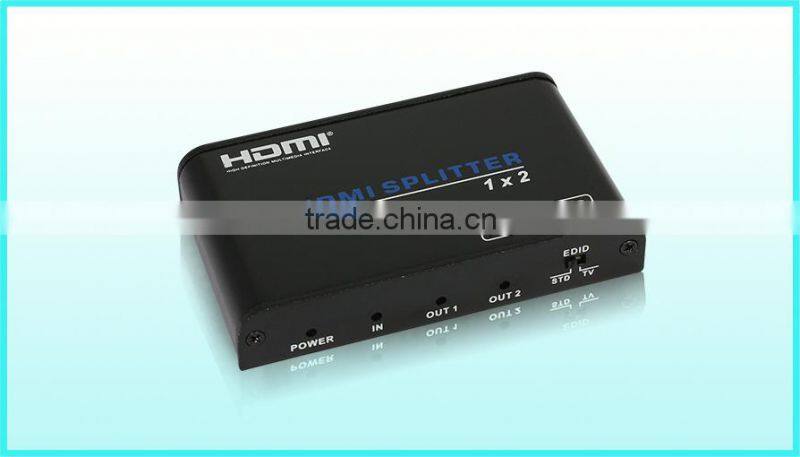

This 1 by 2 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs. It provides high performance audio and video output through HDMIcables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Feature
- Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
- Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;
- Support 3D frame sequential video format up to 1080p@60Hz;
- Support high resolution VESA mode video format up to QSXGA@60Hz;
- Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;
- Support smart EDID control;
Specification
Video Bandwidth 300MHz/10.2 Gbps
Input Ports 1 x HDMI (Female type)
Output Ports 2 x HDMI (Female type)
Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR 4:2:0,
VGA~UXGA
ESD Protection Human Body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/1A DC
Dimensions 56 mm (W) × 96 mm (D) × 17 mm (H)
Weight 100 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 1.5W
Package
UHD 1x2 HDMI Splitter---------------------------------1Pc
5V/1A DC power adaptor-------------------------------1Pc
User manual----------------------------------------------1pc
Shipping
Shenzhen HDCVT Technology Co., Ltd. was established in 2008. We are a high-tech video and HDMI product manufacturer in Shenzhen, China. With over five years of business, we have become a leading high top standard supplier of video switcher products and all kinds of AV-VGA, Video Converters and others. Our customers always satisfy you with our high quality goods and the best service.
