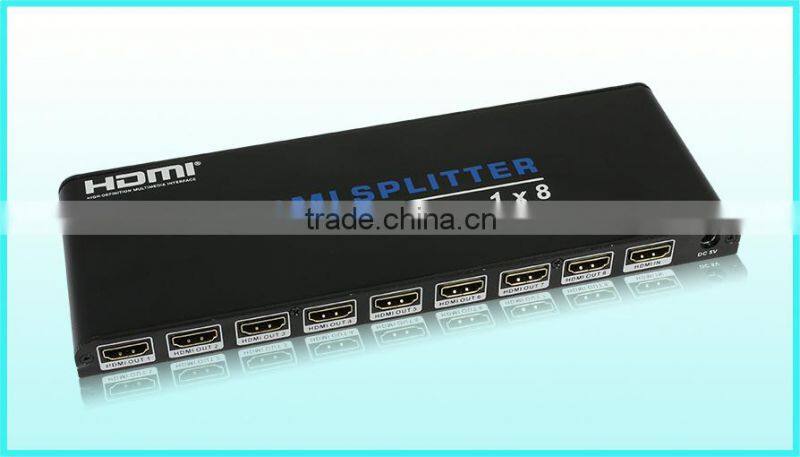

Ultra UHD HDMI Splitter 1 * 8, 4K*2k@60Hz

  UHD HDMI Splitter 1 in 8 out 4K*2k

This 1 by 8 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to eight HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

Feature

 Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

    2.  Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz           with 12bit YCBCR 4:2:0;

    3.  Support 3D frame sequential video format up to 1080p@60;

    4. Support high resolution VESA mode video format up to QSXGA@60Hz;

    5. Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;

    6. Support smart EDID control;

Specification

Video Bandwidth                    300MHz/10.2 Gbps

Input Ports                              1 x HDMI (Female type)

Output Ports                           8 x HDMI (Female type)

Output Resolution                 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR                                              4:2:0, VGA~UXGA

ESD Protection                       Human Body model: ±8 kV (air-gap discharge)

                                                                                  ±4 kV (contact discharge)

Power Supply                          5 V/2A DC

Dimensions                                     84 mm (W) × 235mm (D) × 17 mm (H)

Weight                                     360 g

Chassis Material                    Metal

Silkscreen Color                    Black

Operating Temperature        0 °C~40 °C/ 32 °F~104 °F

Storage Temperature            −20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity                  20~90 % RH (non-condensing)

Power Consumption             3.5W

Connect and Operate

1. Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Splitter input.
2. Connect the HDMI outputs from the HDMI Splitter to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI cables that are recommended for the distances that are required for each connection.
3. The Splitter is powered by an external power supply which is included. Connect power first to the source, then to the Splitter and then to each HD TV or projector.

1. HDMI OUT 1~8: Connect each of the HDMI outputs to an HDMI display for simultaneous HDMI distribution, or cascade the output to another transmitter to extend the operating distance.

2. HDMI IN: Connect the input port to the HDMI or DVI output of your source device such as a DVD player or set-top box with an HDMI cable.

3. DC 5V: Plug the 5V DC power supply into the unit and connected the adaptor to an AC outlet.

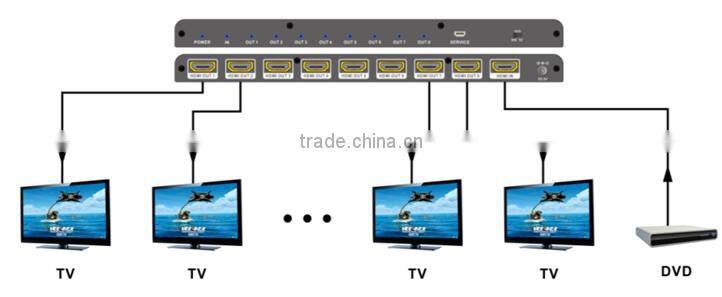

Connection Diagram
