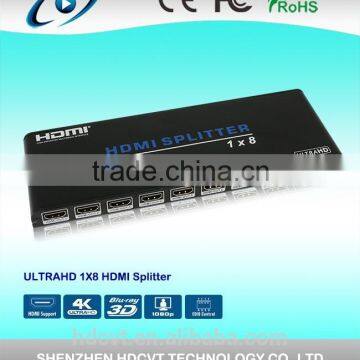

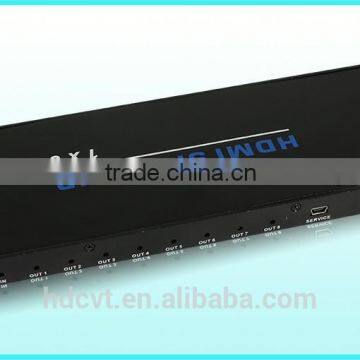

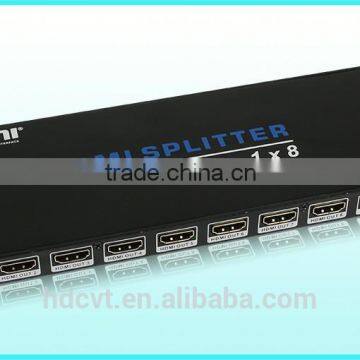

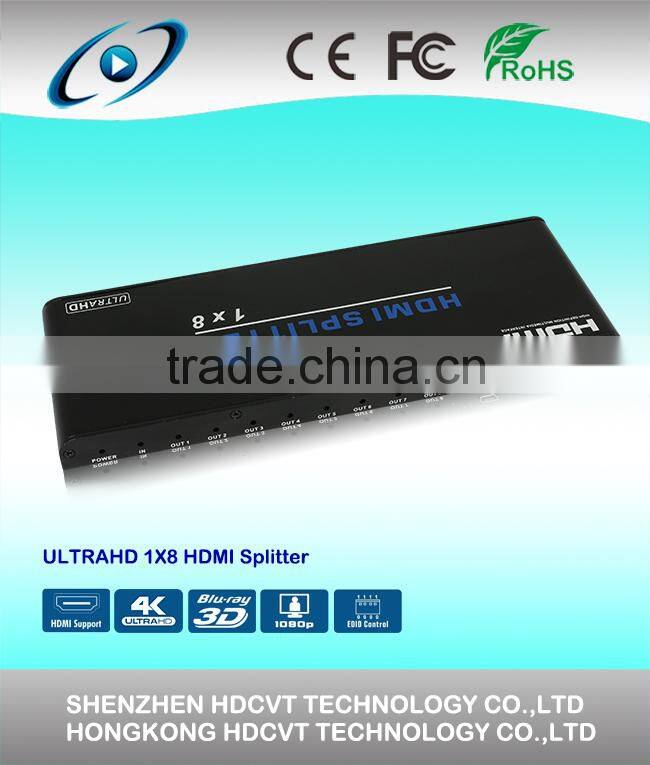

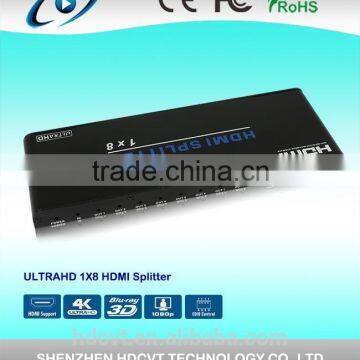

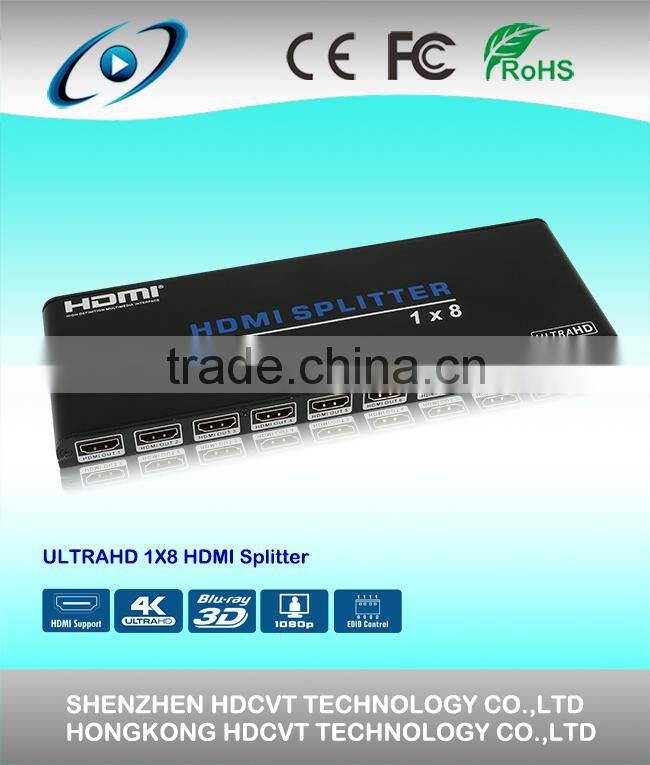

1:8 HDMI 4K Distribution Amp/Splitter , 2015 Latest

Introduction
This 1 by 8 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to eight HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

 Feature

Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;

Support 3D frame sequential video format up to 1080p@60;

Support high resolution VESA mode video format up to QSXGA@60Hz;

Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;

Support smart EDID control;

Specification

Video Bandwidth        300MHz/10.2 Gbps

Input Ports       1 x HDMI (Female type)

Output Ports            8 x HDMI (Female type)

Output Resolution      480i ~1080p50/60, 4Kx2K@24/30,

4k2k@60Hz with 12bit YCBCR 4:2:0,VGA~UXGA

ESD Protection            Human Body model:  ±8 kV (air-gap discharge)

                            ±4 kV (contact discharge)

Power Supply              5 V/2A DC

Dimensions               84 mm (W) × 235mm (D) × 17 mm (H)

Weight               360 g

Chassis Material          Metal

Silkscreen Color          Black

Operating Temperature             0 °C~40 °C/ 32 °F~104 °F

Storage Temperature    −20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity      20~90 % RH (non-condensing)

Power Consumption   3.5W

,

Package

UHD 1x8 HDMI Splitter---------------------------------1Pcs

5V/2A DC power adaptor-------------------------------1Pcs

User manual----------------------------------------------1pcs
