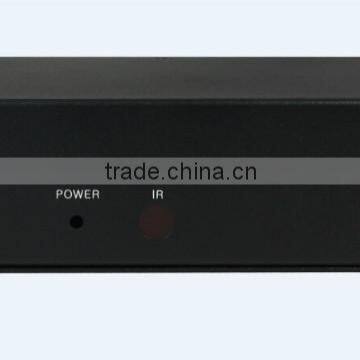

HDMI Splitter 1x4 , video wall controller high quality

Introduction

The 1 by 4 HDMI TV Wall support CVBS/VGA/HDMI/USB play input sources to be freely arranged on 4 displays. The embedded scaler converts signals from the input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to 1920x1080. All the operation and control can be done through IR, Ethernet and RS-232.

The HDMI TV Wall is widely used in KTV, hotels, bars, leisure centers, shopping malls, television stores ,cinemas, products display, media advertising, building, education and training, Brand stores, airports, subway, etc.

2. Feature

Compliant with HDMI1.3a, DVI1.0;

Output source signal to 4 displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction;

Supports IR, Ethernet and RS232 controls;

Supports cascade to 9 dispay(3 by 3 video wall) mode;

Supports CVBS/VGA/HDMI input and USB movie, picture and music playback;

Advanced video De-interlacer for improving 480i and 576i SD video input;

Support input formats:

CVBS: PAL, NTSC, SECAM with stereo audio input;

VGA:640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz with stereo audio input;

HDMI: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p,480i/p, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz;

USB: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG Picture decode and MPEG1/2, MP3 audio decode;

Support output resolution up to 1080p60Hz;

Perfectly as a video screen splitter, a video converter and a video switcher;

Package Contents

HDMI 1 x4 TV Wall                         1pcs

12V/2.5A DC power adaptor          1pcs

Operation Manual                1pcs

38KHz IR Receiver cable             1pcs

TV Wall Remote           1pcs

RS232 cable                     1pcs
