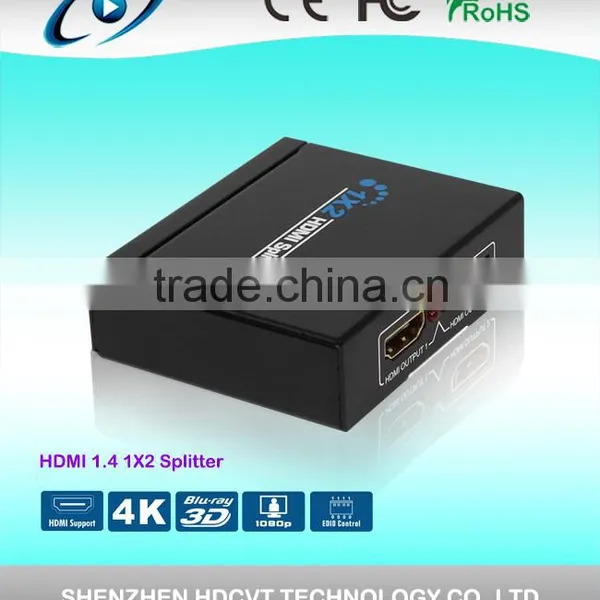

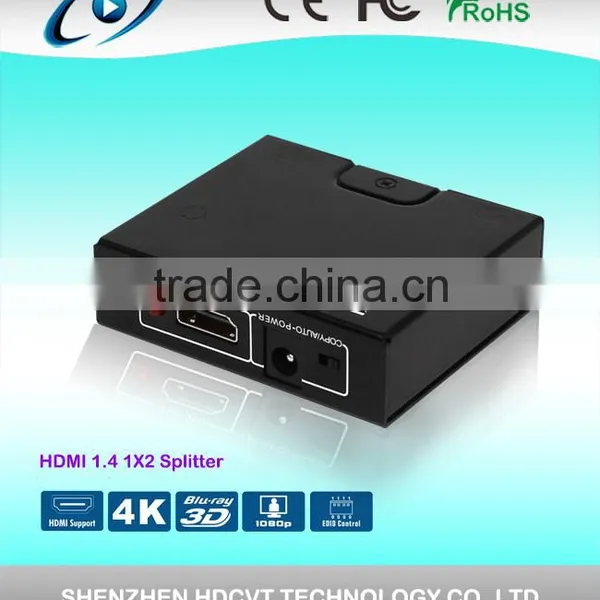

Splitter HDMI 2 ports, HDMI 1.4, 4K*2K with EDID

Introduction

1×2 HDMI Splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc..

Features

1. 1 HDMI input signal split to 2 HDMI sink devices.

2. HDCP 1.4 protocol compliant.

3. 3D HDMI 1.4a video format support.

4. 3D video support including frame packing for all 3D formats up to a 297MHz TMDS clock.

5. Support display resolutions up to 4K x 2K@30Hz,

1080P@120Hz,and 1080P 3D@60Hz

6. Support deep color 30bit, 36bit, 48bit per pixel.

7. Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD.

 Specifications

1. Frequency Bandwidth   2.97Gbps

2. Input                 1 x HDMI Female

3. Output                2 x HDMI Female

4. Power Supply           DC 5V 1A

5. ESD Protection Human Body Model:

           ± 8kV (air-gap discharge)

           ± 4kV (contact discharge)

6. Dimensions (mm)        60(W) X 70 (D) X 20 (H)

7. Weight                 125g

8. Operating Temperature         0°C ~ 40°C / 32°F ~ 104°F

9. Storage Temperature              -20°C ~ 60°C / -4°F ~ 140°F

10. Relative Humidity    20 ~ 90% RH (Non-condensing)

11. Power Consumption (Max)   5W

Operation controls and functions

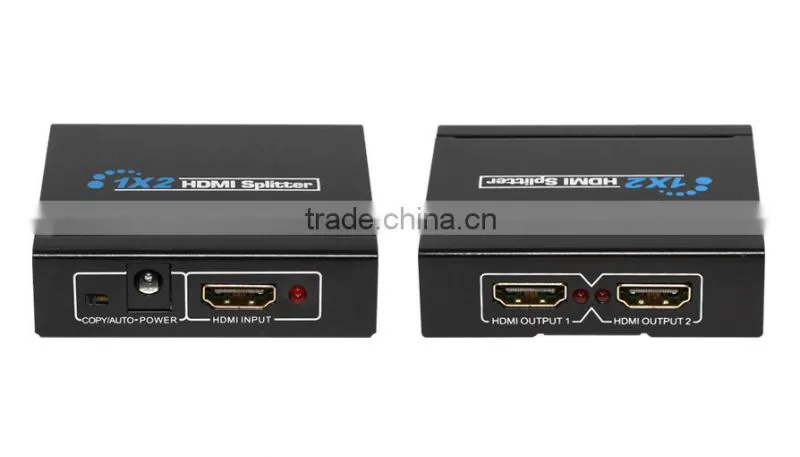

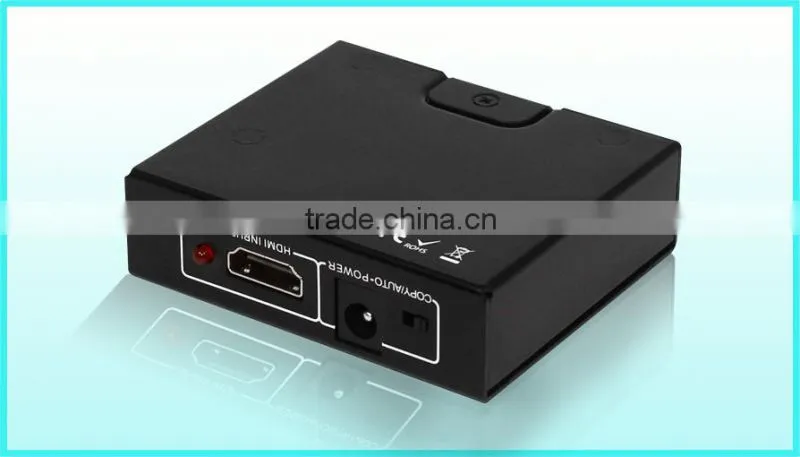

Front Panel

1.         EIDI Mode:

Copy Mode: copy output 2 EDID to input port.

Auto Mode: Compare output port 1 and 2 EDID.

2. DC 5V: Plug the 5V DC power supply into the unit and connect the adapter to AC wall outlet.

3. HDMI Input: This slot is where you connect the HDMI source output from DVD, PS3

4. Input LED: This red LED illuminate when the HDMI signal plug in.

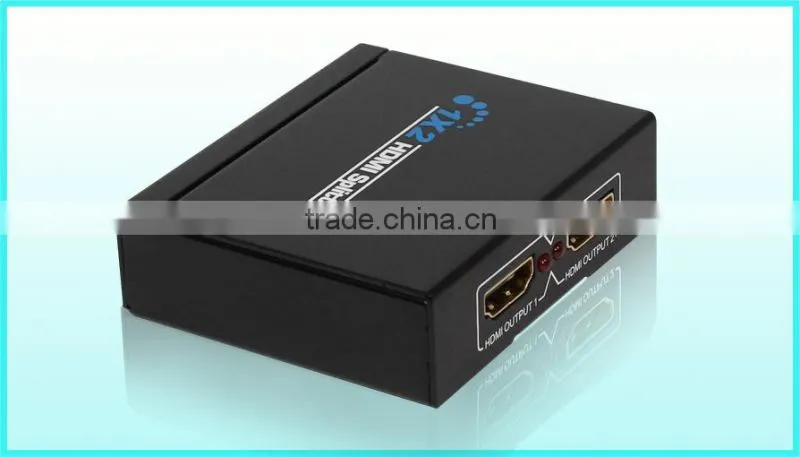

Rear Panel

1. Output 1: This slot is where you connect the HDTV or monitor with HDMI cable.

2. Output 1 LED: This red LED illuminate when the TV plug in HDMI output Port 1.

3. Output 2 LED: This red LED illuminate when the TV plug in HDMI output Port 2.

4.Output 2: This slot is where you connect the HDTV or monitor with HDMI cable.

Application Example

Packaging

1. HDMI Splitter 1*2 --------------------------------- 1unit

2. 5V1A DC Power Supply adapter ----------------- 1unit

3. Operation Manual ---------------------------------- 1unit
