HDMI to Coaxial Matrix Switcher 4by4with IR , RS-232 , TCP/TP, high quality

Specification

Input Ports                                     4×HDMI, 1×RS-232,1xRJ-45(Control), 1×IR EXT

Output Ports                                  4×BNC, 4xIR OUTPUT

Input Resolutions                           Support Up to 1920x1080P@60Hz

Output Resolutions                        Support Up to 1920x1080P@60Hz

Control                                           IR , RS-232 , TCP/TP , Buttons

ESD Protection                              Human-body Model:± 8kV (Air-gap discharge)

                                                                                      ± 4kV (Contact discharge)

Power Supply                                12 V/2.5 A DC (US/EU standards,CE/FCC/UL certified)

Dimensions                                    440mm (W)×200mm (D)×44.5mm (H)

Weight                                           2.265kg

Chassis Material                            Metal

Silkscreen Color                            Black

Operating Temperature                0 ºC~40 ºC/32 ºF~104 ºF

Storage Temperature                   −20 ºC~60 ºC/−4 ºF~140 ºF

Relative Humidity                          20~90 % RH (non-condensing)

Power Consumption                     18 W(Max)/1.5W(Standby)

Operation and Fuctions

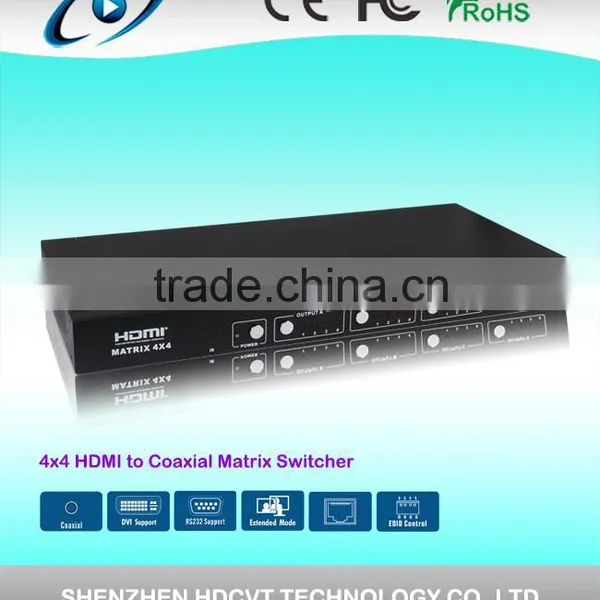

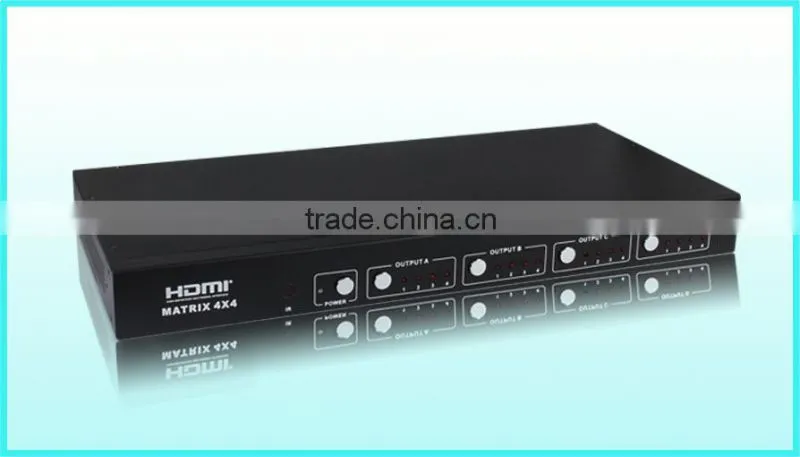

Front panel

Part 1.     IR:           IR Receiver window (accepts the remote control signal of this device only).

Part 2.     POWER:    Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.

Part 3.     OUTPUT A/B/C/D: Press the OUTPUT A/B/C/D button to select the output corresponding input, and at the same time for the LED will light.

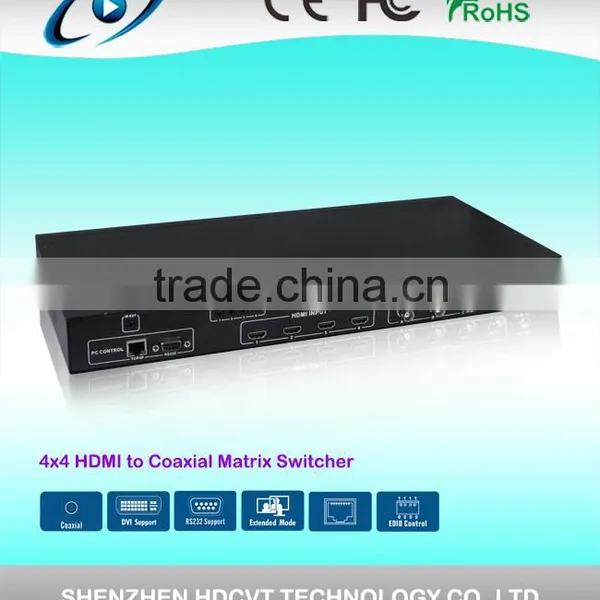

Rear panel

Part4: IR EXT: if the panel sensor is obstructed or the unit is installed in a closed area out of infrared line of sight, the IR RX receiver included can be inserted into the IR EXT port at the rear to extend the IR sensor range and enable local control of the matrix.

Port5:TCP/IP: This port is the link for TCP/IP controls, connect to an active Ethernet link with an RJ45 terminated cable.

Port6: RS232: Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands.

Port7: IR OUT: Super IR control system interface. For further details, please refer to the Super IR system control introduction.

Part8: HDMI INPUT

Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable.

Part9: COAX OUTPUT

The COAX OUTPUT is connected to the CoaxialReceiver.

Part10: DC POWER INPUT

Plug the 12V/2.5A DC power supply into the DC12V power in.

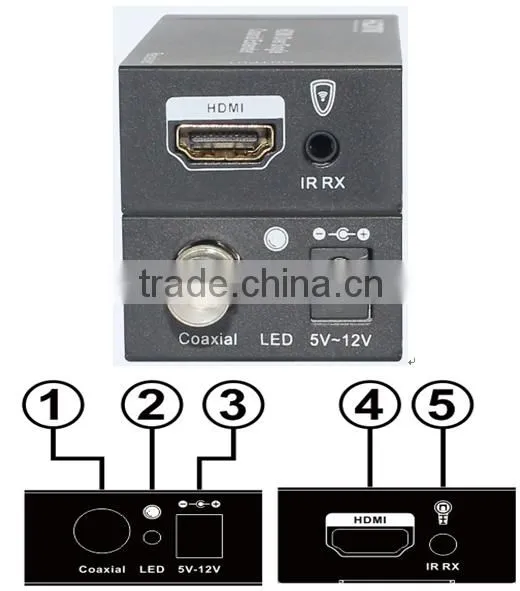

1.  Coaxial IN: This slot is where you connect the 4x4 HDMI to Coaxial Matrix output port with RG6 cable.
2.  POWER LED: This red LED illuminate when the device is connected with power supply.
3.  DC IN: Plug the 5V-12V DC power supply into the unit.
4.  HDMI OUT: This slot is where you connect the HDTV or monitor with HDMI cable.
5.  IR RX: Connect with Wideband IR Rx.

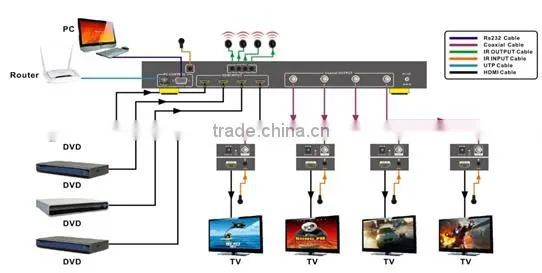

Connection Diagram
