HDMI USB KVM Extender
over Cat5e/Cat6
(HDBaseT)
Introduction
The HDMI USB KVM (Keyboard, Video, Mouse) Extender is a tool which can extend your HDMI signal over 328fts/100meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by CAT5e/CAT6/CAT7 cable. It also supports Transfer Bidirectional Infrared control signal and RS232 control signal. With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection. It also supports the connection of USB host and 2 USB device ports. So you can control the Source in the Sink side which is 328fts outside, also you can control the Sink in the Source side which is 328fts outside using the HDMI Extender.
Features
1. Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K@60Hz with YCbCr 4:2:0 ).
2. HDCP2.2 and DVI compatible.
3. Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable up to 100m/328ft.
4. Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more.
5. POE(Power Over Ethernet)function support, either TX or RX powered 24V@1A,another don’t need power form the DC jack.
6. Full HD support: 1080p@60Hz@24/36/48bit/pixels.
7. Supports USB 2.0 control.
8. Supports external Bi-Directional SPDIF IN/OUT and available for multichannel audio.
9. Supports stereo audio with PCM 2CH.
10. Transfer Bidirectional Infrared control signal together with the HDMI signal.
11. Transfer Bidirectional RS232 control signal together with the HDMI signal.
12. Transfer Bidirectional Ethernet signal together with the HDMI signal.
Specifications
1. Video Bandwidth 340MHz/10.2Gbps
2. Transmitter
Input Ports 1x HDMI, 1xLAN, 1xUSB-H,1xIR in, 1x Audio in, 1xRS232,1xOptical (Spdif in),
Output Ports 1xIR out, 1xOptical (Spdif out),1xHDBaseT OUT, 2xUSB-D
3. Receiver
Input Ports 1xIR in, 1xOptical (Spdif in),1xHDBaseT IN, 1xUSB-H
Output Ports 1x HDMI, 1xLAN, 2xUSB,1xIR out, 1x Audio out, 1xRS232,1xOptical (Spdif out),
4. Power Supply DC 24V 1A
5. ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
6. Dimensions (mm) 160(W) X 97 (D) X 28 (H)
7. Weight 450g/TX, 450g/RX
8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity 20~90% RH (Non-condensing)
11. Power Consumption (Max) 12W
Operation controls and Functions
Transmitter Front Panel
1. Indicator LED:
Power LED: illuminates when power has been supplied to the unit.
Link LED: The connection status indicating lamp.
- Illuminate: The Transmitter and Receiver is good connections.
- Flashing: The Transmitter and Receiver is poor connections.
- Dark: The Transmitter and Receiver is no connections.
HDCP LED: The HDCP status indicating lamp.
- Illuminate: The HDMI signal with HDCP.
- Flashing: The HDMI signal without HDCP.
- Dark: No HDMI signal.
FW LED:Light is flashing on behalf of the unit work normally
2. IR IN: Chanel 1 IR Receiver.Connect with Wideband IR Rx.
3. IR OUT: Chanel 2 IR Transmitter. Connect with Wideband IR Tx.
4. RS232 TX/RX: Connect to a PC or Laptop with 3-pin Relay cable for the transmission of RS-232 commands.
5. AUDIO IN: Connect to a PC or Laptop stereo output port via 3.5mm audio cable.
6. USB-D:Connect to USB peripheral devices such as printer, keyboard, mouse, flash driver or …etc.
7. USB-H:Connect from PC or Laptop for data transmit to or control from the Receiver’s USB-D slots.
8. USB-H/USB-D SELECT: Select USB host or USB device.
Note: If the unit work to change the state, required again to power supply.

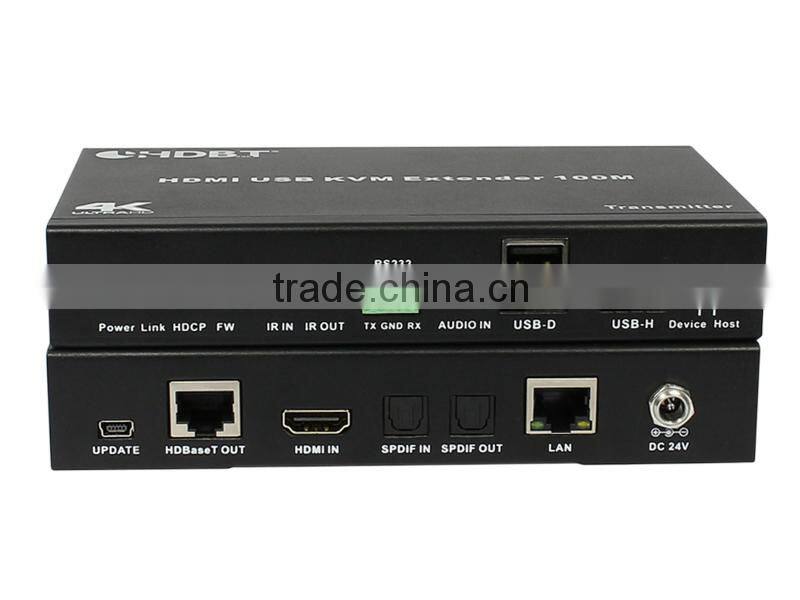

Transmitter Rear Panel

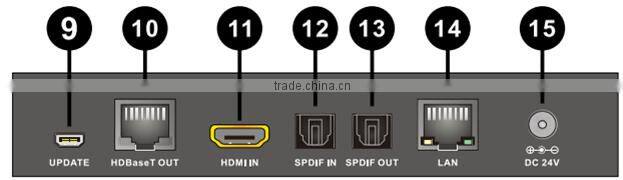

9. UPDATE:Reserved for manufacturer use only.
10. HDBaseT OUT: Standard HDBaseT signal output port. Connect HDBaseT receiver with a Cat5e/6/7 cable.
11. HDMI IN: This slot is where you connect the HDMI source.
12. SPDIF IN(Optical in): Connect to audio source equipment such as DVD or Blu-ray player for audio signal sending to Receiver’s SPDIF OUT(Optical out).
13. SPDIF OUT(Optical out): Connect to speaker with coaxial input for audio signal output from Receiver’s SPDIF IN(Optical in).
13. LAN: This slot provide Internet signal from receiver or to receiver.
14. DC IN: Plug the 24V DC power supply into the unit.

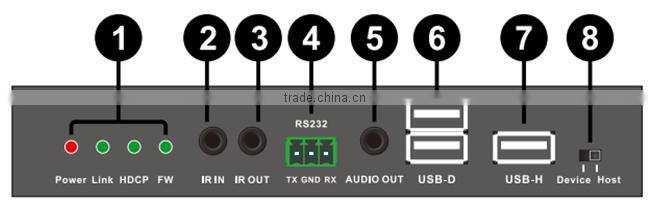

Receiver Front Panel
1. Indicator LED:
Power LED: illuminates when power has been supplied to the unit.
Link LED: The connection status indicating lamp.
- Illuminate: The Transmitter and Receiver is good connections.
- Flashing: The Transmitter and Receiver is poor connections.
- Dark: The Transmitter and Receiver is no connections.
HDCP LED: The HDCP status indicating lamp.
- Illuminate: The HDMI signal with HDCP.
- Flashing: The HDMI signal without HDCP.
- Dark: No HDMI signal.
FW LED:Light is flashing on behalf of the unit work normally
2. IR IN: Chanel 1 IR Receiver.Connect with Wideband IR Rx.
3. IR OUT: Chanel 2 IR Transmitter. Connect with Wideband IR Tx.
4. RS232 TX/RX: Connect to the devices (project…etc) that is to be controlled via 3-pin Relay cable by RS-232 commands.
5. AUDIO OUT: Connect to speaker via 3.5mm audio cable.
6. USB-D:Connect to USB peripheral devices such as printer, keyboard, mouse, flash driver or …etc.
7. USB-H:Connect from PC or Laptop for data transmit to or control from the Receiver’s USB-D slots.
8. USB-H/USB-D SELECT: Select USB host or USB device.
Note: If the unit work to change the state, required again to power supply.

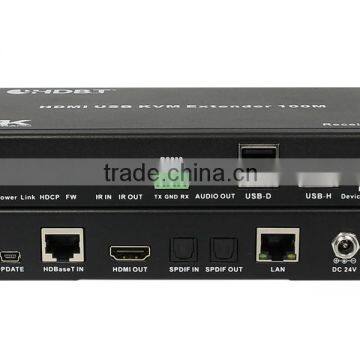

Receiver Rear Panel

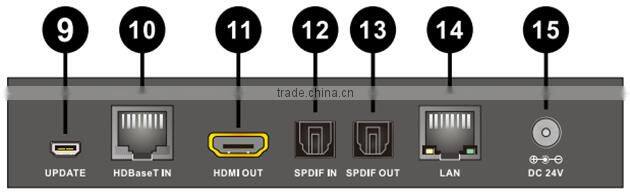

9. UPDATE:Reserved for manufacturer use only.
10. HDBaseT IN: Standard HDBaseT signal output port. Connect HDBaseT Transmitterwith a Cat5e/6/7 cable.
11. HDMI OUT: This slot is where you connect the a HDMI equipped TV/monitor.
12. SPDIF IN(Optical in): Connect to audio source equipment such as DVD or Blu-ray player for audio signal sending to Transmitter’s SPDIF OUT(Optical out).
13. SPDIF OUT(Optical out): Connect to speaker with coaxial input for audio signal output from Transmitter’s SPDIF IN(Optical in).
14. LAN: This slot provide Internet signal from receiver or to receiver.
15. DC IN: Plug the 24V DC power supply into the unit.

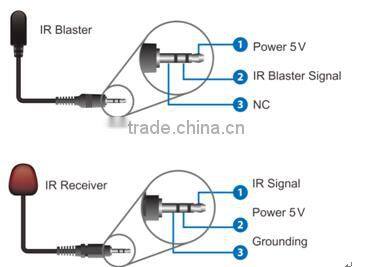

IR Cable Pin Assignments
Connection Diagram

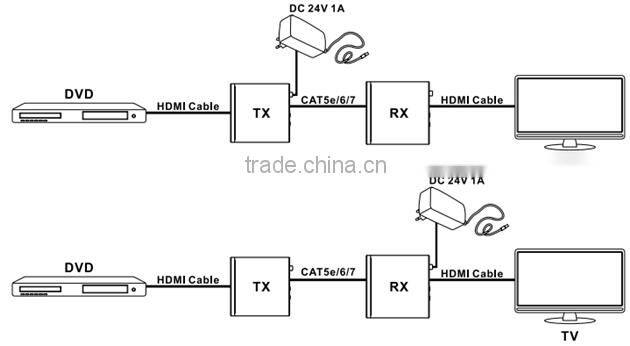

POE(Power Over Ethernet) Application Example

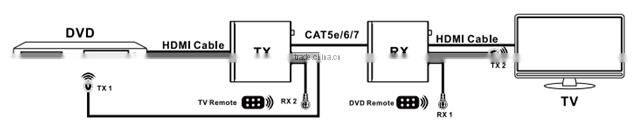

Bidirectional Infrared control Application Example

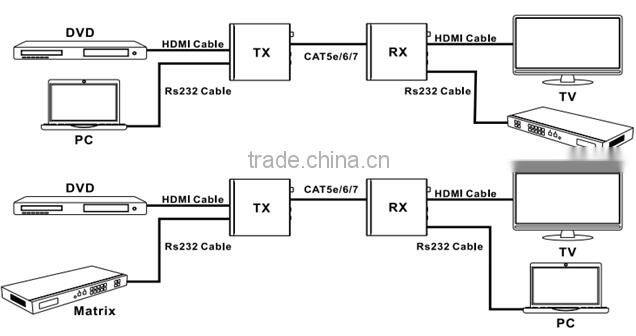

Bidirectional RS232 control Application Example

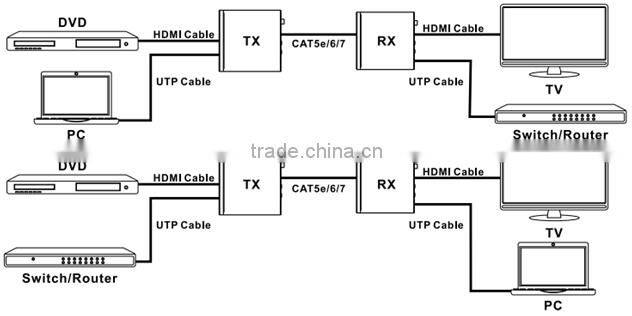

Bidirectional Ethernet signal Application Example
USB control Application Example

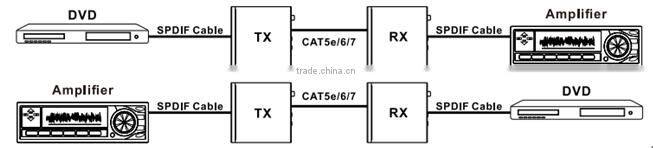

Digital Audio bidirectional transmission Application Example
Package
1. HDMI USB KVM Extender Transmitter ----------------------------- 1PC
2. HDMI USB KVM Extender Receiver --------------------------------- 1PC
3. Wideband IR Tx --------------------------------------------------------- 2PCS
4. Wideband IR Rx --------------------------------------------------------- 2PCS
5. 24V/1A DC power adaptor ---------------------------------------------- 1PC
6. Operation Manual ------------------------------------------------------ 1PC
7. Phoenix male jack-------------------------------------------------------2PCS
8. Mounting ears------------------------------------------------------------4PCS
