HDMI Extender over single 50m/164ft UTP Cables with Dual IR Control
Introduction
The cat5e/cat6 HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to standard HD BaseT signal which can be transmitted by Internet cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230fts outside, also you can control the Sink in the Source side which is 230fts outside using the HDMI Extender.
Features
1. POE(Power Over Ethernet)function is supported, either TX or RX is powered by24V@1A power supply, another does not need power from the DC jack. POE Power consumption is less than 10W. See the description 1
2. Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
3. UTP cable termination follows the standard of IEEE-568B.
4. Transmission distance: Over CAT6 cable
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
5. Support display resolutions up to 4K x 2K@30Hz
6. Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels,
3D 1080P60Hz and 4K x 2K@30Hz@24bit
7. Transfer Bidirectional Infrared control signal together with the HDMI signal.
See the description 2.
Specifications
1. Frequency Bandwidth 297MHz[10.2Gbps]
2. Transmitter Input/Output Ports 1x HDMI Female port/1xCAT6
1x IR Tx/1x IR Rx
3. Receiver Input/Output Ports 1xHDMI Female port/1xCAT6
1x IR Tx/1x IR Rx
4. Power Supply DC 24V 1A
5. ESD Protection Human Body Model:± 8kV (air-gap discharge)
± 4kV (contact discharge)
6. Dimensions (mm) 65(W) X 100 (D) X 25 (H)
7. Weight 200g x 2
8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity 20~90% RH (Non-condensing)
11. Power Consumption (Max) 10W
Operation controls and Functions

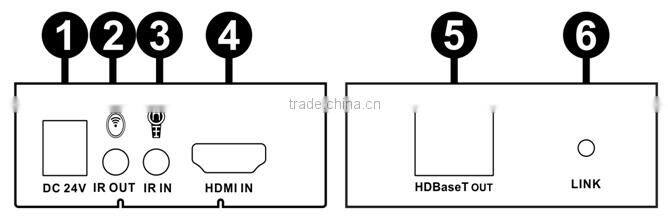

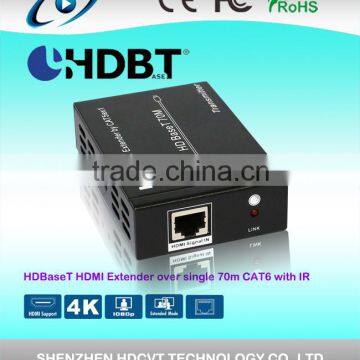

Transmitter
1. DC IN: Plug the 24V DC power supply into the unit.
2. IR OUT: Channel 1 IR Transmitter. Connect with Wideband IR Tx.
3. IR IN: Channel 2 IR Receiver. Connect with Wideband IR Rx.
4. HDMI IN: HDMI input port.This slot is where you connect the HDMI source.
5. HD BaseT OUT: Standard HD BaseT signal output port. Connect HD BaseT receiver with a UTP cable following the standard of IEEE-568B.
6. LINK LED: The connection status indicating lamp.
Illuminate: The Transmitter and Receiver are in good connections
Flashing: The Transmitter and Receiver are in poor connections
Dark: The Transmitter and Receiver are in no connections

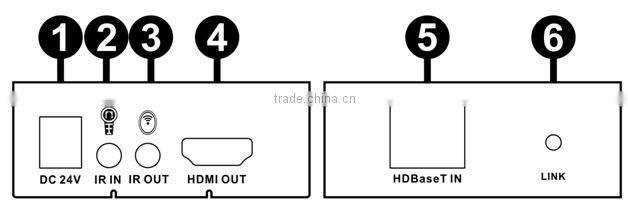

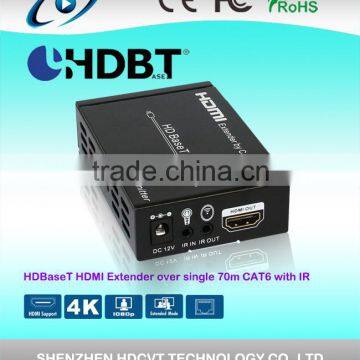

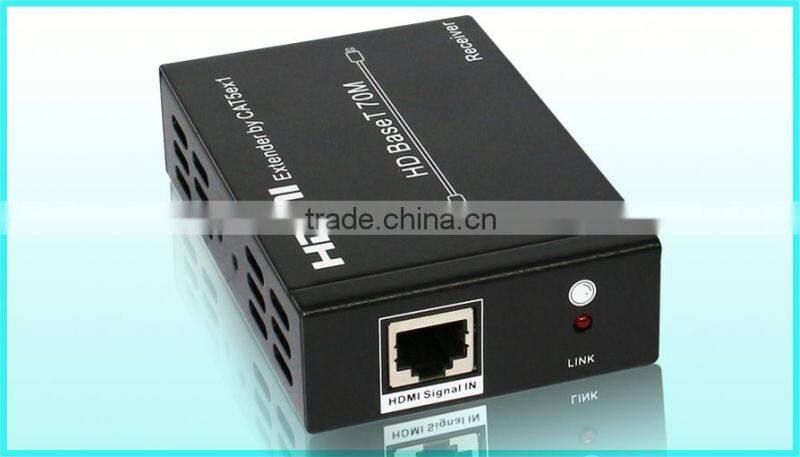

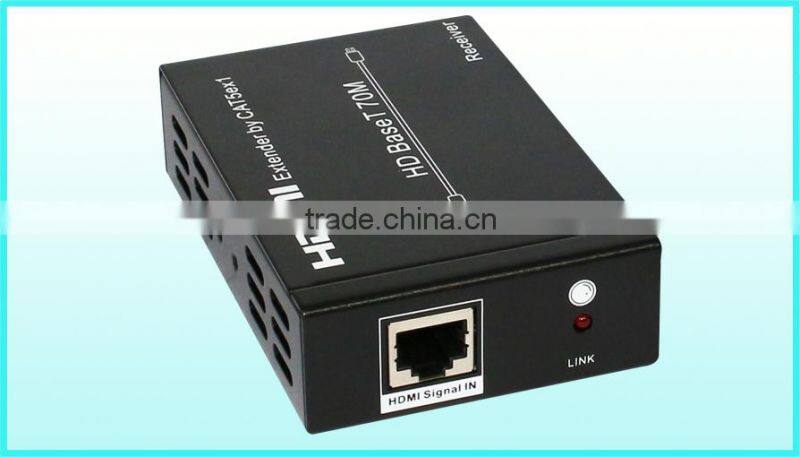

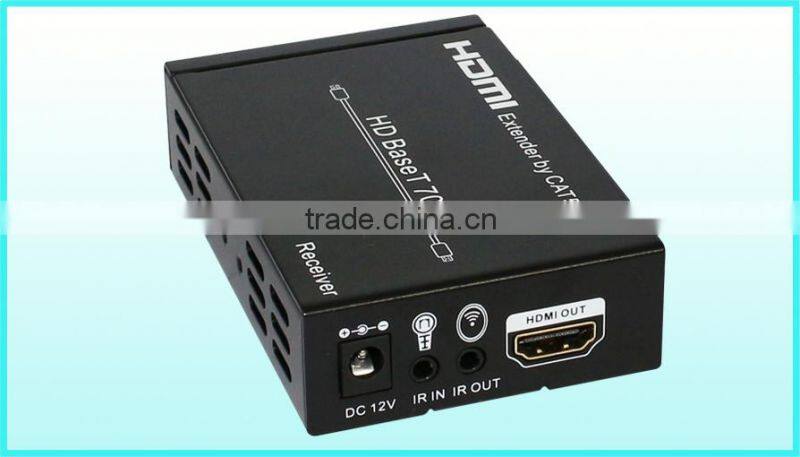

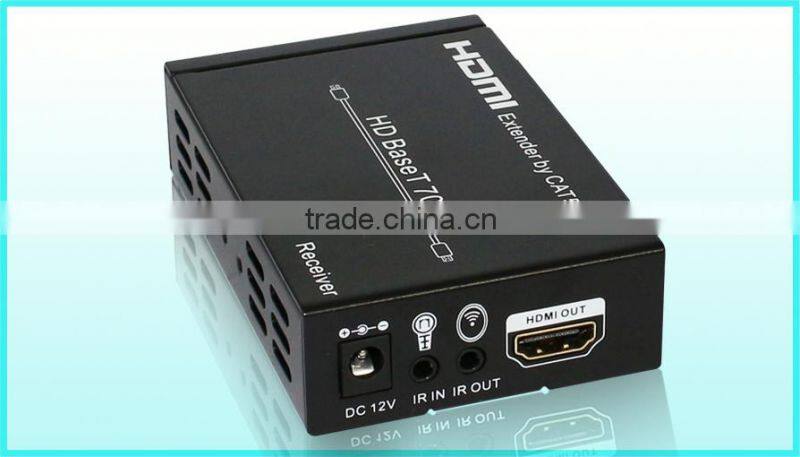

Receiver
1. DC IN: Plug the 24V DC power supply into the unit.
2. IR IN: Channel 1 IR Receiver. Connect with Wideband IR Rx.
3. IR OUT: Channel 2 IR Transmitter. Connect with Wideband IR Tx.
4. HDMI OUT: HDMI output port.This slot is where you connect the HDTV or monitor with HDMI cable.
5. HD BaseT IN: Standard HD BaseT signal input port. Connect HD BaseT transmitter with a UTP cable following the standard of IEEE-568B.
6. LINK LED: The connection status indicating lamp.
Illuminate: The Transmitter and Receiver are in good connections
Flashing: The Transmitter and Receiver are in poor connections
Dark: The Transmitter and Receiver are in no connections
Description 1

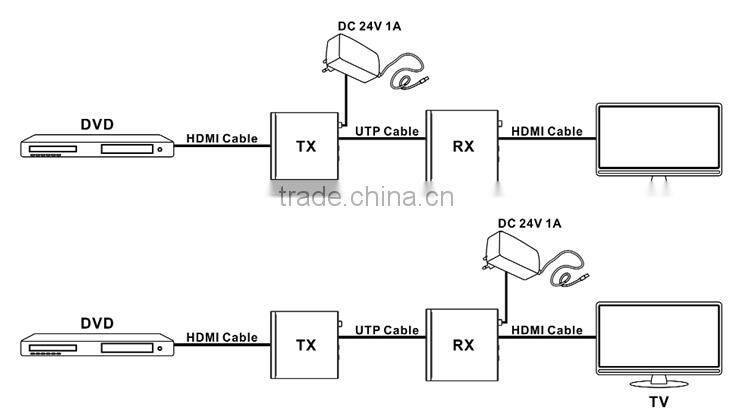

POE(Power Over Ethernet) Application Example
Description 2

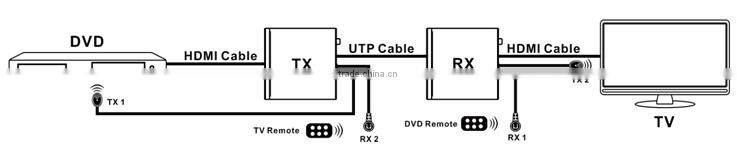

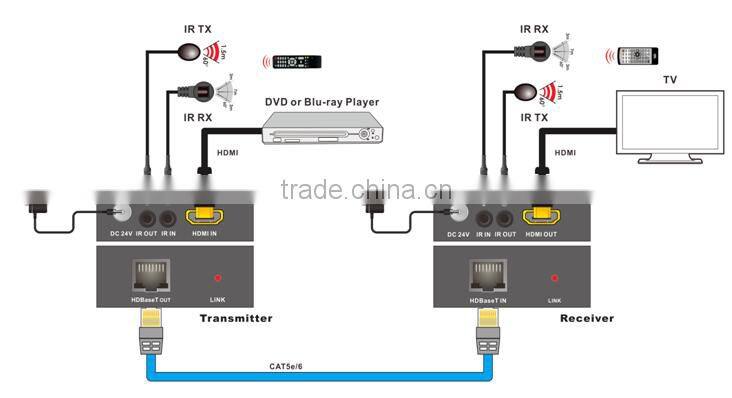

Bidirectional Infrared control Application Example
Application Example
Packaging
1. HDMI Extender Transmitter ------------------------------------------ 1PC
2. HDMI Extender Receiver ---------------------------------------------- 1PC
3. Wideband IR Tx --------------------------------------------------------- 2PCS
4. Wideband IR Rx --------------------------------------------------------- 2PCS
5. 24V1A DC Power Supply ---------------------------------------------- 1PC
6. Operation Manual ------------------------------------------------------ 1PC
7. Mounting ears------------------------------------------------------------4PCS
