HDMI Extender over single 50m/164ft UTP Cables with IR Control
Introduction
The HDMI Extender over Single Cat5e/6 with IR extends high de inition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS- HD or Dolby TrueHD audio is supported and compatible with the extender. In addition, the extender is also equipped with pass-through which allows for source control.

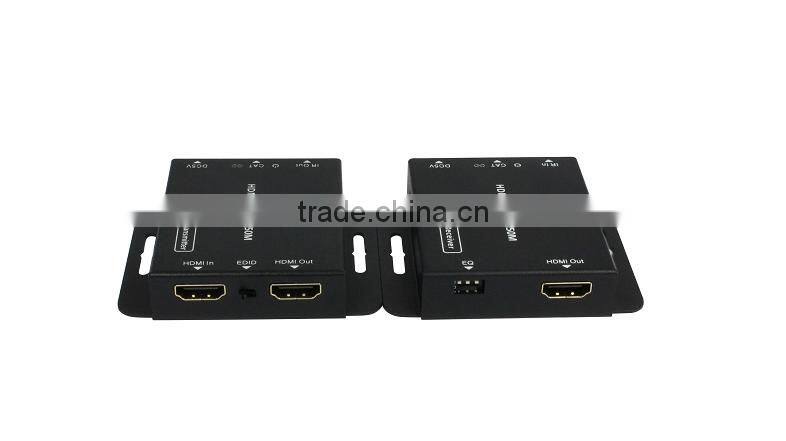

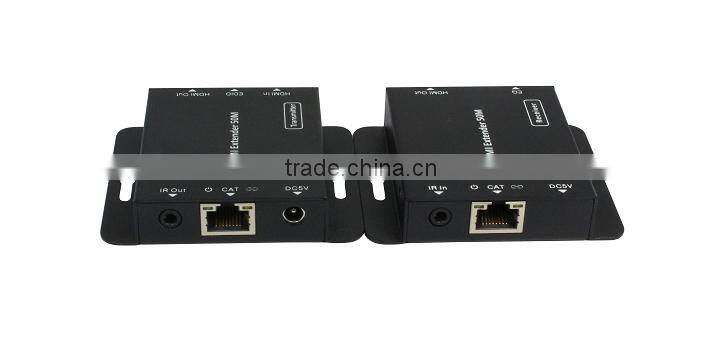

The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals. The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Feature
- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
- Support copy EDID from receiver display or loop out display.
- Allows for cascading via additional HDMI loop out port.
- Support Power over cable function.
- Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.
- Works with HDMI and HDCP compliant devices.
- Supports up to 1080p High Definition resolution.
- Compact design for an easy and lexible installation.
Specification
Video Bandwidth |
Single-link 165Mhz [ 4.95Gbps] |
Video Support |
480i/480p/720p/1080i/1080p @60 |
Audio Support: |
Surround Sound (up to 7.1 ch) or |
|
stereo digital audio |
Transmission Range: HD [1080p 24-bit color] – up to
Input TMDS Signal |
3.3 volts |
50m [164ft] |
Input DDC Signal |
5.0 volts/P-P |
|
ESD Protection: |
Human Body model:+/- 8 kV |
|
|
(air-gap discharge) |
|
HDMI connector |
+/- 4 kV (contact discharge) |
|
Type A 19 pin female | ||
RJ-45 connector |
WE/SS 8P8C |
3.5mm connector |
(TX and RX) IR Receiver/IR Blaster |
MECHANICAL SPECS |
Metal enclosure |
Housing | |
Power Supply |
(1) 5V1A DC |
Power consumption |
1.5 watts (TX); 1.0 watts (RX) |
Operation temperature |
32~104 °F |
Storage temperature |
-4 ~140 °F |
Relative humidity |
20~90 % RH (no condensation) |
Package
HDMI Transmitter ---------------1pc
HDMI Receiver ---------------1pc
Windband IR Tx cable ---------------1pc
Windband IR Rx cable ---------------1pc
5V1A DC Power Supply Adaptor ---------------1pc
Product Manual ---------------1pc
