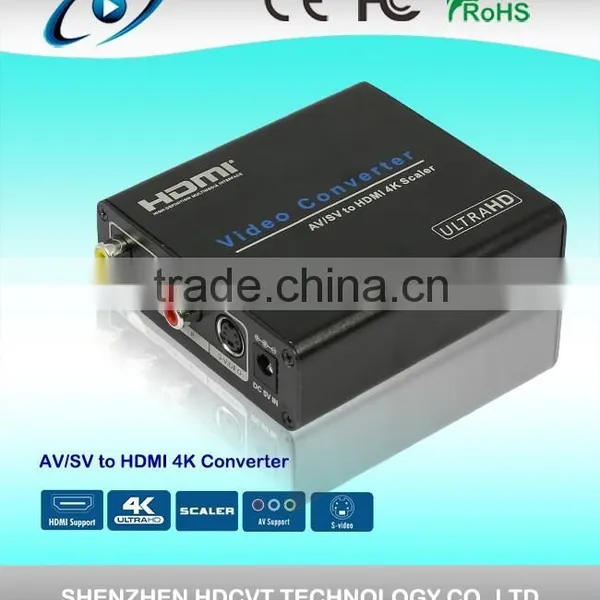

AV/SV to HDMI 4Kx2K Scaler Converter Box
Introduction
The AV/SV to HDMI 4Kx2K Scaler Converter is a universal converter for analog composite input to HDMI 4Kx2K@60Hz output. The analog to digital conversion in this module employs 10 bits maximal 297MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to HDMI output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
Feature
- No need to install drivers, portable, flexible, plug and play.
- Provide advanced signal processing with great precision, colors, resolutions, and details.
- Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats input.
- Support HDMI 4Kx2K@60Hz, 4Kx2K@30Hz,1080p@60Hz or 720p@60Hz output.
Specification
Input ports: 1xRCA (Yellow, White, Red). 1x S-Video, 1 x Min- USB
Output ports: 1xHDMI
Dimensions(mm): 93(D)x84(W)x28(H)
Wight (g): 165g
CVBS/S-VIDEO input: PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats
HDMI output resolution: 4Kx2K@60Hz,4Kx2K@30Hz,1080P@60Hz,720P@60Hz
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 3.5W
ESD Protection Human Body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)

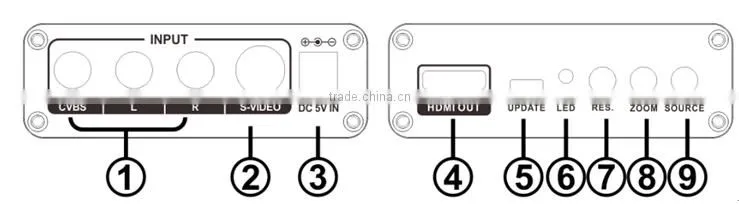

Connect and Operate

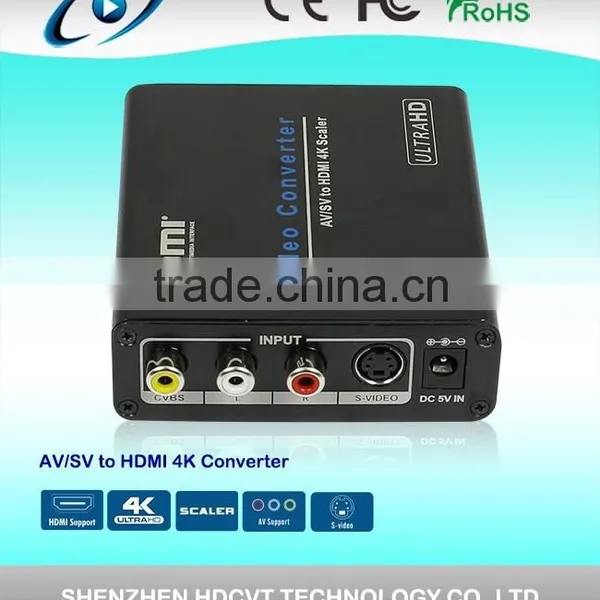

- CVBS/L,R input: Connect the CVBS/L,R port to the input port of your source equipment such like DVD player.
- S-VIDEO input: Connect the S-VIDEO port to the input port of your source equipment such like Camera.
- DC 5V IN: Connect the 5V DC power supply into the Converter.
- HDMI OUT:The HDMI OUT connect to HDMI equipped TVs or monitors.
- UPDATE:System software update.
- Power LED: This red LED illuminate when the device is connected with power supply.

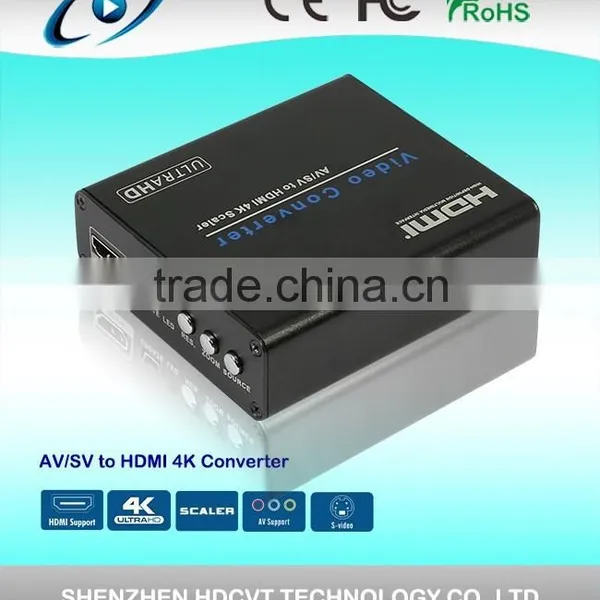

- Resolution Button: Press this button to select the output resolution.
- ZOOM Button: Press this button the scaling of the output picture.
- SOURCE Button: Press this button to switch between CVBS and SV.
Connection and Installation
- Connect the CV/SV port to the input port of your source equipment such like DVD player.
- Connect the analog audio input port to the output port of your analog audio equipment.
- Connect a display such as a monitor, TV or Projector to the HDMI output on the Converter.
- Power on the device and display.
Package
AV/SV to HDMI 4Kx2K Scaler Converter --------------------------------1unit
5V/1A DC power adaptor------------------------------1unit
User manual----------------------------------------------1unit
Shipping
Shenzhen HDCVT Technology Co., Ltd. was established in 2008. We are a high-tech video and HDMI product manufacturer in Shenzhen, China. With over five years of business, we have become a leading high top standard supplier of video switcher products and all kinds of AV-VGA, Video Converters and others. Our customers always satisfy you with our high quality goods and the best service.
