New arrival 4Kx2K HDMI Audio Decoder

n   Operation controls and Fuctions

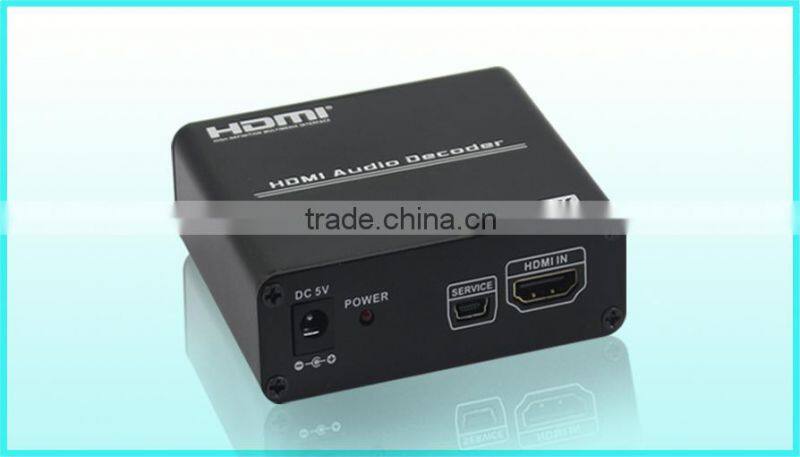

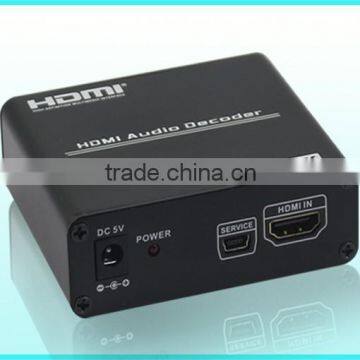

1. 1.         DC 5V: Connect the 5V DC power supply into the decoder.
2. 2.         POWER LED: This red LED illuminate when the device is connected with power supply.
3. 3.         SERVICE: Firmware update port.
4. 4.         HDMI input: These slot is where you connect the HDMI source output from DVD, PS3,Set-top Box or Note Book.

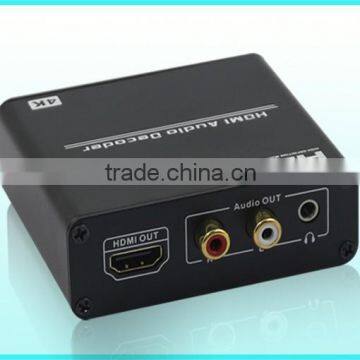

5. 5.         HDMI OUT: This slot is where you connect the HDTV or monitor with HDMI cable for input source display.
6. 6.         AUDIO OUT: These slot is where you connect to the audio amplifier or speaker with RCA cable or 3.5mm earphone cable.

n   Application Example

1. 1.   Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the Docoder HDMI input.
2. 2.   Connect a display such as an TV or Projector to the HDMI output on the Decoder.

1. 3.   Connect the audio out to the audio amplifier or headphone by RCA or earphone cable.
2. 4.   Power on the device and display.

n   Audio Format Convert



n   Connect diagram
