Help CenterHuge Vacuum Lifter for Larger Parts
Related Products
-
Plate Suction Pad for SaleUS$ 1,000 - 17,000MOQ: 1 Set -
Huge Suction Pad for SaleUS$ 1,350 - 20,000MOQ: 1 Set
-
Hot Sale Steel Plate Suction CupUS$ 1,000 - 17,000MOQ: 1 Set
-
Huge Steel Plate Vacuum Lifting EquipmentUS$ 1,350 - 20,000MOQ: 1 Set
-
Metal Plate Suction Lifting SystemUS$ 1,100 - 17,000MOQ: 1 Set

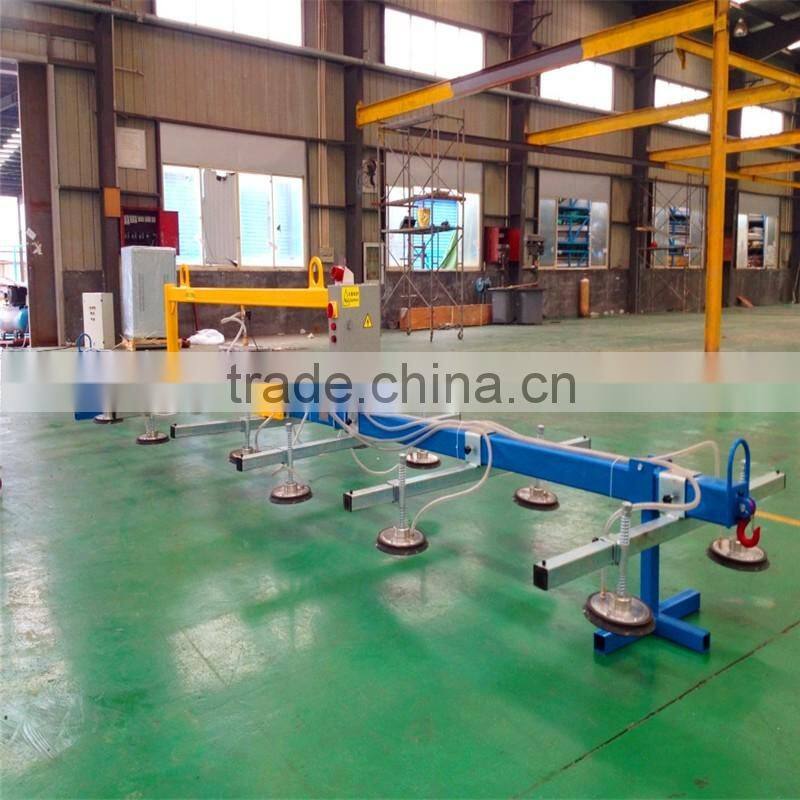

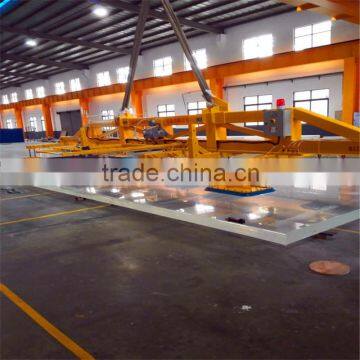

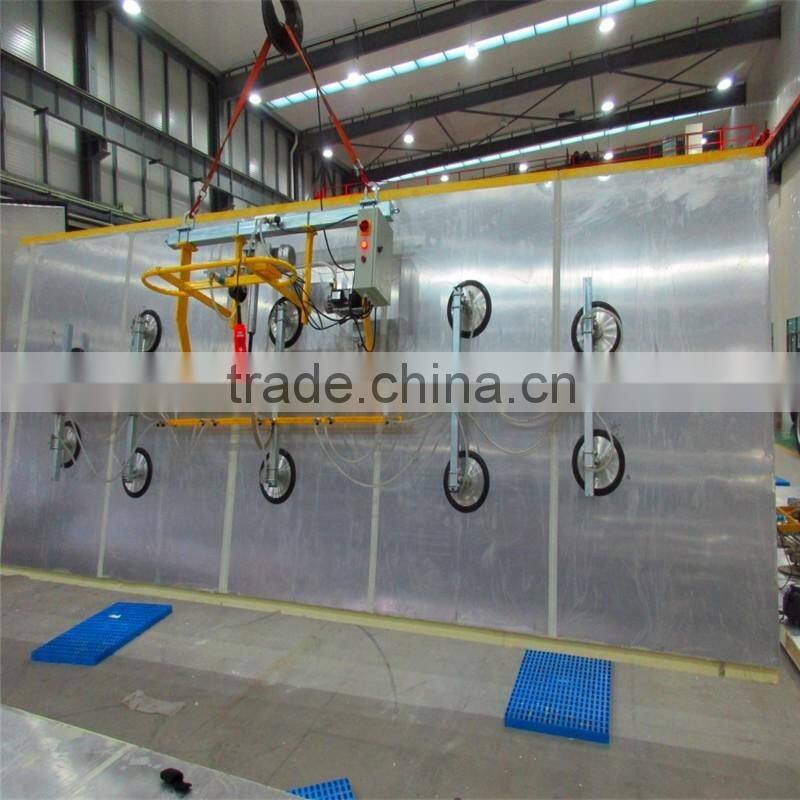

Huge vacuum lifter is the best choice for handling different kind of board, mainly application in steel board, aluminum board, glass board, stone board, plastic board, etc. It can quickly handling board to improve your work efficiency, and protect the board surface from scratches. The efficiency and safety is much higher than the traditional way of handling. And considering all of the customer faced issue that we design this type of vacuum handling equipment, specialized to solve those problems, to improment your work efficient and safety. Our company has passed the ISO9001, products have passed CE certification, so you can trust our quality and service.
Packaging details: wooden pallet for export
fumigation-free
Delivery Detail: 10-15days
Main Features:
1.Suitable for laser cutting machine, flame cutting machine, shearing machine, such as put the material up and down
2.Especially suitable for stainless steel plate
3.Especially suitable for aluminum plate
4.The maximum load of 2000 kg
5.Can be applied to the high temperature of 400 degrees glass
6.Can achieve 90 - degree flip handling
7.A variety of structure and suction cups are available for configuration
| Load(Kg) | Type | PAD Dimension | Pads Quantity | Control Mode | Pump | Voltage | HZ | Phase | Self-weight | Overall dimensions(mm) |
| 100 | FVL-B100-4 | Φ120mm | 4 | Manual/automatic | VT4.4 | 12V/220/380 | 50/60 | 1/3 | 30 | 600*400*300 |
| 250 | FVL-B250-6 | Φ150mm | 6 | Manual/automatic | VT4.4 | 12V/220/380 | 50/60 | 1/3 | 75 | 2000*1000*700 |
| 600 | FVL-B600-6 | Φ230mm | 6 | Manual/automatic | VT4.8 | 12V/220/380 | 50/60 | 1/3 | 70 | 1800*800*700 |
| 800 | FVL-B800-8 | Φ230mm | 8 | Manual/automatic | VT4.8 | 220/380 | 50/60 | 1/3 | 100 | 2500*1200*800 |
| 1000 | FVL-B1000-10 | Φ230mm | 10 | Manual/automatic | VT4.8 | 220/380 | 50/60 | 1/3 | 120 | 2500*1200*800 |
| 1200 | FVL-B1200-12 | Φ230mm | 12 | Manual/automatic | VT4.8 | 220/380 | 50/60 | 1/3 | 150 | 4000*1200*1000 |
| 1500 | FVL-B1500-16 | Φ230mm | 16 | Manual/automatic | VT4.16 | 220/380 | 50/60 | 1/3 | 220 | 3000*1200*1000 |
| 2000 | FVL-B2000-20 | Φ230mm | 20 | Manual/automatic | VT4.25 | 220/380 | 50/60 | 1/3 | 450 | 4500*1200*1200 |
Service Contact : Rocky Hsia
(Fax): +86 21 57644031
(P.C):201612
(Web):
Shanghai Freddie Automation Equipment Co., Ltd locates in Songjiang district which is the industrial center of Shanghai manufactures. We participate in researching, manufacturing, and trading equipment for insdurial automation,vacuum lift, logistic technology, pneumatic and assembly operation. We operate in high growth market and keep maintaining our market positioning by cooperating with well- know vacuum system and industrial transmission control technology learders from America, German, Italy and swedish.
We are dedicated to offering a complete of vacuum Handling Solutions from the component to the system level. As a customer builder of specialized vacuum equipment, we provide high quality products to machinery processing, steel manufacture, chemistry industry, food processing, wood industry, aluminum manfucture, pharmaceutical industry, plastic industry, packaging service, electronic products industry, and logistics service providers.
