Chemical Automatic Electrostatic Powder Coating Mill Machine :
MF N Series Grinding System
General Descripition:
This series of grinding system is classified as ACM grinding machine, which is widely used in powder coating production line. It can also be used in other industries such as pharmacy, pigment, food, chemicals and ceramic.
Features:
1. Openable main grinding case for easy access to inside parts for cleaning and maintenance
2. Openable top cap by means of electromotor for easy access to internal parts of cleaning
3. Perfect particle size distribution
4. All parts to be in contact with powder coating made from stainless steel
5. Equipped with famous brand electrical parts
6. Equipped with tracking suspended sieve
7. Classifier never stick with powder
8. Two kinds of pulse time setting
Main Technical Parameter:
Main specification |
Model |
||||||
MF-10N |
MF-15S |
MF-20/25S |
MF-30S |
MF-35S |
MF-40/50S |
MF-60S |
|
Main motor power(kw) |
7.5 |
11 |
15 |
22 |
22 |
30/37 |
45 2 |
Pin disk speed(rpm) |
7000 |
6500 |
6000/4500 |
4500 |
4000 |
4000 |
2900 |
Classifier motor power(kw) |
1.1 |
2.2 |
3 |
3 |
4 |
4 |
4 |
Classifier speed(kw) |
0~2800 |
0~2800 |
0~2800 |
0~2800 |
0~2800 |
0~2800 |
0~2800 |
Feeding motor power(kw) |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
Grinder cover motor power(kw) |
|
0.18 |
0.18 |
0.18 |
0.25 |
0.25 |
|
Discharge motor power(kw) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
Rotary sieve motor power(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Blower motor power(kw) |
7.5 |
11 |
15/22 |
22 |
30 |
30/37 |
45 |
Blower flow rate(m3/min) |
20 |
30 |
40/70 |
70 |
76 |
80 |
|
Seperating efficiency |
≥98% |
≥98% |
≥98% |
≥98% |
≥98% |
≥98% |
≥98% |
Particle size MESH |
120~350 |
120~350 |
120~350 |
120~350 |
120~350 |
120~350 |
120~350 |
Capacity(kg/h) |
100~150 |
150~200 |
200~300/300~400 |
400~500 |
500~600 |
600~800 |
800~1000 |
Machine Pic

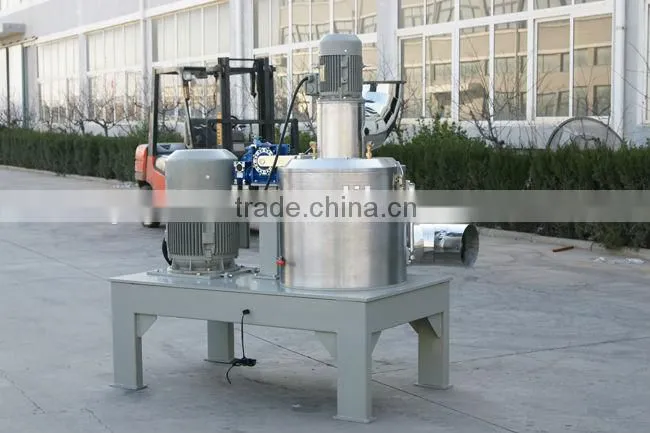

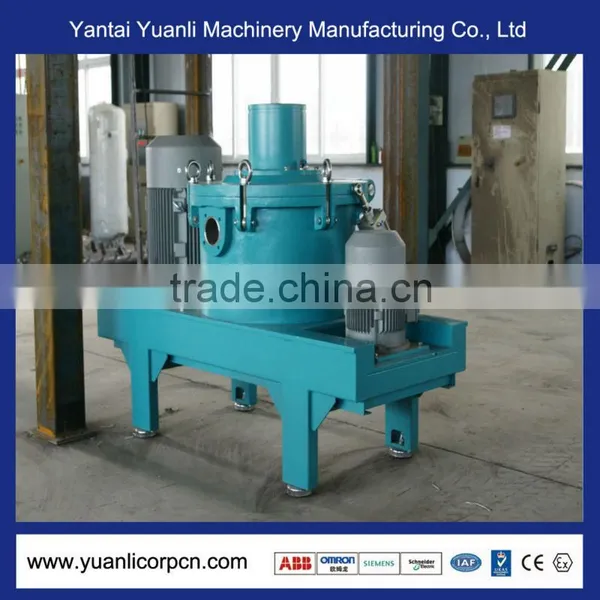

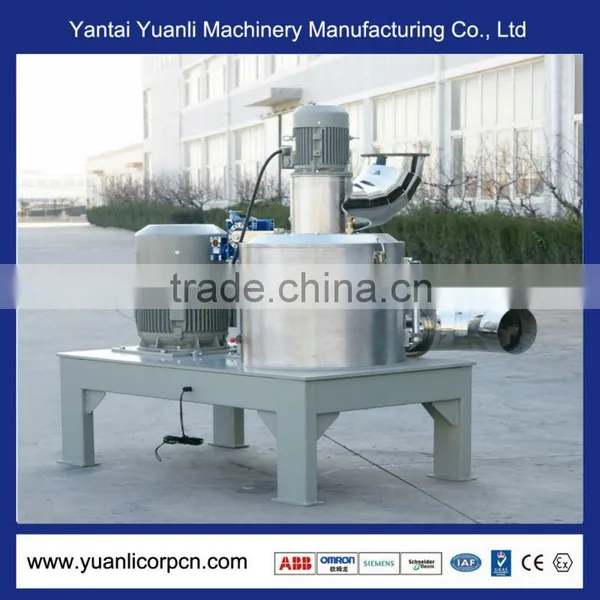

Grinding Mill:

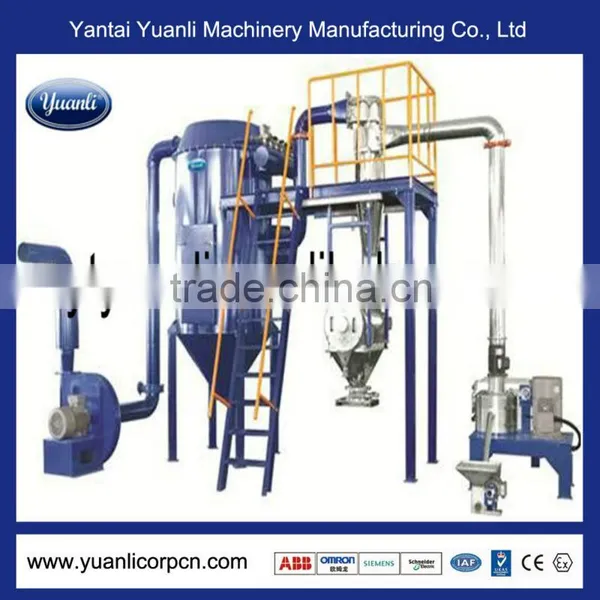

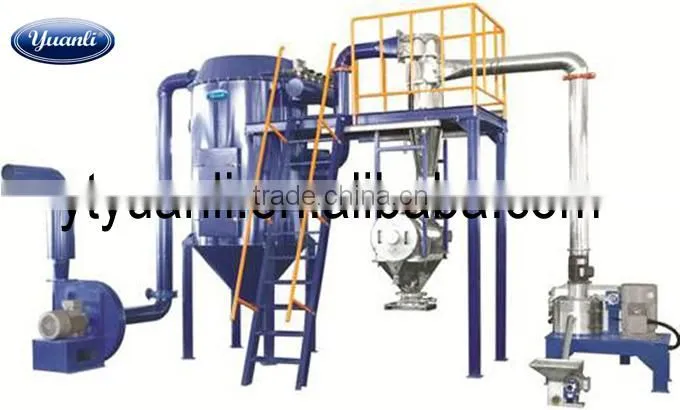

ACM Grinding System
Brief Introduction of our factory:
Founded in 1988
Factory Area 13000m2
Workshop Area 5500 m2
Advance NC and CNC machine shop
High qualified employees
More Than 60 international customer worldwide.Usa,Germany,Uk,
Turkey,Iran,India,Pakistan,Malaysia,Poland,Vietanam,Italy
Qualified supplier of very famous brand powder coating producer in China
ISO 9001:2008,CE standard

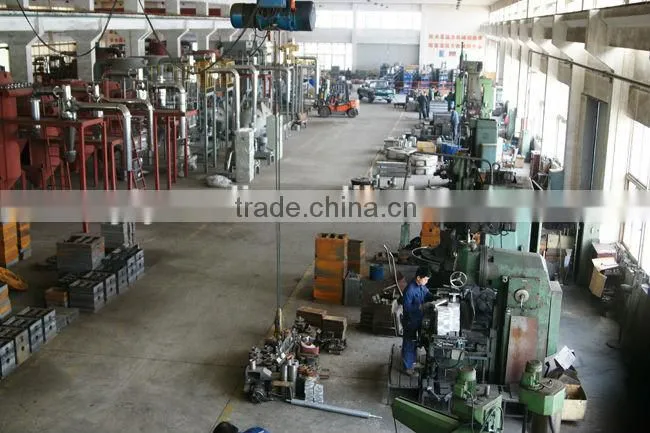

Factory Pic:
Workshop Information( We make each part of the machine in our workshop by ourselves to make sure the quality of the whole production line):
As the first and pioneer of powder coating production machinery supplier in China, Yantai Yuanli Machinery Manufacturing Co., Ltd. with very good reputation in domestic and overseas, supplying high quality machines and services.
