Low Price Screw Extruder for Powder Coating Industry
Extruder with Hydraulic Pressure Opening Barrel
Main characteristic:
1. Hand hydraulic pressure barrel; Easy to change color and cleaning
2. Three zone PID temperature control accuracy ±1°C
3. Cooling water system inside the screw
4. Separately cooling water system in barrel No. 3 zone to avoid block water passage
5. Gear box equipped with lubricating system
6. Gear box equipped with water cooling system
7. Feeding area has permanent magnetic metal remover
8. Extruder noise lower than ≤80dB
Main Technical characteristic:
1.The changing during moving gap is zero
2. High disperse efficiency
3. Self-cleaning system
4. Double temperature PID control, control accuracy ±2°C
5. Barrel equipped with soft water recycle automatic cooling system
6. Low noise and high secure gear box system
7. Equipped with permanent magnetic iron remover
8. Low material consumption, electricity and material rate kg/h.kw is higher
Main Technical Parameter:
Model |
SFJ-46A or B |
SFJ-55A or G |
SFJ-64A or G |
SFJ-80G |
Screw diameter(mm) |
46 |
55 |
64 |
80 |
Length-diameter(L/D) |
14:1 |
16:1 |
15:1 |
15:1 |
Capacity(Kg/H) |
100~180 or 100~280 |
300~400 |
400~500 |
600~800 |
Screw motor power(kw) |
15, 6 or 22, 4 |
30 |
45 |
55 |
Feeding motor power(kw) |
0.37 |
0.37 |
0.55 |
0.55 |
Heating power(kw) |
0.75*4 |
0.75*6 |
1*5+0.75*1 |
2*5+1.5*1 |
Mixing motor power(kw) |
- |
0.37 |
0.37 |
0.37 |
Screw speed(rpm) |
0~500/0~800 |
0~500 |
0~500 |
0~500 |
Temperature control system |
±2°C Double temperature PID auto-control. Accuracy ±2 |
|||
Speed adjust system |
Adjustable speed by means of frequency inverter |
|||
Feeding system |
Variable by means of frequency inverter |
|||
Cooling system |
Water cooled |
|||
Equipped with |
Screw feeding |
|||
Permanent strong-magnetic device | ||||
Overall dimension(mm) |
|
2650*900*1900 |
2900*900*2000 |
3600*950*2260 |

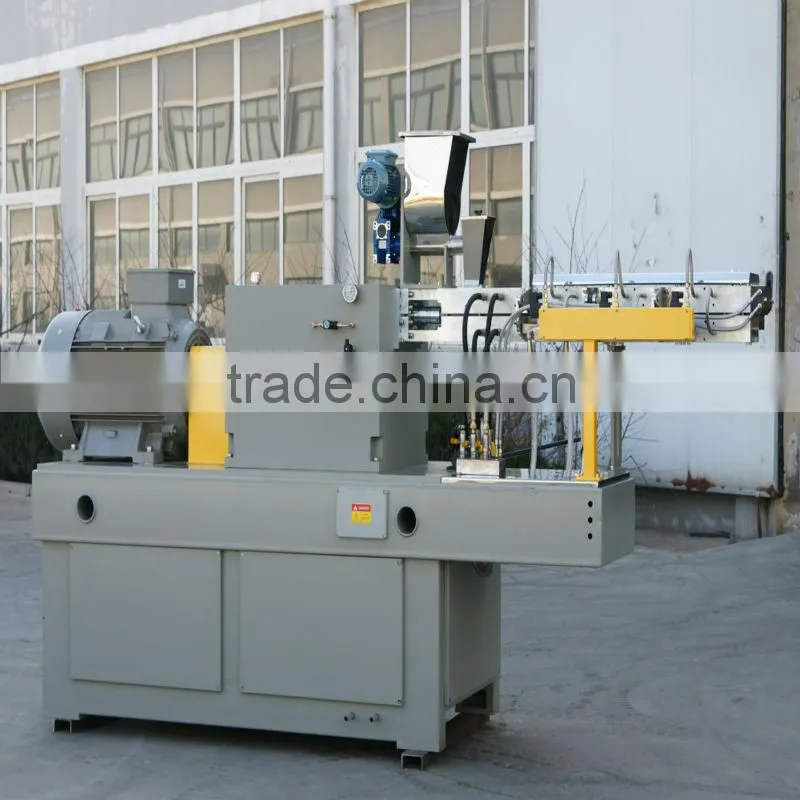

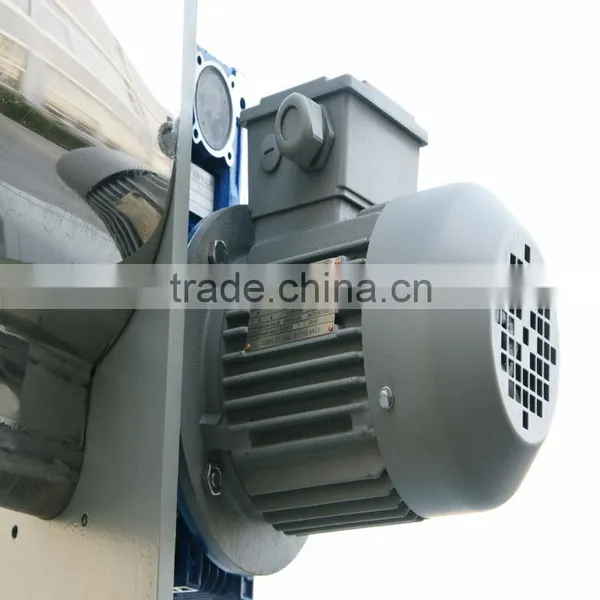

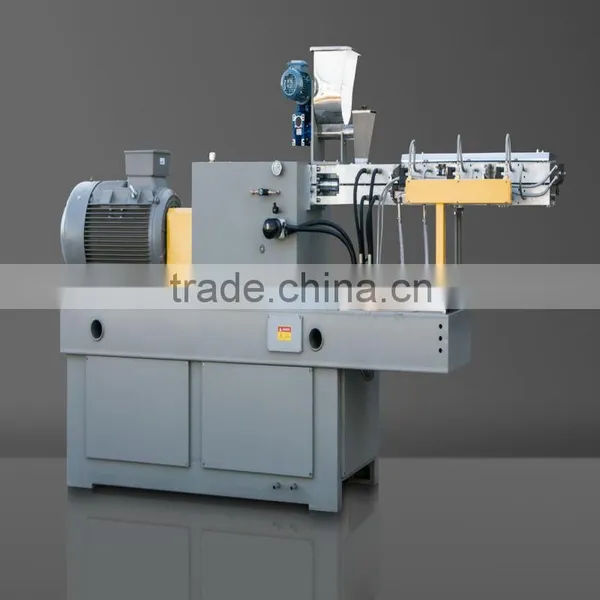

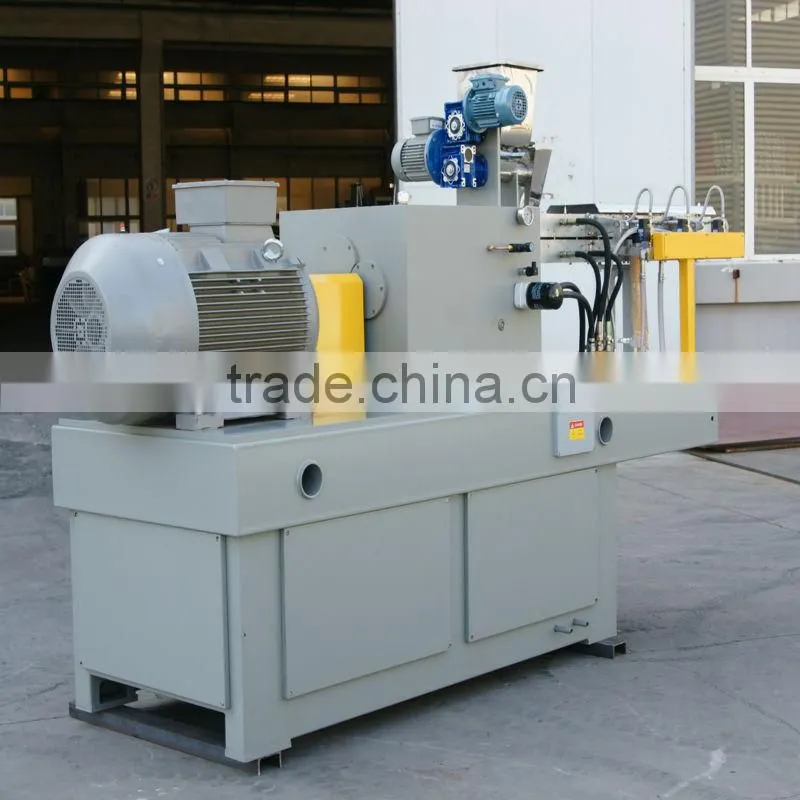

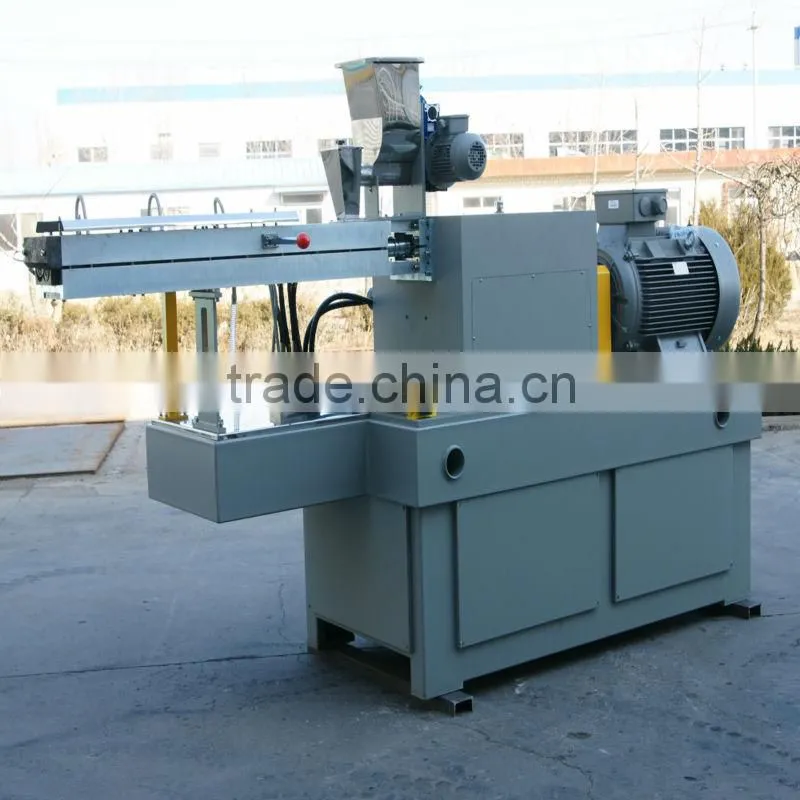

Machine Pic:
Machining
Our Company Information:
Equipments of YUANLI CO.LTD went into the international market since 1989. We exported complete lines to U.K., America, Germany, Indonesia, Vietnam Poland, Philippine, Iran, Egypt, and Saudi Arabia. We achieved perfect image, and trust from foreign customers because of our excellent quality of equipments.
We started to research and manufacture electrostatic powder coating equipments according to our customers' requirement since our company establish in 1988.
Based on the advantage of forefront technology, improving quality, high quality service (installation, formulation, craft design, output production), serialization of capacity (50-1000kg/h), our equipments are sold to 30 provinces, autonomous regions and municipalities directly under the Central government in domestic market and are exported to Unit Kingdom, USA, Germany, India, Vietnam, Poland, Philippines, Iran, Egypt, Saudi Arab, Singapore etc.

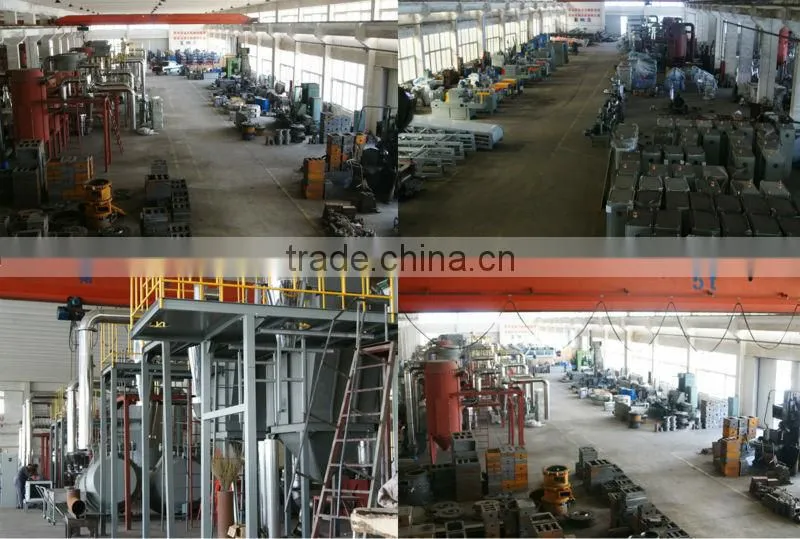

Workshop:
As the first and pioneer of powder coating production machinery supplier in China, Yantai Yuanli Machinery Manufacturing Co., Ltd. with very good reputation in domestic and overseas, supplying high quality machines and services.
Wlecome to visit Yuanli Manufacturing Company,tks!!
