Wind Cooling Steel Band For Powder Coating Equipment :
About Us:
Yantai Yuanli Machinery Manufacturing Co., Ltd. is a highly regarded, privately owned specialty powder coating machinery and raw material companies with headquarter in Yantai, China. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.
JFY N Air-Cooled Cooling Band Series
Application:
Generally is used in powder coating production line to cool the extruded material.
An stainless steel caterpallar along with cold air solidfy melted material and lead them to crusher at the end of the cooling band.
Flakes can be adjusted from 1-3mm in thickness and 5-10mm in width.
Main characteristic:
1. Cooling roll has been designed specially to max. cool efficiency
2. Hard chrome plated cooling roll
3. Cooling roll and crusher equipped with overloaded alarm and protection system
4. Chain anti distortion system
5. Reverse motion possibility for emergency case
Main Technical Parameter:
Model |
JFY-408N |
JFY-508N |
JFY-510N |
JFY-610N |
JFY-612N |
Capacity(kg/h) |
200 |
300~400 |
400~500 |
450~550 |
500~600 |
Caterpillar length(mm) |
4000 |
5000 |
5000 |
6000 |
6000 |
Roller length(mm) |
800 |
800 |
1000 |
1000 |
1200 |
Roller diameter(mm) |
Φ273 |
Φ273 |
Φ273 |
Φ273 |
Φ273 |
Roller diameter(mm) |
Φ168 |
Φ168 |
Φ168 |
Φ168 |
Φ168 |
Drive power(kw) |
0.75 |
0.75 |
1.1 |
1.1 |
1.1 |
Crusher drive |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
Fan power |
65W×4 |
65W×6 |
65W×8 |
65W×8 |
65W×8 |
Cooling system |
Air-cooled |
||||
Variable speed |
Adjustable speed by means of frequency inverter |
||||
Overall dimension(mm) |
4500*1200*1400 |
5500*1200*1400 |
5500*1400*1400 |
6500*1400*1400 |
6500*1600*1400 |

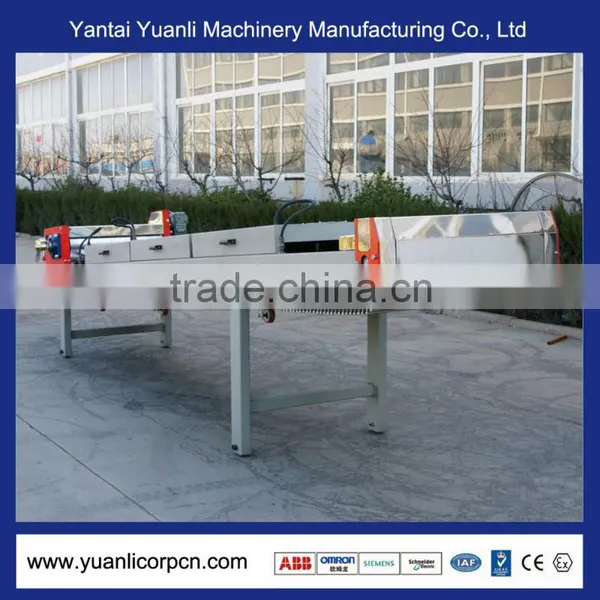

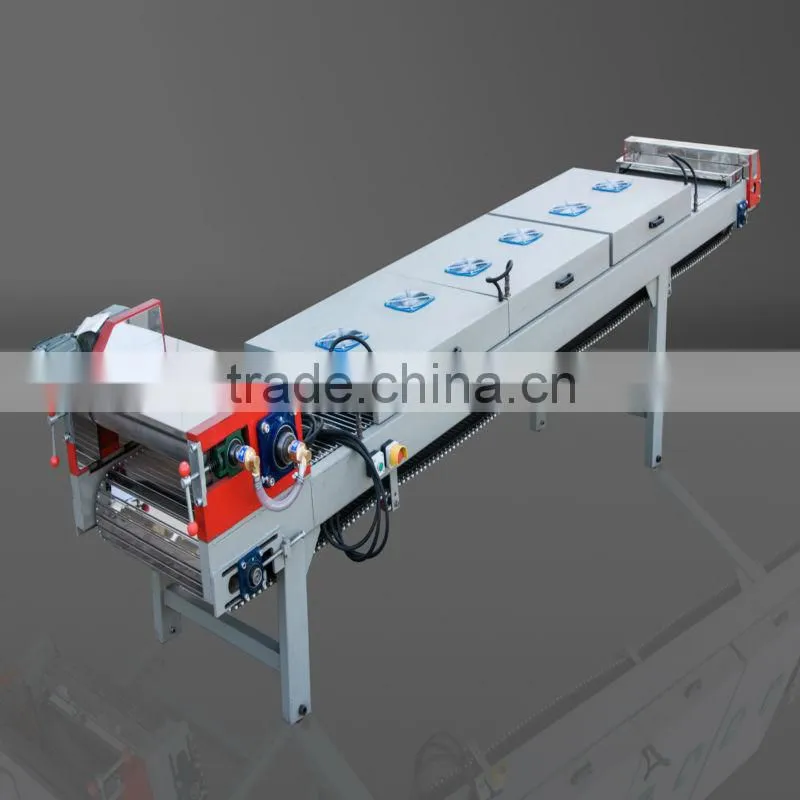

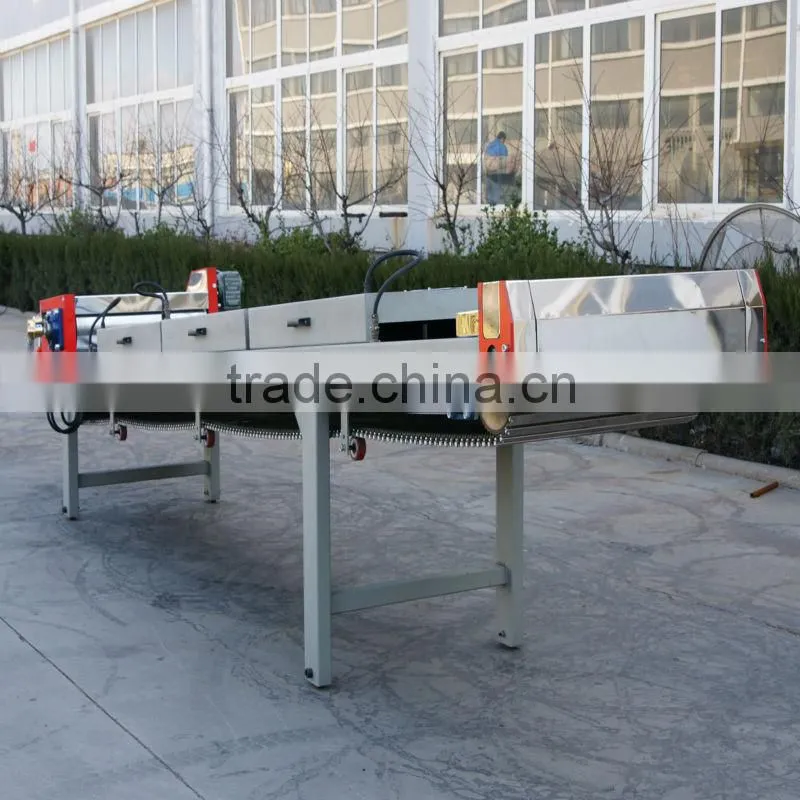

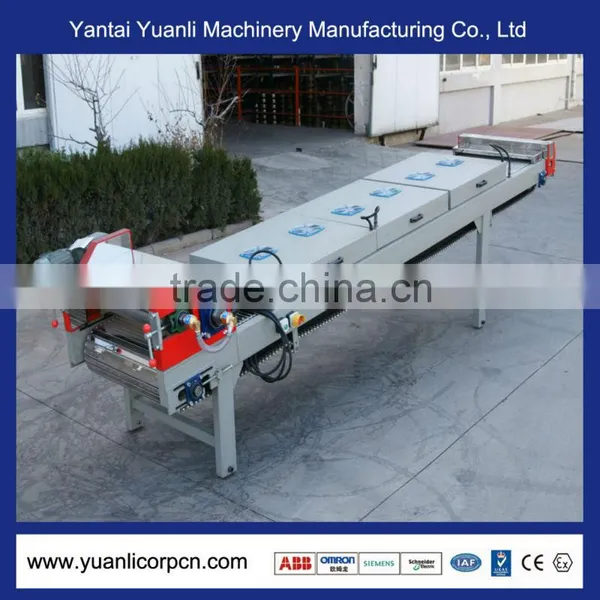

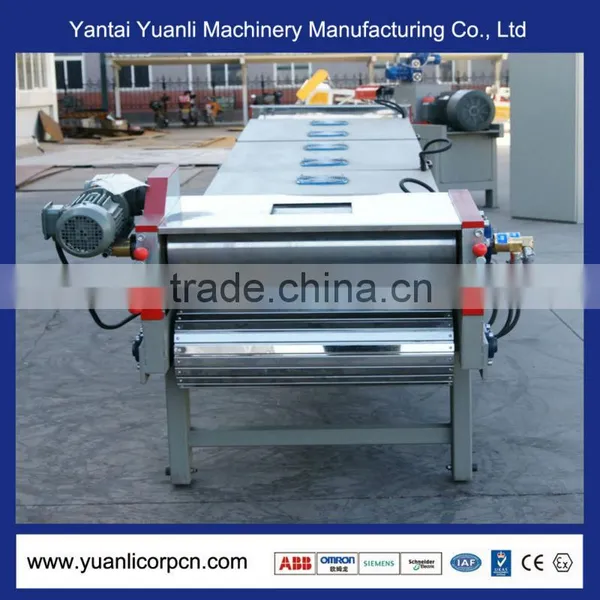

Machine pic:
Workshop PIC:(We make each parts of the machine in our own factory to make sure the quality of the whole production line)
Workshop View:
We cooperate with Italy SBS:
Services:
Yuanli Manufacturing Company Provide below services:
After-sale Service: Turnkey Project
-Technical Support Online Service Provided
According to customer’s requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers’ requirements. Ensure advanced craft, good material and high precision.
Formulation Provided (our advantage)
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
Our Certificate:
CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium
Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.
Yuanli Machinery Company Welcome u visit us!!
