Professional Manufacturer Blender Machine For Electrostatic Powder Coating
- 60 Set / Sets per Month
- Qingdao China
- T/T
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Paint |
Application: | Powder | Additional Capabilities: | Other, Crushing | Place of Origin: | Shandong, China |
Brand Name: | Yuanli | Model Number: | FHJ-300A | Max. Loading Capacity: | 300L Per Hour |
Voltage: | 220V,380V,according to customer requirment | Power(W): | 9.5-11 kw | Dimension(L*W*H): | 1755*1072*2315 |
Certification: | CE,SGS,ISO9000:2001 | Warranty: | 1 year from start up | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Professional Manufacturer Blender Machine For Electrostatic Powder Coating :
Brief Introduction:
We exported the first powder coating production line to United Kingdom in 1989. Since then, our equipments opened the international market. We cooperate with Italy SBS Company from 2000, the quality of our machines are in accord with European standard. We achieved perfect image, and trust from foreign customers because of our excellent quality of equipments and superior customer services.
We are not only provide installation services to customer, but also provide our customer good formulation to help customer produce best quality powder coating.
Yuanli Brand FHJ-300A Auto Pre-Mixer Series:
Yuanli is the professional Auto Pre-Mixer producer,below is the technical data:
Main characteristic:
1. Mobile hoppers to provide continuous loop production
2.High automatic: positioning, lock, overturning mixing and tank replacement
3. PLC control
4. Sufficient mixing, no solid powder
5. High efficiency
6. Easy to clean(for changing color)
7. Safe operation
8. Manual and auto two working way
Application:
This machine will improve production efficiency and decrease work intensity in mixing process.
Main Technical Parameter:
Model | Volume (L) | Capacity (kg/tank) | Mixing motor (kw) | Rotary motor (kw) | Crushing motor (kw) | (kw)*2 | Mixing time (min) | Mixing speed (rpm) | Overall dimension (mm) |
FHJ-300A | 300 | 100~200 | 9~11 | 0.55 | - | 0.25 | 5~10 | 88~130 | 1755*1072*2315 |
Machine Show:
Services
Yuanli Manufacturing Company Provide below services:
After-sale Service: Turnkey Project
-Technical Support Online Service Provided
According to customer’s requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers’ requirements. Ensure advanced craft, good material and high precision.
Formulation Provided (our advantage):
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
Company Show:

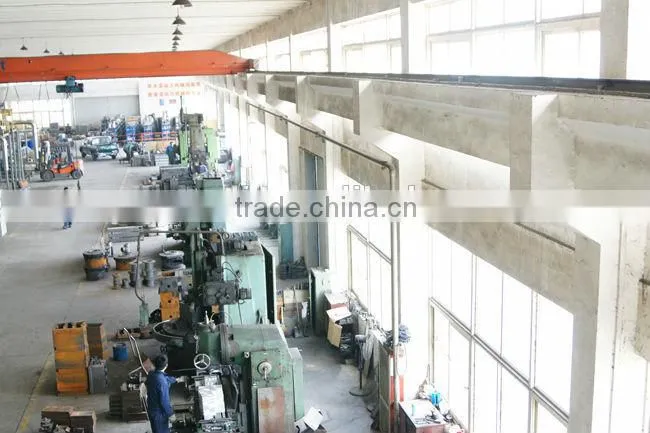

Workshop View:
Our Certificate:
CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium
Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.
