High Efficiency Powder Coating System Used Extruder for Sale
A. Extruder with Hydraulic Pressure Opening Barrel
Main characteristic:
1. Hand hydraulic pressure barrel; Easy to change color and cleaning
2. Three zone PID temperature control accuracy ±1°C
3. Cooling water system inside the screw
4. Separately cooling water system in barrel No. 3 zone to avoid block water passage
5. Gear box equipped with lubricating system
6. Gear box equipped with water cooling system
7. Feeding area has permanent magnetic metal remover
8. Extruder noise lower than ≤80dB
B. Main Technical characteristic:
1.The changing during moving gap is zero
2. High disperse efficiency
3. Self-cleaning system
4. Double temperature PID control, control accuracy ±2°C
5. Barrel equipped with soft water recycle automatic cooling system
6. Low noise and high secure gear box system
7. Equipped with permanent magnetic iron remover
8. Low material consumption, electricity and material rate kg/h.kw is higher
C. Main Technical Parameter:
Model |
SFJ-46A or B |
SFJ-55A or G |
SFJ-64A or G |
SFJ-80G |
Screw diameter(mm) |
46 |
55 |
64 |
80 |
Length-diameter(L/D) |
14:1 |
16:1 |
15:1 |
15:1 |
Capacity(Kg/H) |
100~180 or 100~280 |
300~400 |
400~500 |
600~800 |
Screw motor power(kw) |
15, 6 or 22, 4 |
30 |
45 |
55 |
Feeding motor power(kw) |
0.37 |
0.37 |
0.55 |
0.55 |
Heating power(kw) |
0.75*4 |
0.75*6 |
1*5+0.75*1 |
2*5+1.5*1 |
Mixing motor power(kw) |
- |
0.37 |
0.37 |
0.37 |
Screw speed(rpm) |
0~500/0~800 |
0~500 |
0~500 |
0~500 |
Temperature control system |
±2°C Double temperature PID auto-control. Accuracy ±2 |
|||
Speed adjust system |
Adjustable speed by means of frequency inverter |
|||
Feeding system |
Variable by means of frequency inverter |
|||
Cooling system |
Water cooled |
|||
Equipped with |
Screw feeding |
|||
Permanent strong-magnetic device | ||||
Overall dimension(mm) |
|
2650*900*1900 |
2900*900*2000 |
3600*950*2260 |

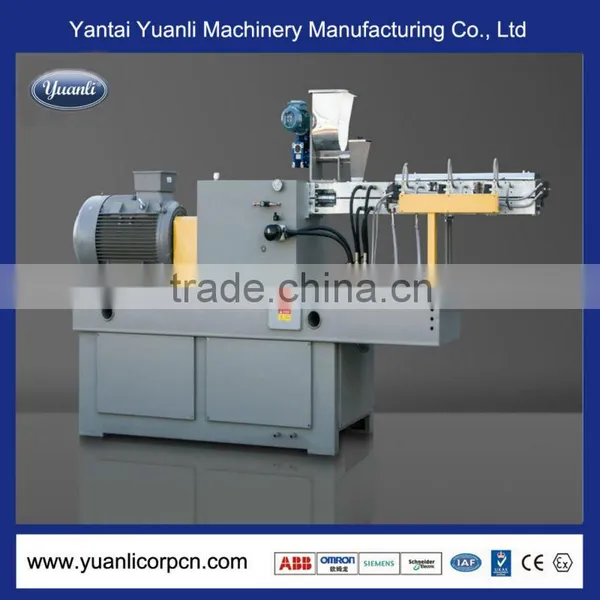

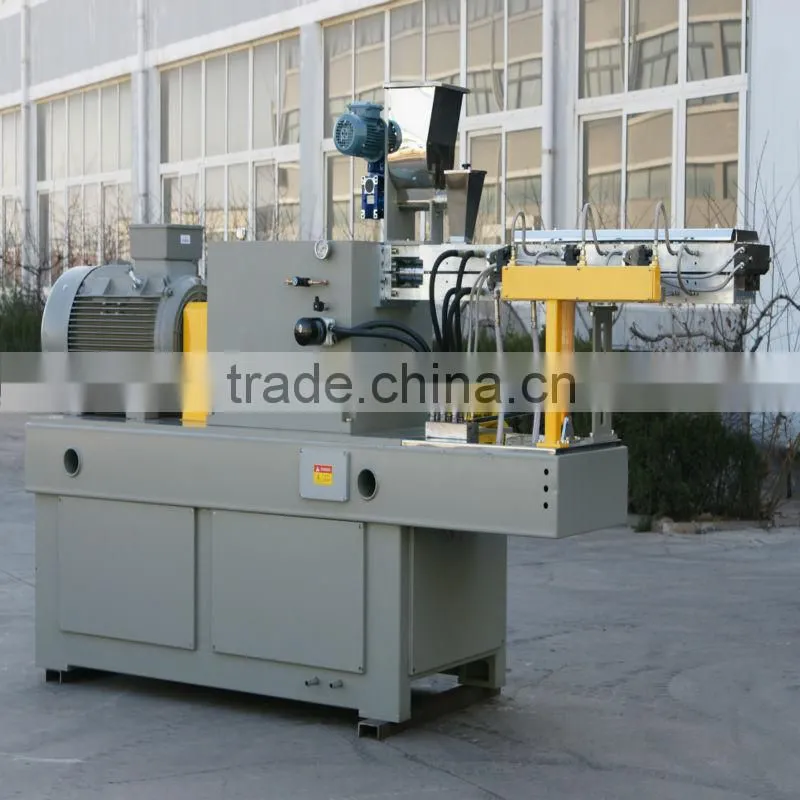

D. Machine Pic

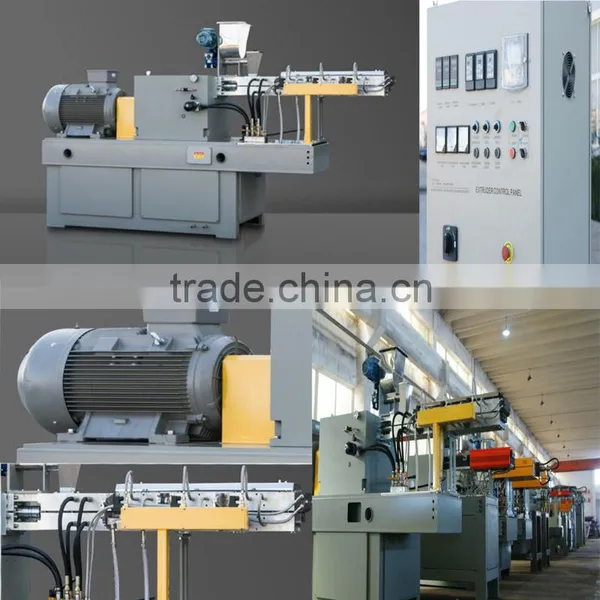

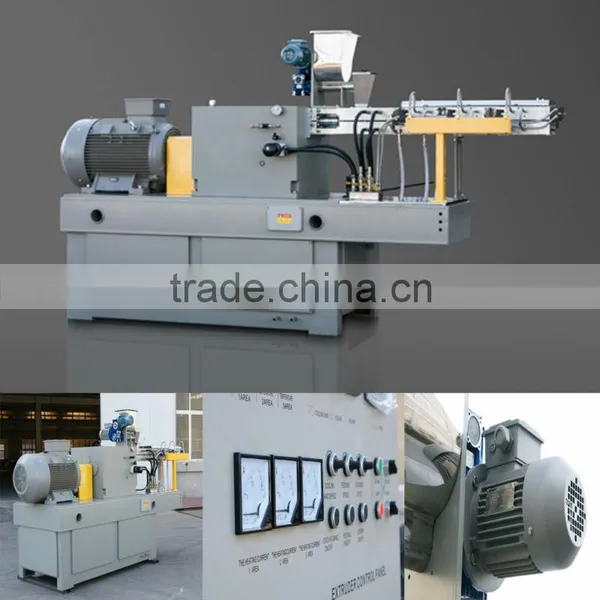

extruder with electric cabinet
machineparts:

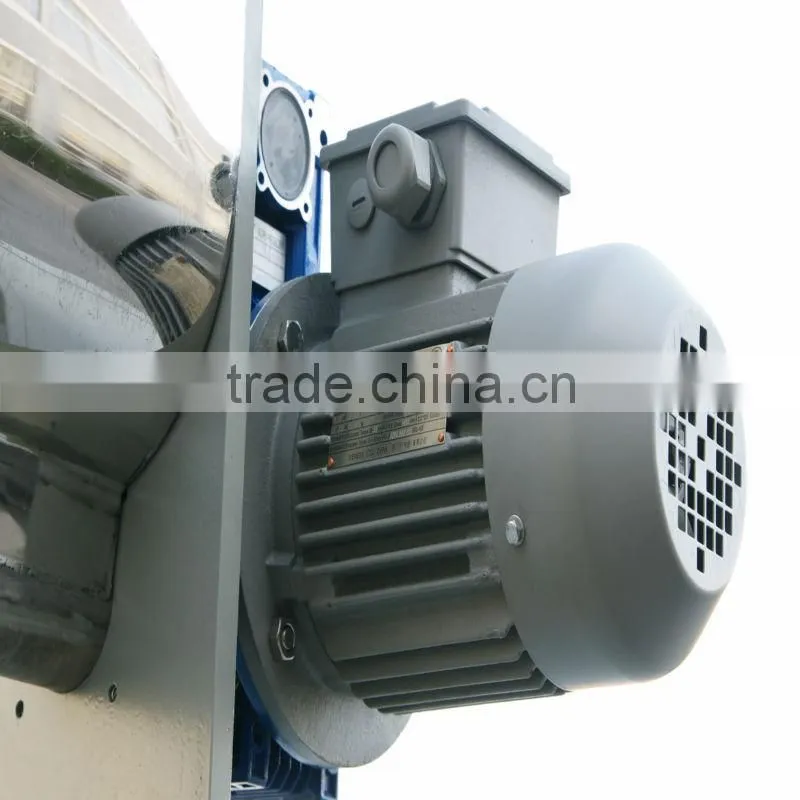

Siemens motor

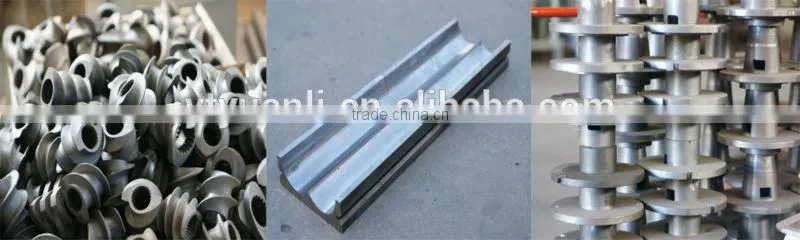

Machining
We make machining part in our own facotry to control the quality of the machine parts to make sure the machine's quality
E. Company Introduction
Yantai Yuanli Machinery Manufacturing Co., Ltd. is a highly regarded, privately owned specialty powder coating machinery and raw material companies with headquarter in Yantai, China. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.
F. Our Services
Yuanli Manufacturing Company Provide below services:
After-sale Service: Turnkey Project
-Technical support online service provided
According to customer’s requirement, we provide layout(plant designer), excellent mechenical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory,We provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare parts replacement and repair service provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers requirements. Ensure advanced craft, good material and high precision.
Formulation provided(our advantage):
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time, and have very good experience for the formulation to support customer to make different effect powder coatings.
G.Our certificate
CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium
Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.
Wlecome to visit Yuanli Manufacturing Company,tks!!
