Polyester Resin Manufacture

Polyester Resin Manufacture thumbnail-1
Polyester Resin Manufacture thumbnail-2
Polyester Resin Manufacture thumbnail-3
Polyester Resin Manufacture thumbnail-4
Polyester Resin Manufacture photo-1
Polyester Resin Manufacture photo-2
Polyester Resin Manufacture photo-3
Polyester Resin Manufacture photo-4
Negotiable MOQ: 5 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Other Names:
Saturated Polyester Resin
Place of Origin:
Shandong, China
Main Raw Material:
Other, Polyester Resin
Contact Supplier Request Quote Chat Now
Yantai Yuanli Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China or any chinese port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Other Names Saturated Polyester Resin
Place of Origin Shandong, China
Main Raw Material Other, Polyester Resin
Usage Appliance Paint, Boat Paint, Building Coating, Car Paint, Electrical Insulating Varnish, Furniture Paint, Plastic Coating
Application Method Spray
State Powder Coating
Brand Name NEWPOL
Model Number NEWPOL-0264/1

Polyester Resin Manufacture:





1.Product Description:



Polyester Resin(NEWPOL-0264/1),is a kind of saturated carboxyl polyester resin mixed with epoxy resin for hybrid system powder coating(60:40).This resin provided with very high gloss,excellent flow,good mechanical property,perfect anti-yellowing.





2.Product Properties



Very high gloss



Excellent flow



Perfect anti-yellowing



Good mechanical properties



Good storage stability



3. Product TDS:



Product Description



Yuanli NEWPOL-0264/1 is a kind of saturated carboxyl polyester resin, hybrid polyester resin,mixed with epoxy resin in 60/40 for polyester/epoxy powder coatings.

Product Properties



Very high gloss;

Excellent flow;

Good mechanical properties;

Perfect anti-yellowing;

Good storage stability.

Specifications



Appearance: Chip solid

Color(50% DMF): Max. 3

Acid Value (mgKOH/g): 50-56

ICI Viscosity (200℃) Po.: 25-35

Softening Point(ball)℃: 95-110

Tg(℃): Appr. 56

Package and shelf life



25kgs net in bag

One year in dry and well-ventilated condition below 30℃

(If exceed shelf life,please check again, it can be used if inspection result is ok)

Starting Formulation



Yuanli NEWPOL0264/1: 360g

Epoxy Resin(E-12):240g

Tio2(R902):350g

Flow agent(PV5):10g

Benzoin:5g

Extrusion Condition

Extruder: Yuanli extruder(option)



Casing setting temperature: 110-120

Kneading screw temperature: 60

R.P.M: 60

Particle size: Max 100

Curing condition: 180℃ x 15min.(MT)

Filim Properties

Thickness:60+_10

Gloss (60)%: Min 90.

Adhesion(2mm):0-1

Bending(mm):Max 4

Impact(kgcm):50

Hardness(pencil)H:1H

Application Condition

Degreased and stainless cold-rolled steel(mm):0.5

Spraying tension KV:50

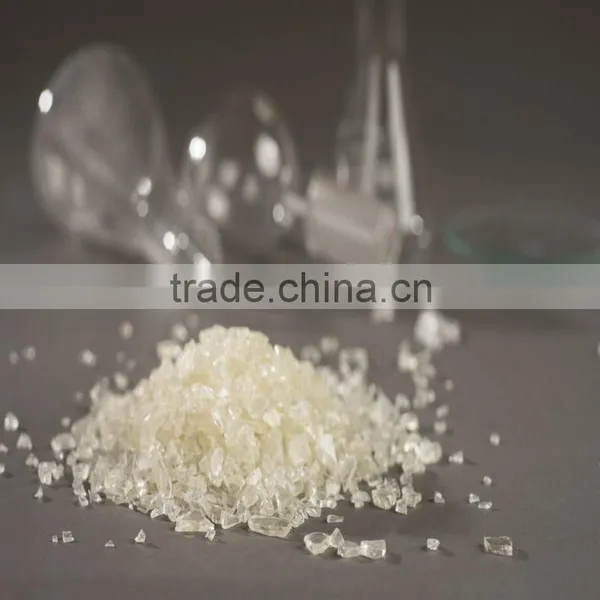

4. Product Pic:



 Polyester Resin Manufacture



Polyester Resin Manufacture



Polyester Resin Manufacture



Polyester Resin Manufacture

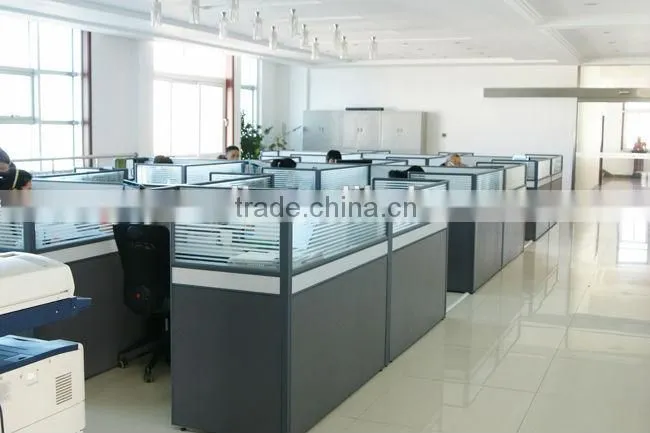

5. Our Factory Pic:



Polyester Resin Manufacture



Polyester Resin Manufacture



Polyester Resin Manufacture



 Polyester Resin Manufacture



6.Customer Use Our Raw Material Make Final Powder Coating:



Polyester Resin Manufacture



Polyester Resin Manufacture
