Product Description

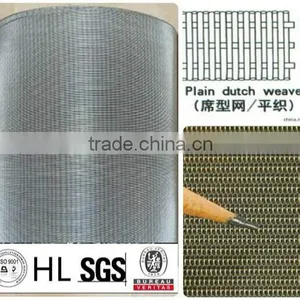

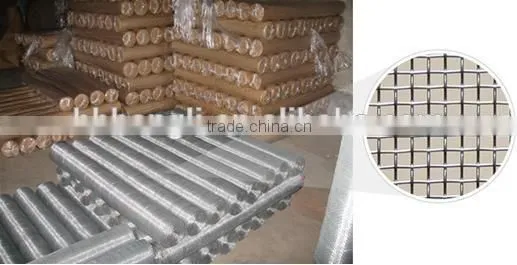

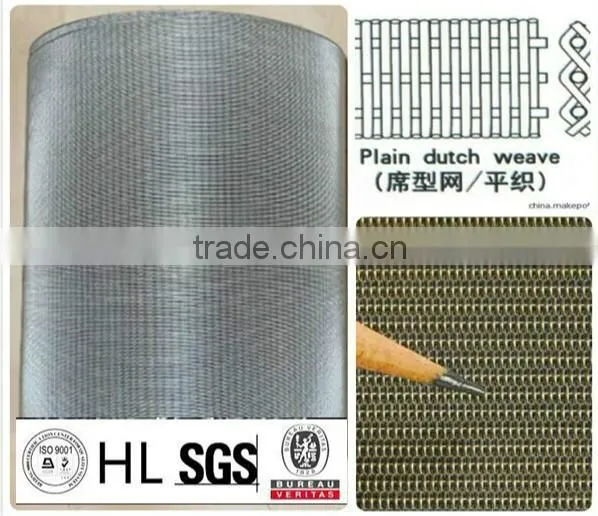

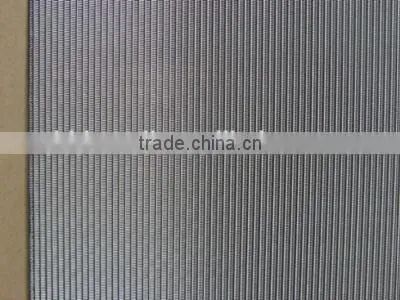

Stainless steel dutch wire mesh is also known as stainless steel dutch woven wire cloth and
stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire.Stainless
steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine,
petroleum, telecom-communication, scientific research units ,due to its stable and fine filtration
capability.
Materials:
The main materials of stainless steel dutch woven wire cloth are 302,304,304L,316,316L stainless steel wire,copper wire, nickel wire,low carbon steel wire and polyester wire.
Applications:
Due to its stable and fine filtration capability, stainless steel dutch wire mesh is extensively
utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication
and scientific research units, for example, filtering and screening in airspace, oil and chemicals,
such as filter candles, vacuum filters and spring filters.
Meantime it's also widely used in aerospace, petroleum, chemical industry, chemical fiber,
machinery, plastic products, scientic research, conveying and other industries.
Specification:
No. |
Wire Diameter |
Reference Aperture |
Effective Section Rate |
Mesh Weight |
Equivalent Mesh in English Standard |
No. |
MPW28 |
0.71x0.63 |
315 |
14.2 |
5.42 |
7.24mesh x 44mesh |
MPW28 |
32 |
0.63x0.45 |
300 |
20.4 |
4.04 |
8.49mesh x 62mesh |
32 |
40 |
0.50x0.335 |
250 |
21.5 |
3.16 |
10.2mesh x 79mesh |
40 |
45 |
0.45x0.315 |
224 |
21.2 |
2.84 |
11.8mesh x 89mesh |
45 |
(48) |
0.45x0.315 |
212 |
20.6 |
2.86 |
12.2mesh x 89mesh |
(48) |
55 |
0.40x0.28 |
180 |
20.1 |
2.56 |
14.1mesh x 100mesh |
55 |
60 |
0.40x0.28 |
160 |
17.6 |
2.64 |
16.1mesh x 100mesh |
60 |
68 |
0.335x0.224 |
160 |
23.0 |
2.14 |
17.2mesh x 125mesh |
68 |
70 |
0.335x0.25 |
140 |
16.7 |
2.37 |
18.7mesh x 112mesh |
70 |
76 |
0.315x0.20 |
140 |
22.3 |
1.90 |
19.3mesh x 140mesh |
76 |
90 |
0.315x0.224 |
112 |
15.7 |
2.13 |
21.8mesh x 125mesh |
90 |
100 |
0.28x0.20 |
100 |
14.6 |
1.92 |
25.6mesh x 140mesh |
100 |
120 |
0.25x0.18 |
80 |
13.6 |
2.64 |
30.0mesh x 155mesh |
120 |
140 |
0.224x0.16 |
71 |
12.7 |
1.58 |
35.1mesh x 175mesh |
140 |
160 |
0.20x0.14 |
60 |
12.5 |
1.40 |
40.6mesh x 200mesh |
160 |
180 |
0.16x0.112 |
56 |
15.0 |
1.09 |
45.4mesh x 249mesh |
180 |
200 |
0.14x0.10 |
50 |
14.6 |
0.96 |
51.3mesh x 279mesh |
200 |
240 |
0.14x0.10 |
45 |
12.8 |
0.99 |
57.7mesh x 279mesh |
240 |
260 |
0.125x0.09 |
36 |
10.8 |
0.90 |
67.6mesh x 310mesh |
260 |
280I |
0.112x0.08 |
36 |
12.7 |
0.79 |
70.2mesh x 349mesh |
280I |
280II |
0.112x0.071 |
40 |
16.2 |
0.72 |
70.2mesh x 393mesh |
280II |
Note: We can produce a variety of sizes of products according to different customer needs.
Company Information
Hebei HangLi Metal products CO., LTD was establish in 1995, locked in the hometown of wire mesh, and is one of the leading manufacturers of Metal Wire Mesh products in Hebei province of China.
Our company has engaged in production and marking in oil vibrating screen, Vapor-liquid filter, sintered mesh, sintering carpet, wedge wire screen, stainless steel wire mesh and the other related products. We have our own import and export rights, and we have already passed the ISO 9001:2000 certificate and CE certificate.
Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, spaceflight, highway, railway, landscape protection, aquaculture, metallurgical machinery, etc.
