Product name: stainless steel seat type network
Material: stainless steel wire for SUS302, 304304 L, 316316 L (added the material such as pure nickel wire, low carbon steel wire)
Performance: acid resistance, alkali resistance, high temperature resistance, tensile and high resistance to wear, with filtering performance is stable, fine, high precision, rich special filtering performance..
Weaving: plain weave stainless steel dense mesh (plain - lp), twill woven stainless steel dense network (twill - lp), bamboo weaving dense net, stainless steel braided stainless steel dense contrast network (also known as contrast table type network conveyor belt).

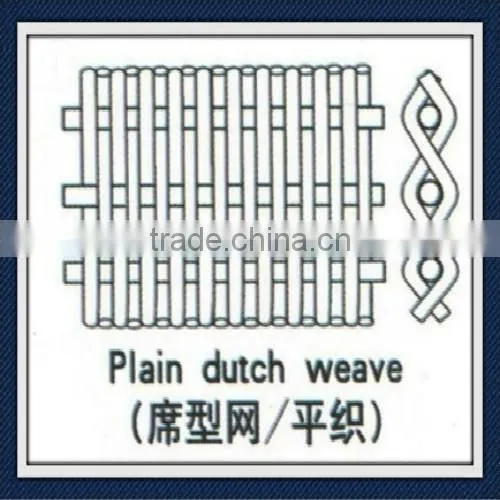

Plain Dutch weave: similar to plain weave mesh is each wire is on a weft wire through the up and down, each weft wires in a wire through the cloth.The filar silk from the different is the woven mesh than the weft threads through the thick.Weft wire tightly together forming a cone or a wedge into the hole.
Of twilled Dutch weave: the metal wire cloth weaving technology combined with the above description of the Dutch prepare technical and twill weave.Weaving method is each wire cross in every 2 weft wire through the up and down, each weft wire cross in every 2 wire through the way of weave.The coarser the warp between a finer weft wire wear fork.Each silk warp yarn in weft weave between up and down.Weft wire tightly together form a cone or a wedge into the form of a hole.
Specifications of Stainless Steel Dutch Wire Mesh:
No. |
Wire Diameter |
Reference Aperture |
Effective Section Rate |
Mesh Weight |
Equivalent Mesh in English Standard |
No. |
MPW28 |
0.71x0.63 |
315 |
14.2 |
5.42 |
7.24mesh x 44mesh |
MPW28 |
32 |
0.63x0.45 |
300 |
20.4 |
4.04 |
8.49mesh x 62mesh |
32 |
40 |
0.50x0.335 |
250 |
21.5 |
3.16 |
10.2mesh x 79mesh |
40 |
45 |
0.45x0.315 |
224 |
21.2 |
2.84 |
11.8mesh x 89mesh |
45 |
(48) |
0.45x0.315 |
212 |
20.6 |
2.86 |
12.2mesh x 89mesh |
(48) |
55 |
0.40x0.28 |
180 |
20.1 |
2.56 |
14.1mesh x 100mesh |
55 |
60 |
0.40x0.28 |
160 |
17.6 |
2.64 |
16.1mesh x 100mesh |
60 |
68 |
0.335x0.224 |
160 |
23.0 |
2.14 |
17.2mesh x 125mesh |
68 |
70 |
0.335x0.25 |
140 |
16.7 |
2.37 |
18.7mesh x 112mesh |
70 |
76 |
0.315x0.20 |
140 |
22.3 |
1.90 |
19.3mesh x 140mesh |
76 |
90 |
0.315x0.224 |
112 |
15.7 |
2.13 |
21.8mesh x 125mesh |
90 |
100 |
0.28x0.20 |
100 |
14.6 |
1.92 |
25.6mesh x 140mesh |
100 |
120 |
0.25x0.18 |
80 |
13.6 |
2.64 |
30.0mesh x 155mesh |
120 |
140 |
0.224x0.16 |
71 |
12.7 |
1.58 |
35.1mesh x 175mesh |
140 |
160 |
0.20x0.14 |
60 |
12.5 |
1.40 |
40.6mesh x 200mesh |
160 |
180 |
0.16x0.112 |
56 |
15.0 |
1.09 |
45.4mesh x 249mesh |
180 |
200 |
0.14x0.10 |
50 |
14.6 |
0.96 |
51.3mesh x 279mesh |
200 |
Note: We can produce a variety of sizes of products according to different customer needs.
The specifications of the stainless steel mat type network and packaging
Width: 1 m to 2 m (can) according to the customer request a roll of 30 meters or 30.5 meters, the special width can be customized according to customer requirements processing.

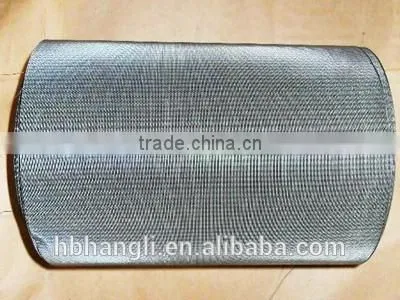

Shape: rolls.And can develop into pieces, such as wafer shape, can also be processed into other filter equipment.
Packing: in waterproof paper, packaging for woven bag or wooden cases, etc.
We are agree flexible payment terms & Flexible transaction mode IF you need any help or question ,We are very welcome contact us, we will within 24 hours to reply you . as following is Contact info.:
1. We are 10 Years for manufacture metal mesh product.
2. We factory are would like offer price is preferential and low ,To help you company save costing.
3. All risk of cargos by our account online ,Still to you company have received product as smoothly.
4. Upon receipt of your purchase price (including shipping ),We will immediately produce for you . But please specify date of delivery 10-15 days.
5. Payment ,T/T (30% deposit ,Balance when cargos will arrived your desination port) . or L/C
Hebei HangLi Metal Products CO.,LTD Was established in 1995,located in the hometown of wire mesh, is one of the leading manufacturers of Metal Wire Mesh products in Hebei Province of China.
Our company has engaged in production and marketing in oil vibrating screen , Vapor-liquid filter, Sintered mesh, sintering carpet ,Wedge Wire Screen, Stainless Steel Wire Mesh and the other related products. marketing.We have our own export and import rights , and we have already passed the ISO9001:2000 certificate and CE certificate.
Q: Why choose Hangli?
A: Professionally provide package solution for customers from over 20 countries.
Q: What can we expect from Hangli?
A: Superior quality, reasonable price, exclusive service, and good after sale guarantee.
Q: Can you do customized design and size?
A: Yes, ODM &OEM are available.
Q: Can I have some samples?
A: Of course, samples are free (1-3 pcs) or 2-3 kg
Q: When can we get samples and goods?
A: Samples will be sent immediately if have stock, make new will take 2-3days.
Goods will be shipped within 30days after order confirmed.
Q: What's kind of payment can you offer?
A: We can offer L/C,D/A, D/P, T/T, Western Union, Paypal etc.
