Product Details
Place of Origin | Hebei, China | Material | Other, stainless steel 316L | |
Type | Other, filter flet | Application | Filters | |
Weave Style | Plain Weave | Technique | Woven | |
Model Number | HL-100 | Brand Name | HangLi |
Product Description

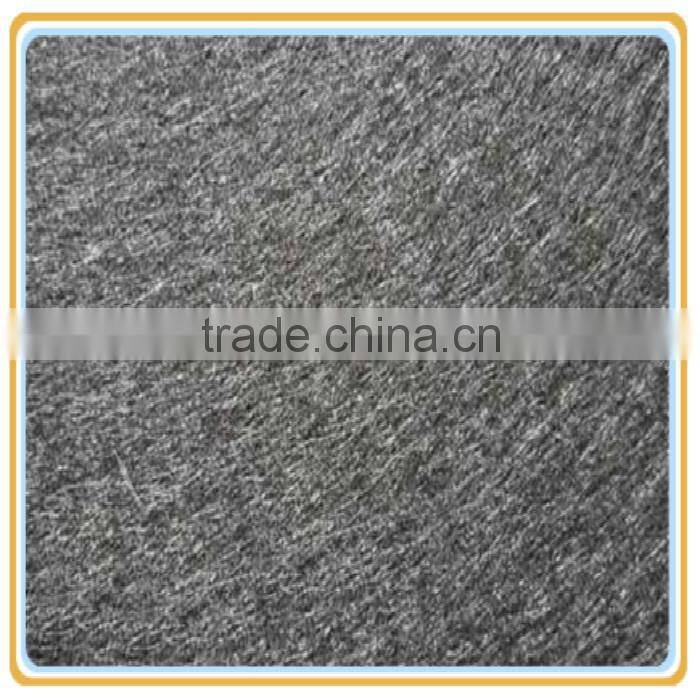

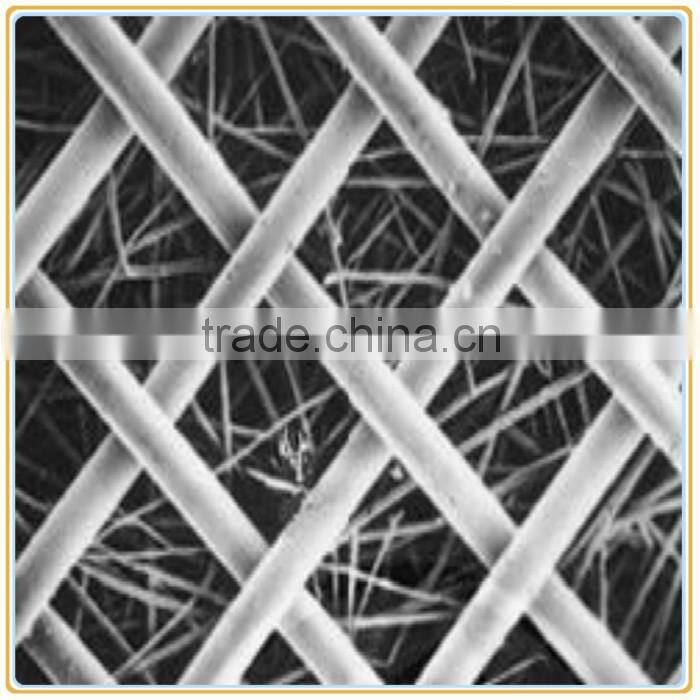

Sintered stainless steel fiber felt is sintered by extremely fine metal fibers (diameter accurate to micron), and then non-woven spreading, stacking and high temperature sintering.stainless steel sintered felt is formed by a different aperture hole gradient which can be controlled to obtain a high filtering accuracy and greater dirt holding capacity.
Features:
¤Large dust holding capacity, high filtration precision, pressure raises slowly,a long cycle perio¤High porosity and excellent permeability, small pressure loss, high flow¤Corrosion resistance, high temperature resistance, resistance to corrosion of acid,alkali, organic solvents and drug, at 480 °C environment for long-term use.
¤Easy processing, forming, and welding¤Be produced according to user requirements are particularly enhanced, thickened type,intensive network type and various other specifications.
Applications:
Sintered stainless steel fiber felt has an excellent filter performance, it is an ideal material of heat resistance and corrosion resistance with high precision. It’s widely used in filtration of high molecular polymer, petrochemicals, dust cleaning of high-temperature gas, pre-filtration of ultrafilter, and filtration of petroleum refining, vacuum pump, catalyst support, air bag restraint,hydraulic system, etc.
Technical data:
Specification | Filter rating | Bubble-point pressure | Air permeability | Porosity | Particle-holding capacity | Thickness | Breaking strength | ||||||
Basic value | Tolerance | Basic value | Tolerance | Basic value | Tolerance | Basic value | Tolerance | Basic value | Tolerance | Basic value | Tolerance | ||
ZBZ5 | 5 | 6800 | +10% | 47 | +10% | 75 | +10% | 5.0 | +10% | 0.30 | +10% | 32 | +10% |
ZBZ7 | 7 | 5200 | 63 | 76 | 6.5 | 0.30 | 36 | ||||||
ZBZ10 | 10 | 3700 | 105 | 75 | 7.8 | 0.37 | 32 | ||||||
ZBZ15 | 15 | 2450 | 205 | 79 | 8.6 | 0.40 | 23 | ||||||
ZBZ20 | 20 | 1900 | 280 | 80 | 15.5 | 0.48 | 23 | ||||||
ZBZ25 | 25 | 1550 | 355 | 80 | 19.0 | 0.62 | 20 | ||||||
ZBZ30 | 30 | 1200 | 520 | 80 | 26.0 | 0.63 | 23 | ||||||
ZBZ40 | 40 | 950 | 670 | 78 | 29.0 | 0.68 | 26 | ||||||
ZBZ60 | 60 | 630 | 1300 | 85 | 36.0 | 0.62 | 28 |
Filter rating and particle-holding capacity test in compliance with GB/T18853-2002 Remark:
Bubble-point pressure test in compliance with GB/T5249
Air permeability test in compliance with GB/T5453 at pressure 200pa, medium is air.
Breaking strength test in compliance with GB/T228
Warm Tips Our products are non standard, so we can produce various products strictly in accordance with your requirements.
♦ Standard export packaging in carrton or wooden box
♦ Special requirement can be made
Hebei HangLi Metal products CO., LTD was establish in 1995, locked in the hometown of wire mesh, and is one of the leading manufacturers of Metal Wire Mesh products in Hebei province of China.
Our company has engaged in production and marking in oil vibrating screen, Vapor-liquid filter, sintered mesh, sintering carpet, wedge wire screen, stainless steel wire mesh and the other related products. We have our own import and export rights, and we have already passed the ISO 9001:2000 certificate and CE certificate.
