12 Way Plastic Terminal Connector
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
SG
Model Number:
W/U,H,F/V TYPE, Terminal Connector
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB NB/SH
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Button Switch Push Button Switch Push Button Switches NO+NCNegotiableMOQ: 1 Unit -
SGEMT2 -CONNECTORNegotiableMOQ: 50000 Pieces
-
XB2-B Series All Types of Button Push Button Switch Mushroom Push Button Switch Micro SwitchNegotiableMOQ: 500 Units
-
Push Button Switch XB2-B Series All Types of Button Push Button Switch Latching Push Button SwitchNegotiableMOQ: 500 Units
-
XB2-B Series All Types of Button Push Button Switch Mushroom Push Button SwitchNegotiableMOQ: 500 Units
Place of Origin
Jiangxi, China
Brand Name
SG
Model Number
W/U,H,F/V TYPE, Terminal Connector
Type
Other, SCREW
Specifications
Type: Screw TerminalW/U,H,F/V TYPE 3A-150A
Terminal Connector
Product Description
Product Description
Specifications
HFW Plastic Terminal Connector
1:H,U(W),V(F) types
2:Material: made from PA, PE or PP.
3:Color: white,black,transparent
HFW terminal connector for cable:
1:H,U(W),V(F) types 2:Material: made from PA, PE or PP. 3:Color: white,black,transparent
4:The sizes: 4mm2,6mm2,10mm2,12mm2,14mm2,16mm2,20mm2,25mm2,35mm2,40mm2
5:Current: 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
6:Colours: milk-white, black,transparent
7.Brass insert and Steel screw
8.Voltage: 250- 400V
9.Current : 3A - 150A
10.Cable wire : 2.5mm2 - 45mm2
11.Working Temperature : - 40oC to 110oC

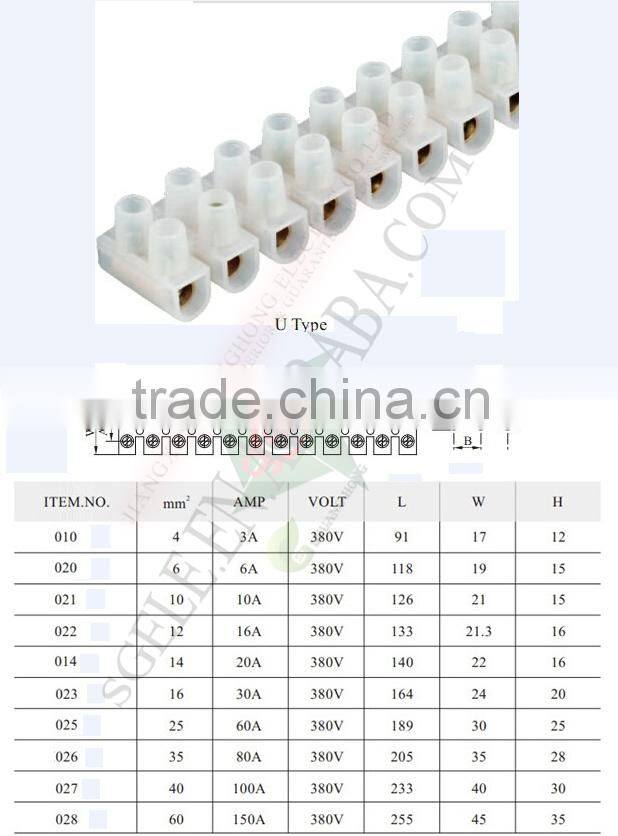

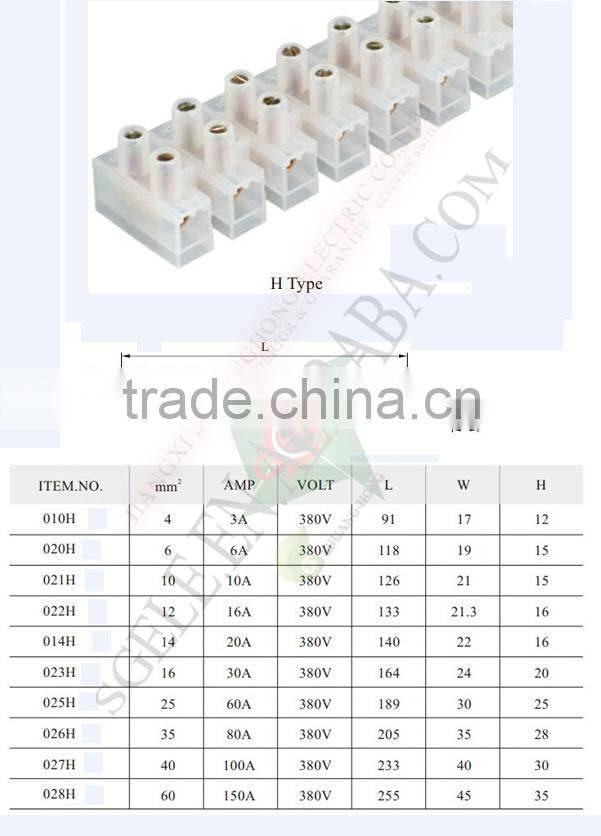

Technical Data:
| Spec. | mm | ||
| Length | Width | High | |
| 3A-4mm2 | 96 | 14.8 | 12 |
| 3A-4mm2 | 88 | 15 | 11 |
| 6A-6mm2 | 106 | 18 | 14.5 |
| 6A-6mm2 | 102 | 17.5 | 13 |
| 10A-10mm2 | 120 | 19 | 13 |
| 10A-10mm2 | 110 | 17 | 13 |
| 30A-16mm2 | 162 | 24 | 23 |
| 30A-16mm2 | 158 | 21 | 15.5 |
| 60A-25mm2 | 195 | 33 | 25.5 |
| 60A-25mm2 | 174 | 26 | 22.5 |
| 80A-35mm2 | 226.8 | 36.1 | 29 |
| 100A-40mm2 | 250 | 40 | 33 |
| 150-45mm2 | 254.6 | 45 | 35 |
